Sanitary Weld Concentric Reducers
Sanitary Weld Concentric Reducers

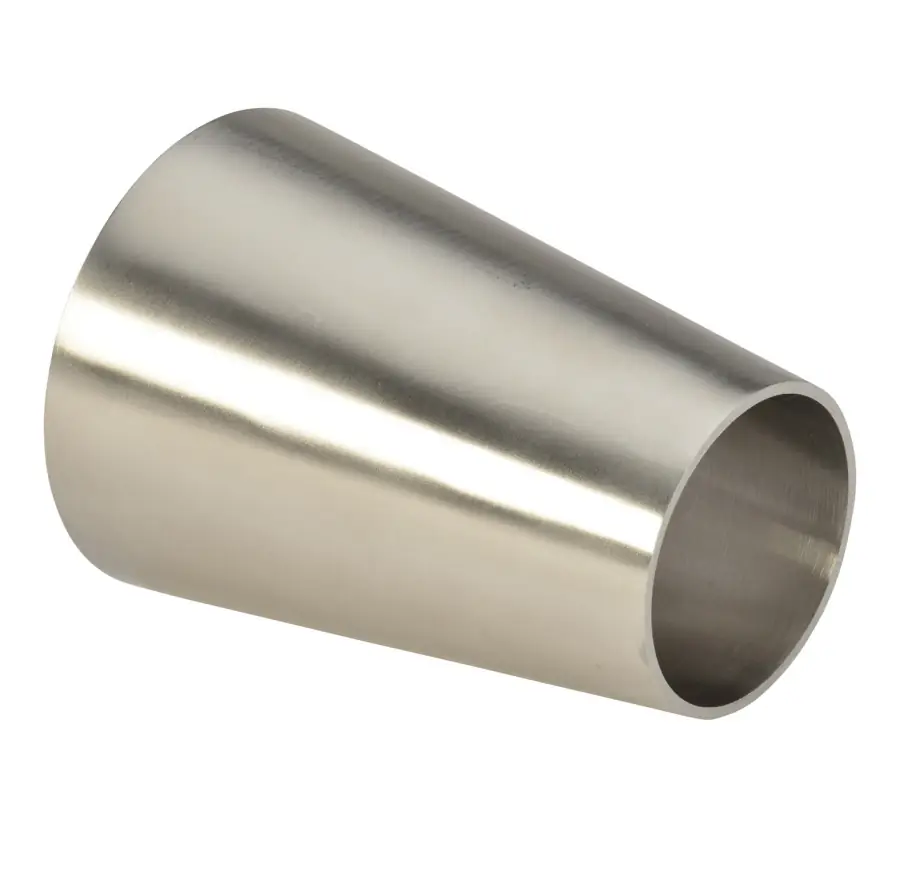

The product table below lists 304 and 316L stainless steel sanitary weld concentric reducers with weld, clamp × weld and bevel × weld ends, from 3/4" × 1/2" to 6" × 4". Dimension charts follow the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
Stainless steel sanitary weld concentric reducers are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes.Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 3/4 | Concentric Reducer | Weld | 1/2 | 316 Stainless Steel | $72.99 | | ||
| 1 | Concentric Reducer | Weld | 1/2 | 316 Stainless Steel | $67.53 | | ||
| 1 | Concentric Reducer | Weld | 3/4 | 316 Stainless Steel | $54.48 | | ||
| 1 1/2 | Concentric Reducer | Weld | 1 1/4 | 316 Stainless Steel | $94.98 | | ||
| 1 1/2 | Concentric Reducer | Bevel x Weld | 1 | 304 Stainless Steel | $69.07 | | ||
| 1 1/2 | Concentric Reducer | Bevel x Weld | 1 | 316 Stainless Steel | $76.26 | | ||
| 1 1/2 | Concentric Reducer | Clamp x Weld | 1 | 304 Stainless Steel | $63.96 | | ||
| 1 1/2 | Concentric Reducer | Clamp x Weld | 1 | 316 Stainless Steel | $76.26 | | ||
| 1 1/2 | Concentric Reducer | Weld | 1 | 304 Stainless Steel | $23.56 | | ||
| 1 1/2 | Concentric Reducer | Weld | 1 | 316 Stainless Steel | $28.81 | | ||
| 1 1/2 | Concentric Reducer | Weld | 1/2 | 316 Stainless Steel | $98.69 | | ||
| 1 1/2 | Concentric Reducer | Weld | 3/4 | 316 Stainless Steel | $80.62 | | ||
| 2 | Concentric Reducer | Bevel x Weld | 1 1/2 | 304 Stainless Steel | $98.04 | | ||
| 2 | Concentric Reducer | Bevel x Weld | 1 1/2 | 316 Stainless Steel | $104.58 | | ||
| 2 | Concentric Reducer | Clamp x Weld | 1 1/2 | 304 Stainless Steel | $75.16 | | ||
| 2 | Concentric Reducer | Clamp x Weld | 1 1/2 | 316 Stainless Steel | $104.58 | | ||
| 2 | Concentric Reducer | Weld | 1 1/2 | 304 Stainless Steel | $24.62 | | ||
| 2 | Concentric Reducer | Weld | 1 1/2 | 316 Stainless Steel | $33.51 | | ||
| 2 | Concentric Reducer | Weld | 1 1/4 | 316 Stainless Steel | $130.72 | | ||
| 2 | Concentric Reducer | Weld | 1 | 304 Stainless Steel | $43.51 | | ||
| 2 | Concentric Reducer | Weld | 1 | 316 Stainless Steel | $62.54 | | ||
| 2 1/2 | Concentric Reducer | Bevel x Weld | 1 1/2 | 304 Stainless Steel | $88.35 | | ||
| 2 1/2 | Concentric Reducer | Bevel x Weld | 1 1/2 | 316 Stainless Steel | $113.31 | | ||
| 2 1/2 | Concentric Reducer | Clamp x Weld | 1 1/2 | 304 Stainless Steel | $82.80 | | ||
| 2 1/2 | Concentric Reducer | Clamp x Weld | 1 1/2 | 316 Stainless Steel | $113.31 | |
Product Info
We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld concentric reducers to meet your specifications. View our full line of stainless steel products.Dimensions

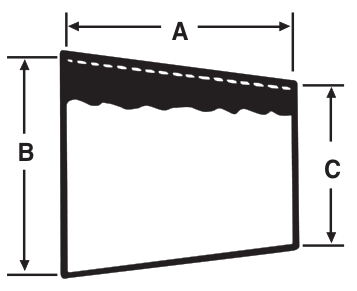

Dimensions in inches, from our sanitary weld data sheet. The column letters are the ones on the drawing.
Each chart uses its own drawing's letters. Our data sheet calls the bevel × weld reducer (E31PW) a plain bevel × weld reducer.
Charts on this page: Weld · Clamp × Weld · Bevel × Weld
Weld
| Tube OD | A | B | C | Nom. Wall |
|---|---|---|---|---|
| 3/4" × 1/2" | * | 0.750 | 0.500 | 0.065 |
| 1" × 1/2" | * | 1.000 | 0.500 | 0.065 |
| 1" × 3/4" | * | 1.000 | 0.750 | 0.065 |
| 1-1/2" × 1/2" | * | 1.500 | 0.500 | 0.065 |
| 1-1/2" × 3/4" | * | 1.500 | 0.750 | 0.065 |
| 1-1/2" × 1" | 2.000 | 1.500 | 1.000 | 0.065 |
| 1-1/2" × 1-1/4" | 1.000 | 1.500 | 1.250 | 0.065 |
| 2" × 1" | 4.000 | 2.000 | 1.000 | 0.065 |
| 2" × 1-1/4" | 3.000 | 2.000 | 1.250 | 0.065 |
| 2" × 1-1/2" | 2.000 | 2.000 | 1.500 | 0.065 |
| 2-1/2" × 1-1/2" | 4.000 | 2.500 | 1.500 | 0.065 |
| 2-1/2" × 2" | 2.000 | 2.500 | 2.000 | 0.065 |
| 3" × 1-1/2" | 6.000 | 3.000 | 1.500 | 0.065 |
| 3" × 2" | 4.000 | 3.000 | 2.000 | 0.065 |
| 3" × 2-1/2" | 2.000 | 3.000 | 2.500 | 0.065 |
| 4" × 2" | 8.000 | 4.000 | 2.000 | 0.083 × .065 |
| 4" × 2-1/2" | 6.000 | 4.000 | 2.500 | 0.083 × .065 |
| 4" × 3" | 4.000 | 4.000 | 3.000 | 0.083 × .065 |
| 6" × 2" | 5.500 | 6.000 | 2.000 | 0.109 × .065 |
| 6" × 3" | 5.500 | 6.000 | 3.000 | 0.109 × .065 |
| 6" × 4" | 5.500 | 6.000 | 4.000 | 0.109 × .083 |
Swipe the chart sideways to see every column.
* Contact us for dimensions.
Where the wall shows two values, they go with the two sizes in order (for example 4" × 2": 0.083 × .065).
Scroll inside the chart to see every size.

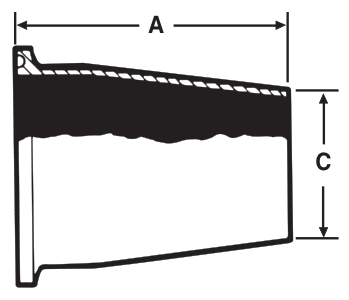

Clamp × Weld
| Tube OD | A | C | Nom. Wall |
|---|---|---|---|
| 1-1/2" × 1" | 2.500 | 1.000 | 0.065 |
| 2" × 1-1/2" | 2.500 | 1.500 | 0.065 |
| 2-1/2" × 1-1/2" | 4.500 | 1.500 | 0.065 |
| 2-1/2" × 2" | 2.500 | 2.000 | 0.065 |
| 3" × 2" | 4.500 | 2.000 | 0.065 |
| 3" × 2-1/2" | 2.500 | 2.500 | 0.065 |
| 4" × 2" | 8.625 | 2.000 | 0.065 |
| 4" × 2-1/2" | 6.625 | 2.500 | 0.065 |
| 4" × 3" | 4.625 | 3.000 | 0.065 |
| 6" × 4" | 6.375 | 4.000 | 0.083 |

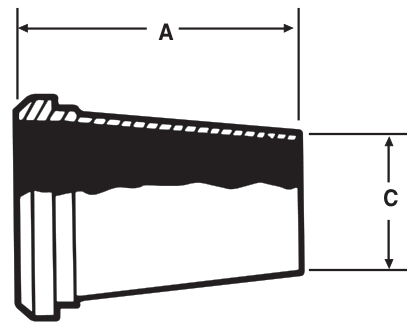

Bevel × Weld
| Tube OD | A | C | Nom. Wall |
|---|---|---|---|
| 1-1/2" × 1" | 2.687 | 1.000 | 0.065 |
| 2" × 1-1/2" | 2.718 | 1.500 | 0.065 |
| 2-1/2" × 1-1/2" | 4.843 | 1.500 | 0.065 |
| 2-1/2" × 2" | 2.843 | 2.000 | 0.065 |
| 3" × 2" | 4.937 | 2.000 | 0.065 |
| 3" × 2-1/2" | 2.937 | 2.500 | 0.065 |
| 4" × 2" | 9.000 | 2.000 | 0.065 |
| 4" × 2-1/2" | 7.000 | 2.500 | 0.065 |
| 4" × 3" | 5.000 | 3.000 | 0.065 |
Standard Specifications
We offer stainless steel sanitary weld concentric reducers in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld concentric reducers. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld concentric reducers with weld, clamp × weld and bevel × weld ends.Frequently Asked Questions
What sizes of sanitary weld concentric reducers do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary weld concentric reducers with weld, clamp × weld and bevel × weld ends, from 3/4" × 1/2" to 6" × 4". Some sizes come in 316L only (3/4" × 1/2", 1" × 1/2", 1" × 3/4", 1-1/2" × 1/2", 1-1/2" × 3/4", 1-1/2" × 1-1/4", 2" × 1-1/4"). For other sizes or alloys, call (800) 282-9694 or send us a message.
What is the difference between a concentric and an eccentric reducer?
A concentric reducer keeps both ends on the same centerline; an eccentric reducer is flat along one side. See our sanitary weld eccentric reducers.
Why do some sizes show * in the chart?
Our data sheet prints * for those dimensions with the note "Contact us for dimensions"; call us for them.
Why does this page have three charts?
Our data sheet has a separate chart, with its own drawing, for each end connection of these reducers. Each chart uses the letters on its own drawing.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
