150 lb Stainless Steel Cast Street 90 Elbows
150 lb Stainless Steel Cast Street 90 Elbows

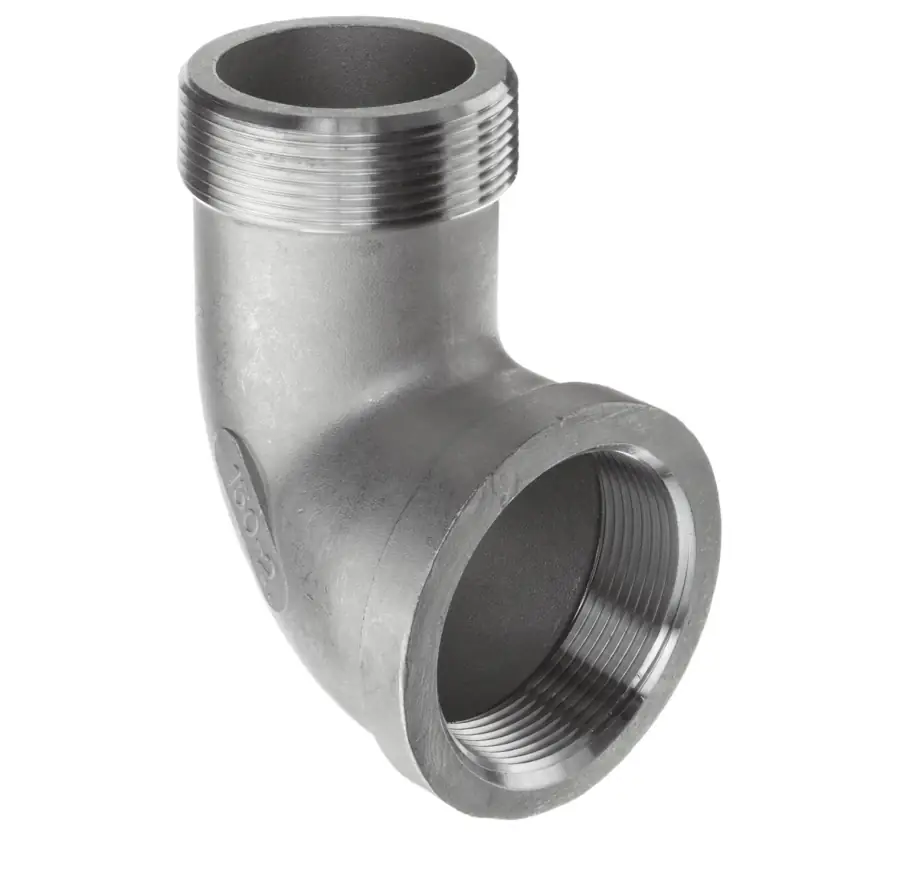

The product table below lists 304 and 316 stainless steel 150 lb cast street 90 degree elbows, threaded (NPT) from 1/8" to 4". A dimension chart follows the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
We house a very large inventory of 150 lb stainless steel cast street 90 degree elbows. Our stainless steel cast pipe elbows are of high quality and offer great resistance to corrosion.Pressure: Class 150
End Connections: Threaded - Socket Weld
Alloys: Aluminum - Carbon - Stainless
Filter Products
Size | Product Type | Reducing | Pressure | End Type | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1/8 | Street 90 | 150# | Threaded | 304 Stainless | $4.17 | | |||
| 1/8 | Street 90 | 150# | Threaded | 316 Stainless | $4.99 | | |||
| 1/4 | Street 90 | 150# | Threaded | 304 Stainless | $4.17 | | |||
| 1/4 | Street 90 | 150# | Threaded | 316 Stainless | $5.10 | | |||
| 3/8 | Street 90 | 150# | Threaded | 316 Stainless | $6.28 | | |||
| 3/8 | Street 90 | 150# | Threaded | 304 Stainless | $5.00 | | |||
| 1/2 | Street 90 | 150# | Threaded | 316 Stainless | $7.37 | | |||
| 1/2 | Street 90 | 150# | Threaded | 304 Stainless | $5.90 | | |||
| 3/4 | Street 90 | 150# | Threaded | 304 Stainless | $8.19 | | |||
| 3/4 | Street 90 | 150# | Threaded | 316 Stainless | $9.72 | | |||
| 1 | Street 90 | 150# | Threaded | 304 Stainless | $14.17 | | |||
| 1 | Street 90 | 150# | Threaded | 316 Stainless | $15.55 | | |||
| 1 1/4 | Street 90 | 150# | Threaded | 304 Stainless | $20.58 | | |||
| 1 1/4 | Street 90 | 150# | Threaded | 316 Stainless | $23.22 | | |||
| 1 1/2 | Street 90 | 150# | Threaded | 304 Stainless | $24.36 | | |||
| 1 1/2 | Street 90 | 150# | Threaded | 316 Stainless | $25.89 | | |||
| 2 | Street 90 | 150# | Threaded | 304 Stainless | $32.94 | | |||
| 2 | Street 90 | 150# | Threaded | 316 Stainless | $36.94 | | |||
| 2 1/2 | Street 90 | 150# | Threaded | 304 Stainless | $69.62 | | |||
| 2 1/2 | Street 90 | 150# | Threaded | 316 Stainless | $86.14 | | |||
| 3 | Street 90 | 150# | Threaded | 304 Stainless | $92.40 | | |||
| 3 | Street 90 | 150# | Threaded | 316 Stainless | $111.66 | | |||
| 4 | Street 90 | 150# | Threaded | 304 Stainless | $179.88 | | |||
| 4 | Street 90 | 150# | Threaded | 316 Stainless | $220.52 | |
Product Info
Our 150 lb stainless steel cast street 90 degree elbows come in a variety of sizes to meet almost any stainless steel piping configuration. Our high quality SS 150 lb cast elbows meet the highest standards. We inventory a variety of stainless steel cast elbows. View our stainless products line card.Dimensions

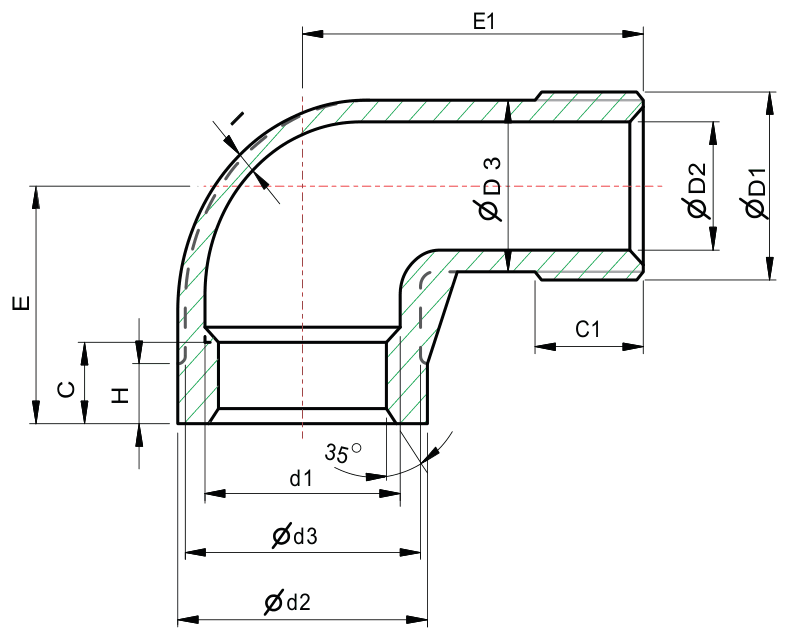

Dimensions in inches, from our data sheet. The column letters are the ones on the drawing.
| Size | d1 | d2 | d3 | C | E | H | D1 | D2 | D3 | C1 | E1 | I |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8" | 1/8" | 0.59 | 0.47 | 0.28 | 0.71 | 0.20 | 1/8" | 0.20 | 0.35 | 0.31 | 1.02 | 0.08 |
| 1/4" | 1/4" | 0.71 | 0.59 | 0.41 | 0.87 | 0.20 | 1/4" | 0.24 | 0.47 | 0.43 | 1.22 | 0.08 |
| 3/8" | 3/8" | 0.89 | 0.79 | 0.41 | 0.87 | 0.24 | 3/8" | 0.35 | 0.55 | 0.43 | 1.54 | 0.08 |
| 1/2" | 1/2" | 1.10 | 1.02 | 0.39 | 1.06 | 0.31 | 1/2" | 0.55 | 0.75 | 0.51 | 1.61 | 0.08 |
| 3/4" | 3/4" | 1.42 | 1.30 | 0.47 | 1.30 | 0.35 | 3/4" | 0.79 | 0.98 | 0.51 | 1.85 | 0.08 |
| 1" | 1" | 1.77 | 1.65 | 0.55 | 1.46 | 0.35 | 1" | 0.98 | 1.22 | 0.73 | 2.09 | 0.08 |
| 1-1/4" | 1-1/4" | 2.05 | 1.97 | 0.67 | 1.73 | 0.43 | 1-1/4" | 1.30 | 1.56 | 0.75 | 2.48 | 0.10 |
| 1-1/2" | 1-1/2" | 2.36 | 2.24 | 0.67 | 1.85 | 0.43 | 1-1/2" | 1.57 | 1.83 | 0.75 | 2.72 | 0.10 |
| 2" | 2" | 2.87 | 2.72 | 0.71 | 2.32 | 0.51 | 2" | 1.97 | 2.24 | 0.85 | 3.15 | 0.10 |
| 2-1/2" | 2-1/2" | 3.54 | 3.39 | 0.91 | 2.60 | 0.59 | 2-1/2" | 2.24 | 2.60 | 0.94 | 4.13 | 0.16 |
| 3" | 3" | 4.17 | 3.98 | 0.94 | 3.09 | 0.65 | 3" | 2.91 | 3.19 | 1.14 | 4.45 | 0.16 |
| 4" | 4" | 5.14 | 5.04 | 1.02 | 3.86 | 0.77 | 4" | 3.82 | 4.17 | 1.34 | 5.12 | 0.16 |
Standard Specifications
150lb cast elbows generally conform to ASA B16.3 and pipe threads conform to ASA B2.1 standard for manufacturing. View the standard specifications chart.Stainless Steel Grades
View stainless steel grades of 150lb cast elbows available from Shaw Stainless. Review the functionality and application of various grades of stainless steel.Reference Catalog
We designed a resourceful tool to help identify the many different products and services we offer. This Reference Catalog will identify stainless steel 150lb cast elbows and other pipe fittings through specification charts and illustrations.Additional Info
A 150 lb stainless steel cast elbow is a fitting that attaches two pieces of pipe or tube to allow a change in direction of the piping system. 150lb cast elbows are offered in various degrees of angles. The most common angles are 45 and 90 degree elbows. Stainless steel cast elbows are manufactured by heating stainless steel to a molten/liquid state and pouring the metal into a form that creates the desired shape.Frequently Asked Questions
What sizes of 150 lb cast street 90 elbows do you carry?
The product table on this page lists 304 and 316 stainless steel 150 lb cast street 90° elbows: threaded (NPT) from 1/8" to 4". For other sizes or alloys, call (800) 282-9694 or send us a message.
What is a street 90 elbow?
A 90° elbow with one female (inside-threaded) end and one male (outside-threaded) end, so it can thread straight into another fitting. See our 150 lb cast 90 degree elbows for elbows with two female ends.
What do E and E1 mean in the street elbow chart?
E is the center-to-end distance of the female end and E1 of the male end. A 1" street 90° elbow measures 1.46" (E) and 2.09" (E1).
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
