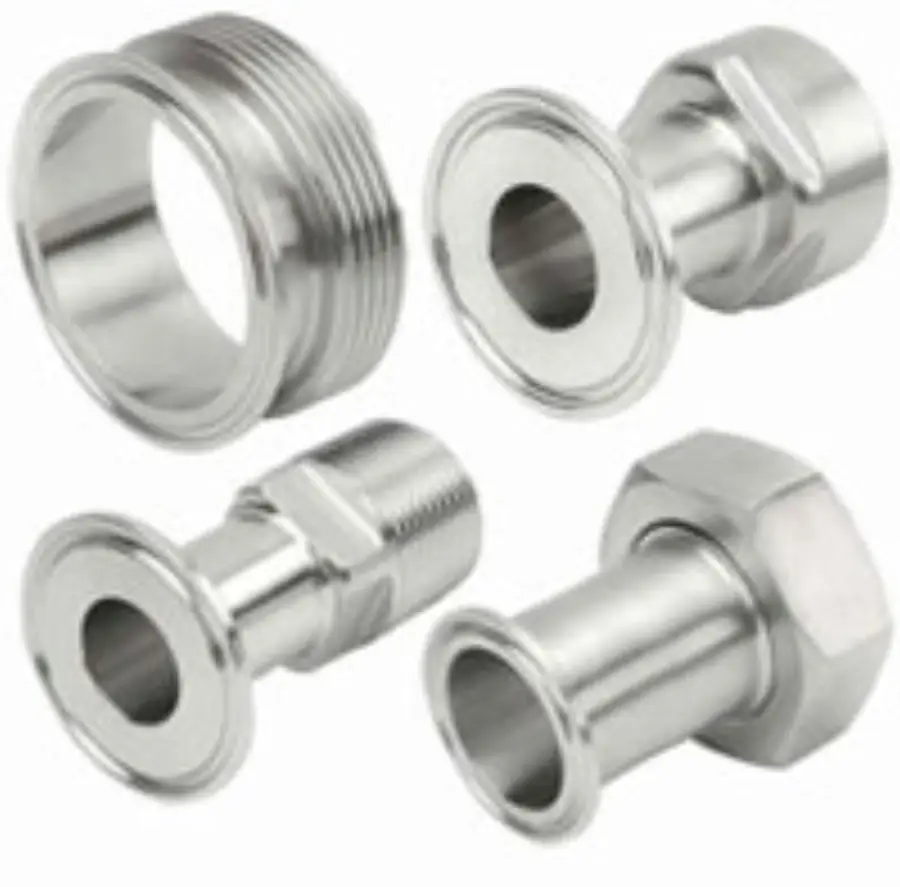

The product table below lists 304 and 316L stainless steel sanitary clamp adapters with clamp × bevel, clamp × thread, clamp × male NPT and clamp × female NPT ends, from 1" to 6". Dimension charts follow the table.
Get a price: the product table below lists prices, and items that show "Quote" are priced on request; for those, or for a size or grade that is not listed, call (800) 282-9694 or send us a message.
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for clamp fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Sanitary clamp fittings meet all 3A requirements.End Connections: Clamp x Bevel - Clamp x Thread - Clamp x Male NPT - Clamp x Female NPT
Grades: 304 - 316L
Filter Products
Tube OD | Product Type | End Type | Alt Size | Material | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 | Adapter | Clamp x Bevel | 304 Stainless Steel | $83.14 | | |||
| 1 | Adapter | Clamp x Bevel | 316 Stainless Steel | $149.02 | | |||
| 1 | Adapter | Clamp x Female NPT | 304 Stainless Steel | $52.48 | | |||
| 1 | Adapter | Clamp x Female NPT | 316 Stainless Steel | $64.48 | | |||
| 1 | Adapter | Clamp x Male NPT | 304 Stainless Steel | $52.60 | | |||
| 1 | Adapter | Clamp x Male NPT | 316 Stainless Steel | $64.48 | | |||
| 1 | Adapter | Clamp x Thread | 304 Stainless Steel | $48.34 | | |||
| 1 | Adapter | Clamp x Thread | 316 Stainless Steel | $73.05 | | |||
| 1 1/4 | Adapter | Clamp x Female NPT | 316 Stainless Steel | | ||||
| 1 1/4 | Adapter | Clamp x Male NPT | 316 Stainless Steel | $193.91 | | |||
| 1 1/2 | Adapter | Clamp x Bevel | 304 Stainless Steel | $77.16 | | |||
| 1 1/2 | Adapter | Clamp x Bevel | 316 Stainless Steel | $113.73 | | |||
| 1 1/2 | Adapter | Clamp x Female NPT | 304 Stainless Steel | $54.49 | | |||
| 1 1/2 | Adapter | Clamp x Female NPT | 316 Stainless Steel | $67.05 | | |||
| 1 1/2 | Adapter | Clamp x Male NPT | 304 Stainless Steel | $54.16 | | |||
| 1 1/2 | Adapter | Clamp x Male NPT | 316 Stainless Steel | $67.05 | | |||
| 1 1/2 | Adapter | Clamp x Thread | 304 Stainless Steel | $47.26 | | |||
| 1 1/2 | Adapter | Clamp x Thread | 316 Stainless Steel | $70.59 | | |||
| 2 | Adapter | Clamp x Bevel | 304 Stainless Steel | $99.02 | | |||
| 2 | Adapter | Clamp x Bevel | 316 Stainless Steel | $145.09 | | |||
| 2 | Adapter | Clamp x Female NPT | 304 Stainless Steel | $63.53 | | |||
| 2 | Adapter | Clamp x Female NPT | 316 Stainless Steel | $92.79 | | |||
| 2 | Adapter | Clamp x Male NPT | 304 Stainless Steel | $62.82 | | |||
| 2 | Adapter | Clamp x Male NPT | 316 Stainless Steel | $92.79 | | |||
| 2 | Adapter | Clamp x Thread | 304 Stainless Steel | $58.73 | |
Product Info
We house a huge inventory of sanitary clamp fittings in 304 and 316L stainless steel. From adapters and elbows to clamps and ferrules, we have a complete inventory of stainless steel sanitary clamp adapters to meet your specified needs. View our full line of stainless steel products.Dimensions
Dimensions in inches, from our sanitary clamp fitting data sheet. The columns use the letters on the drawing. Each chart uses its own drawing's letters.
Charts on this page: Clamp × Bevel Ferrule With Nut · Clamp × Thread · Clamp × Male NPT · Clamp × Female NPT
Clamp × Bevel Ferrule With Nut
| Tube OD | A |
|---|---|
| 1" | 2.500 |
| 1-1/2" | 2.625 |
| 2" | 2.625 |
| 2-1/2" | 2.875 |
| 3" | 2.875 |
| 4" | 2.875 |
Clamp × Thread
| Tube OD | A |
|---|---|
| 1" | 1.187 |
| 1-1/2" | 1.187 |
| 2" | 1.218 |
| 2-1/2" | 1.343 |
| 3" | 1.437 |
| 4" | 2.125 |
Clamp × Male NPT
| Tube OD | A |
|---|---|
| 1" | 2.875 |
| 1-1/4" | 2.875 |
| 1-1/2" | 2.875 |
| 2" | 2.937 |
| 2-1/2" | 3.437 |
| 3" | 3.625 |
| 4" | 3.812 |
| 6" | 4.875 |
1 inch through 4 inch are supplied with wrench flats
Clamp × Female NPT
| Tube OD | A |
|---|---|
| 1" | 2.250 |
| 1-1/4" | 2.562 |
| 1-1/2" | 2.562 |
| 2" | 2.562 |
| 2-1/2" | 2.750 |
| 3" | 2.937 |
| 4" | 3.125 |
1 inch through 4 inch are supplied with wrench flats
Standard Specifications
We offer stainless steel sanitary clamp adapters in a variety of sizes and specifications.Stainless Steel Grades
Check out our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our SS products including our stainless steel sanitary clamp adapters. Specification charts and general dimensional illustrations aid in identifying products. Some dimensions in the Reference Catalog differ from the charts on this page.Additional Info
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for Clamp Fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Clamp Fittings meet all 3A requirements.Frequently Asked Questions
What sizes of sanitary clamp adapters do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary clamp adapters with clamp × bevel, clamp × thread, clamp × male NPT and clamp × female NPT ends, from 1" to 6". The 1-1/4" size comes in 316L only. For other sizes or grades, call (800) 282-9694 or send us a message.
Why does this page have four charts?
Our data sheet has a separate chart, with its own drawing, for each end connection of these adapters. Each chart uses the letters on its own drawing.
Do the NPT adapters have wrench flats?
Our data sheet says, for the male and female NPT adapters: "1 inch through 4 inch are supplied with wrench flats".
How do I get a price?
Prices are listed in the product table on this page; items that show "Quote" are priced on request. For those, or for a size or grade that is not listed, call (800) 282-9694 or send us a message.
