Sanitary Clamp Concentric Reducers
Sanitary Clamp Concentric Reducers
The product table below lists 304 and 316L stainless steel sanitary clamp concentric reducers with clamp, clamp × thread, thread × clamp, clamp × hex nut and hex nut × clamp ends, in 21 size combinations, from 3/4" × 1/2" to 6" × 4". Dimension charts follow the table.
Get a price: the product table below lists prices, and items that show "Quote" are priced on request; for those, or for a size or grade that is not listed, call (800) 282-9694 or send us a message.

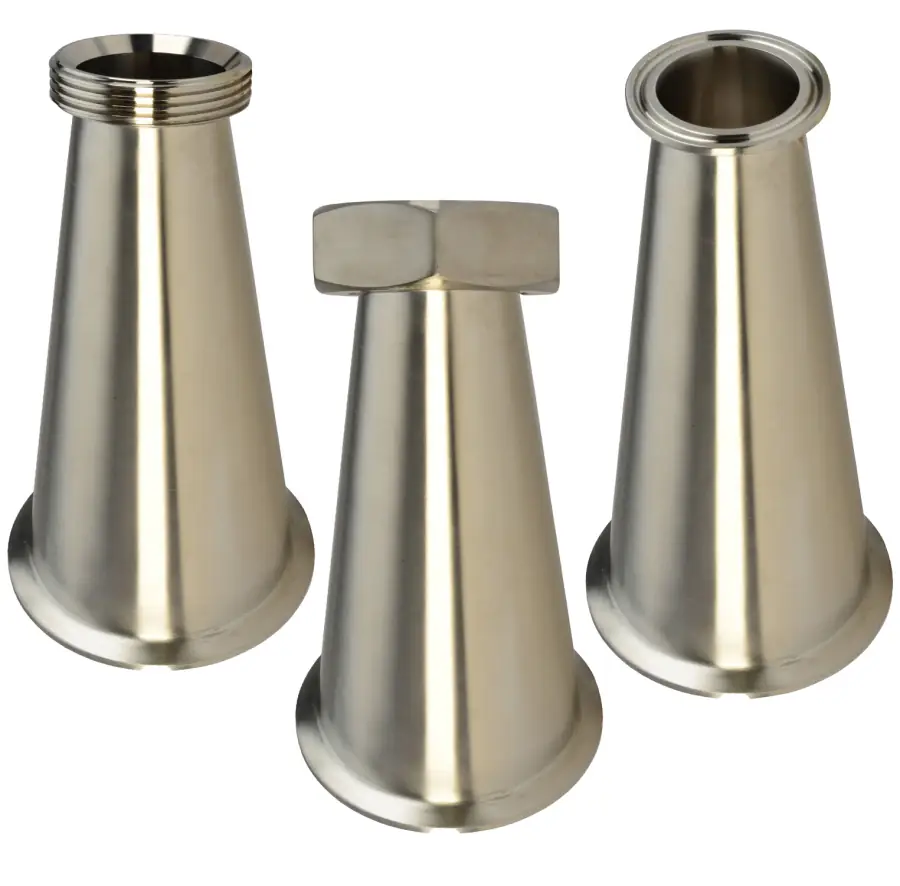

Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for clamp fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Sanitary clamp fittings meet all 3A requirements.End Connections: Clamp - Clamp x Thread - Thread x Clamp - Clamp x Hex Nut - Hex Nut x Clamp
Grades: 304 - 316L
Filter Products
Tube OD | Product Type | End Type | Alt Size | Material | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 3/4 | Concentric Reducer | Clamp | 1/2 | 316 Stainless Steel | $115.68 | | ||
| 1 | Concentric Reducer | Clamp | 1/2 | 316 Stainless Steel | $103.51 | | ||
| 1 | Concentric Reducer | Clamp | 3/4 | 316 Stainless Steel | $128.55 | | ||
| 1 1/2 | Concentric Reducer | Clamp | 1 1/4 | 304 Stainless Steel | | |||
| 1 1/2 | Concentric Reducer | Clamp | 1 1/4 | 316 Stainless Steel | | |||
| 1 1/2 | Concentric Reducer | Hex Nut x Clamp | 1 | 304 Stainless Steel | $154.69 | | ||
| 1 1/2 | Concentric Reducer | Hex Nut x Clamp | 1 | 316 Stainless Steel | $162.33 | | ||
| 1 1/2 | Concentric Reducer | Clamp | 1 | 304 Stainless Steel | $45.75 | | ||
| 1 1/2 | Concentric Reducer | Clamp | 1 | 316 Stainless Steel | $50.12 | | ||
| 1 1/2 | Concentric Reducer | Clamp x Hex Nut | 1 | 304 Stainless Steel | $154.69 | | ||
| 1 1/2 | Concentric Reducer | Clamp x Hex Nut | 1 | 316 Stainless Steel | $162.33 | | ||
| 1 1/2 | Concentric Reducer | Clamp x Thread | 1 | 304 Stainless Steel | $110.04 | | ||
| 1 1/2 | Concentric Reducer | Clamp x Thread | 1 | 316 Stainless Steel | $178.67 | | ||
| 1 1/2 | Concentric Reducer | Thread x Clamp | 1 | 304 Stainless Steel | $110.04 | | ||
| 1 1/2 | Concentric Reducer | Thread x Clamp | 1 | 316 Stainless Steel | $178.67 | | ||
| 1 1/2 | Concentric Reducer | Clamp | 1/2 | 316 Stainless Steel | $148.15 | | ||
| 1 1/2 | Concentric Reducer | Clamp | 3/4 | 316 Stainless Steel | $148.15 | | ||
| 2 | Concentric Reducer | Hex Nut x Clamp | 1 1/2 | 304 Stainless Steel | $171.80 | | ||
| 2 | Concentric Reducer | Hex Nut x Clamp | 1 1/2 | 316 Stainless Steel | $233.13 | | ||
| 2 | Concentric Reducer | Clamp | 1 1/2 | 304 Stainless Steel | $48.82 | | ||
| 2 | Concentric Reducer | Clamp | 1 1/2 | 316 Stainless Steel | $53.31 | | ||
| 2 | Concentric Reducer | Clamp x Hex Nut | 1 1/2 | 304 Stainless Steel | $171.80 | | ||
| 2 | Concentric Reducer | Clamp x Hex Nut | 1 1/2 | 316 Stainless Steel | $233.13 | | ||
| 2 | Concentric Reducer | Clamp x Thread | 1 1/2 | 304 Stainless Steel | $117.65 | | ||
| 2 | Concentric Reducer | Clamp x Thread | 1 1/2 | 316 Stainless Steel | $196.08 | |
Product Info
We house a huge inventory of sanitary clamp fittings in 304 and 316L stainless steel. From adapters and elbows to clamps and ferrules, we have a complete inventory of stainless steel sanitary clamp concentric reducers to meet your specified needs. View our full line of stainless steel products.Dimensions
Dimensions in inches, from our sanitary clamp fitting data sheet. The columns use the letters on the drawing. Each chart uses its own drawing's letters.
Charts on this page: Clamp · Hex Nut × Clamp · Clamp × Hex Nut · Thread × Clamp · Clamp × Thread
Clamp
| Tube OD | A |
|---|---|
| 3/4" × 1/2" | 2.000 |
| 1" × 1/2" | 2.000 |
| 1" × 3/4" | 2.000 |
| 1-1/2" × 1/2" | 3.000 |
| 1-1/2" × 3/4" | 3.000 |
| 1-1/2" × 1" | 3.000 |
| 1-1/2" × 1-1/4" | 2.000 |
| 2" × 1" | 5.000 |
| 2" × 1-1/4" | 2.000 |
| 2" × 1-1/2" | 3.000 |
| 2-1/2" × 1" | 7.000 |
| 2-1/2" × 1-1/2" | 5.000 |
| 2-1/2" × 2" | 3.000 |
| 3" × 1-1/2" | 7.000 |
| 3" × 2" | 5.000 |
| 3" × 2-1/2" | 3.000 |
| 4" × 2" | 9.125 |
| 4" × 2-1/2" | 7.125 |
| 4" × 3" | 5.125 |
| 6" × 3" | 6.875 |
| 6" × 4" | 7.000 |
Scroll inside the chart to see every size.
Hex Nut × Clamp
| Tube OD | A |
|---|---|
| *1-1/2" × 1" | 3.187 |
| 2" × 1" | 5.218 |
| 2" × 1-1/2" | 3.218 |
| 2-1/2" × 1-1/2" | 5.343 |
| 2-1/2" × 2" | 3.343 |
| 3" × 2" | 5.437 |
| 3" × 2-1/2" | 3.437 |
| 4" × 2-1/2" | 7.500 |
| 4" × 3" | 5.500 |
*Hex nut furnished
These items' names say "14 x Clamp" (on each item's page, and in the product table on a phone).
Clamp × Hex Nut
| Tube OD | A |
|---|---|
| 1-1/2" × 1" | 3.875 |
| 2" × 1" | 5.875 |
| 2" × 1-1/2" | 4.000 |
| 2-1/2" × 1-1/2" | 6.000 |
| 2-1/2" × 2" | 4.000 |
| 3" × 2" | 6.000 |
| 3" × 2-1/2" | 4.250 |
| 4" × 2-1/2" | 8.378 |
| 4" × 3" | 6.378 |
Thread × Clamp
| Tube OD | A |
|---|---|
| 1-1/2" × 1" | 3.187 |
| 2" × 1" | 5.218 |
| 2" × 1-1/2" | 3.218 |
| 2-1/2" × 1-1/2" | 5.343 |
| 2-1/2" × 2" | 3.343 |
| 3" × 2" | 5.437 |
| 3" × 2-1/2" | 3.437 |
| 4" × 2-1/2" | 7.500 |
| 4" × 3" | 5.500 |
Clamp × Thread
| Tube OD | A |
|---|---|
| 1-1/2" × 1" | 3.187 |
| 2" × 1" | 5.187 |
| 2" × 1-1/2" | 3.187 |
| 2-1/2" × 1-1/2" | 5.187 |
| 2-1/2" × 2" | 3.218 |
| 3" × 1-1/2" | 7.187 |
| 3" × 2" | 5.218 |
| 3" × 2-1/2" | 3.343 |
| 4" × 2" | 9.343 |
| 4" × 2-1/2" | 7.468 |
| 4" × 3" | 5.562 |
The chart includes sizes on our data sheet that are not in the product table above. Call us for availability.
Standard Specifications
We offer stainless steel sanitary clamp concentric reducers in a variety of sizes and specifications.Stainless Steel Grades
Check out our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our SS products including our stainless steel sanitary clamp concentric reducers. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for Clamp Fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Clamp Fittings meet all 3A requirements.Frequently Asked Questions
What sizes of sanitary clamp concentric reducers do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary clamp concentric reducers with clamp, clamp × thread, thread × clamp, clamp × hex nut and hex nut × clamp ends, in 21 size combinations, from 3/4" × 1/2" to 6" × 4". Some sizes come in 316L only (3/4" × 1/2", 1" × 1/2", 1" × 3/4", 1-1/2" × 1/2", 1-1/2" × 3/4"). For other sizes or grades, call (800) 282-9694 or send us a message.
Why does this page have five charts?
Our data sheet has a separate chart, with its own drawing, for each end connection of these concentric reducers. Each chart uses the letters on its own drawing.
What is the difference between concentric and eccentric reducers?
A concentric reducer keeps both ends on one centerline; on an eccentric reducer the smaller end is offset to one side, as the drawings show. See our sanitary clamp eccentric reducers.
How do I get a price?
Prices are listed in the product table on this page; items that show "Quote" are priced on request. For those, or for a size or grade that is not listed, call (800) 282-9694 or send us a message.
