3000 lb Stainless Steel Forged Crosses
3000 lb Stainless Steel Forged Crosses
The product table below lists 304 and 316 stainless steel 3000 lb forged crosses, threaded and socket weld, from 1/4" to 2". Dimension charts follow the table.
Get a price: the product table below lists prices; for a size, end connection or grade that is not listed, call (800) 282-9694 or send us a message.

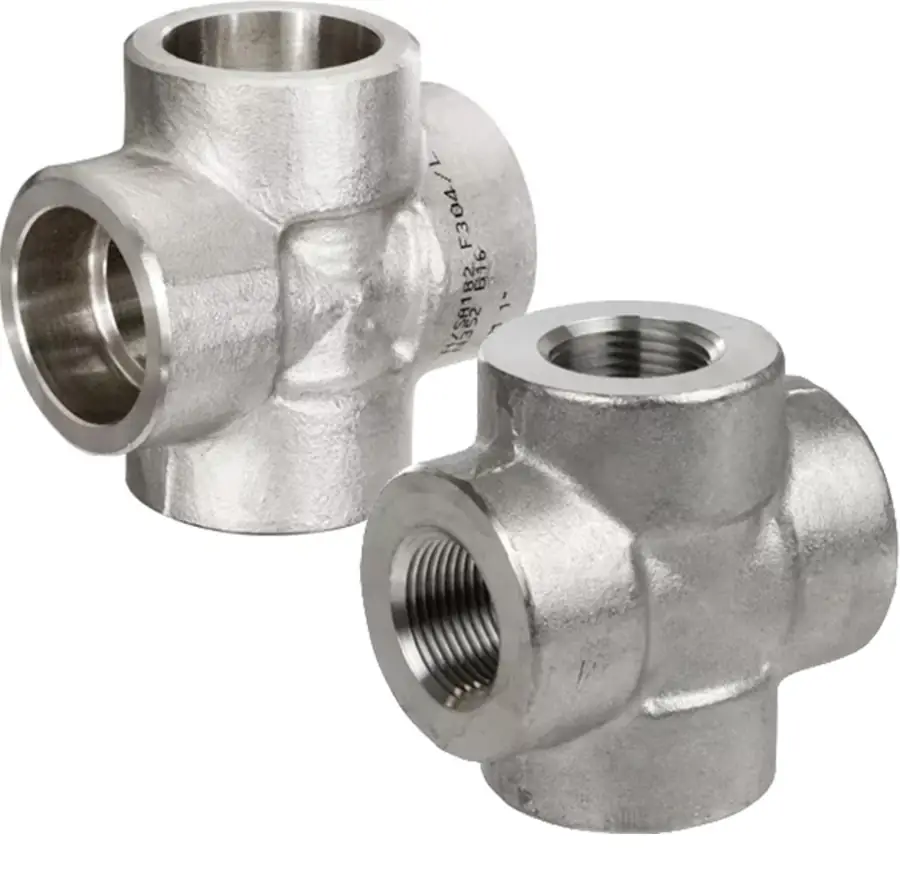

Our quality 3000 lb stainless steel forged crosses are corrosion-resistant and available in various sizes to fit your pipe and pipe fitting specifications.Pressure: Class 3000
End Connections: Threaded - Socket Weld
Grades: 304 - 316
Filter Products
Size | Product Type | Reducing | Pressure | End Type | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | Cross | 3000# | Socket Weld | 304 Stainless | $47.07 | | |||
| 1/4 | Cross | 3000# | Socket Weld | 316 Stainless | $63.93 | | |||
| 1/4 | Cross | 3000# | Threaded | 304 Stainless | $29.19 | | |||
| 1/4 | Cross | 3000# | Threaded | 316 Stainless | $38.61 | | |||
| 3/8 | Cross | 3000# | Socket Weld | 304 Stainless | $58.01 | | |||
| 3/8 | Cross | 3000# | Socket Weld | 316 Stainless | $73.09 | | |||
| 3/8 | Cross | 3000# | Threaded | 304 Stainless | $53.09 | | |||
| 3/8 | Cross | 3000# | Threaded | 316 Stainless | $59.61 | | |||
| 1/2 | Cross | 3000# | Socket Weld | 304 Stainless | $61.54 | | |||
| 1/2 | Cross | 3000# | Socket Weld | 316 Stainless | $96.85 | | |||
| 1/2 | Cross | 3000# | Threaded | 304 Stainless | $62.97 | | |||
| 1/2 | Cross | 3000# | Threaded | 316 Stainless | $89.97 | | |||
| 3/4 | Cross | 3000# | Socket Weld | 304 Stainless | $78.00 | | |||
| 3/4 | Cross | 3000# | Socket Weld | 316 Stainless | $127.10 | | |||
| 3/4 | Cross | 3000# | Threaded | 304 Stainless | $107.79 | | |||
| 3/4 | Cross | 3000# | Threaded | 316 Stainless | $125.33 | | |||
| 1 | Cross | 3000# | Socket Weld | 304 Stainless | $129.90 | | |||
| 1 | Cross | 3000# | Socket Weld | 316 Stainless | $191.13 | | |||
| 1 | Cross | 3000# | Threaded | 304 Stainless | $145.90 | | |||
| 1 | Cross | 3000# | Threaded | 316 Stainless | $183.33 | | |||
| 1 1/4 | Cross | 3000# | Socket Weld | 304 Stainless | $196.34 | | |||
| 1 1/4 | Cross | 3000# | Socket Weld | 316 Stainless | $303.42 | | |||
| 1 1/4 | Cross | 3000# | Threaded | 304 Stainless | $225.45 | | |||
| 1 1/4 | Cross | 3000# | Threaded | 316 Stainless | $297.87 | | |||
| 1 1/2 | Cross | 3000# | Socket Weld | 304 Stainless | $214.78 | |
Product Info
Our 3000 lb stainless steel forged crosses are available in 304 and 316 stainless and offered in a variety of sizes for almost any piping application. View our stainless products line card.Dimensions
Dimensions in inches, from our forged fitting data sheets. The columns use the letters on our drawings; not every drawing marks every letter. The threaded and socket weld drawings use some of the same letters for different dimensions.
Our data sheets print Class 3000 and Class 6000 columns for some dimensions; the charts here show the Class 3000 columns.
Charts on this page: Threaded · Socket Weld
Threaded
| Size | A Center to End | H Band OD | G Wall, Min. | B Thread Length, Min. | L2 Thread Length, Min. |
|---|---|---|---|---|---|
| 1/8" | 0.827 | 0.866 | 0.125 | 0.252 | 0.264 |
| 1/4" | 0.984 | 0.984 | 0.130 | 0.319 | 0.402 |
| 3/8" | 1.102 | 1.299 | 0.138 | 0.358 | 0.409 |
| 1/2" | 1.299 | 1.496 | 0.161 | 0.429 | 0.535 |
| 3/4" | 1.496 | 1.811 | 0.170 | 0.500 | 0.547 |
| 1" | 1.732 | 2.205 | 0.196 | 0.579 | 0.681 |
| 1-1/4" | 2.008 | 2.441 | 0.208 | 0.669 | 0.709 |
| 1-1/2" | 2.362 | 2.953 | 0.219 | 0.701 | 0.724 |
| 2" | 2.520 | 3.307 | 0.281 | 0.748 | 0.756 |
| 2-1/2" | 3.268 | 4.016 | 0.301 | 0.929 | 1.138 |
| 3" | 3.740 | 4.764 | 0.348 | 1.020 | 1.201 |
| 4" | 4.488 | 5.984 | 0.440 | 1.091 | 1.299 |
Swipe the chart sideways to see every column.
The chart includes sizes on our data sheet that are not in the product table above. Call us for availability.
Socket Weld
| Size | B Socket Bore | D Bore | C Socket Wall, Ave. | C Socket Wall, Min. | G Body Wall, Min. | J Socket Depth, Min. | A Center to Bottom of Socket | ± A Tolerance |
|---|---|---|---|---|---|---|---|---|
| 1/8" | 0.441 0.425 | 0.299 0.240 | 0.125 | 0.125 | 0.095 | 0.374 | 0.433 | 0.039 |
| 1/4" | 0.575 0.559 | 0.394 0.335 | 0.149 | 0.130 | 0.119 | 0.374 | 0.433 | 0.039 |
| 3/8" | 0.709 0.693 | 0.524 0.465 | 0.158 | 0.138 | 0.126 | 0.374 | 0.531 | 0.059 |
| 1/2" | 0.874 0.858 | 0.654 0.591 | 0.184 | 0.161 | 0.147 | 0.374 | 0.610 | 0.059 |
| 3/4" | 1.087 1.071 | 0.854 0.795 | 0.193 | 0.168 | 0.154 | 0.492 | 0.748 | 0.059 |
| 1" | 1.350 1.335 | 1.079 1.020 | 0.224 | 0.196 | 0.179 | 0.492 | 0.886 | 0.079 |
| 1-1/4" | 1.697 1.681 | 1.409 1.350 | 0.239 | 0.208 | 0.191 | 0.492 | 1.063 | 0.079 |
| 1-1/2" | 1.937 1.921 | 1.638 1.579 | 0.250 | 0.218 | 0.200 | 0.492 | 1.260 | 0.079 |
| 2" | 2.429 2.409 | 2.098 2.035 | 0.273 | 0.238 | 0.218 | 0.630 | 1.496 | 0.079 |
| 2-1/2" | 2.929 2.909 | 2.528 2.409 | 0.345 | 0.302 | 0.276 | 0.630 | 1.614 | 0.098 |
| 3" | 3.555 3.535 | 3.126 3.008 | 0.375 | 0.327 | 0.300 | 0.630 | 2.244 | 0.098 |
| 4" | 4.555 4.535 | 4.087 3.965 | 0.421 | 0.368 | 0.337 | 0.748 | 2.618 | 0.098 |
Swipe the chart sideways to see every column.
This chart combines our two socket weld data sheets: B, D, C, G, J from the elbow, tee and cross sheet; A and its tolerance from the coupling and cap sheet.
The chart includes sizes on our data sheet that are not in the product table above. Call us for availability.
Where a cell shows two figures, both are printed on our data sheet, which does not label them separately.
Standard Specifications
3000# threaded and socket weld crosses are manufactured in accordance with ASTM A182 for material and ANSI B16.11 for dimensional specifications.Stainless Steel Grades
View various grades of stainless steel.Reference Catalog
Shaw's pipe and tubing products in a stainless steel reference catalog. Identify pipe, tubing and fittings with specification charts and illustrations.Additional Info
A SS cross fitting, or sometimes called a four way fitting, is useful when four pipes come together to combine the same or multiple fluids or gasses in a system of pipes. Fire sprinklers in buildings have four way fittings in their systems.Frequently Asked Questions
What sizes of 3000 lb forged crosses do you carry?
The product table on this page lists 304 and 316 stainless steel 3000 lb forged crosses, threaded and socket weld, from 1/4" to 2". For other sizes or grades, call (800) 282-9694 or send us a message.
What is the center-to-end dimension of a 1" cross?
On our data sheets, a 1" Class 3000 threaded cross measures 1.732" from center to end (A), and a 1" socket weld cross 0.886" from center to the bottom of the socket (A).
Why does this page have two charts?
Our data sheets have threaded and socket weld charts, each with its own drawing. The socket weld chart on this page combines our two socket weld sheets, because the drawings on each sheet use letters from the other. Each chart uses the letters on its own drawing.
What does Class 3000 mean on the charts?
Class 3000 is the pressure class of these fittings (3000# in the product table). Our data sheets give some dimensions for Class 3000 and Class 6000; the charts show the Class 3000 columns.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or grade that is not listed, call (800) 282-9694 or send us a message.
