Sanitary Weld Short Outlet Tees
Sanitary Weld Short Outlet Tees
The product table below lists 304 and 316L stainless steel sanitary weld short outlet tees (weld run × short clamp branch), from 1" to 6". A dimension chart follows the table.
Get a price: these items are priced on request (the product table below shows "Quote"); call (800) 282-9694 or send us a message for a quote.

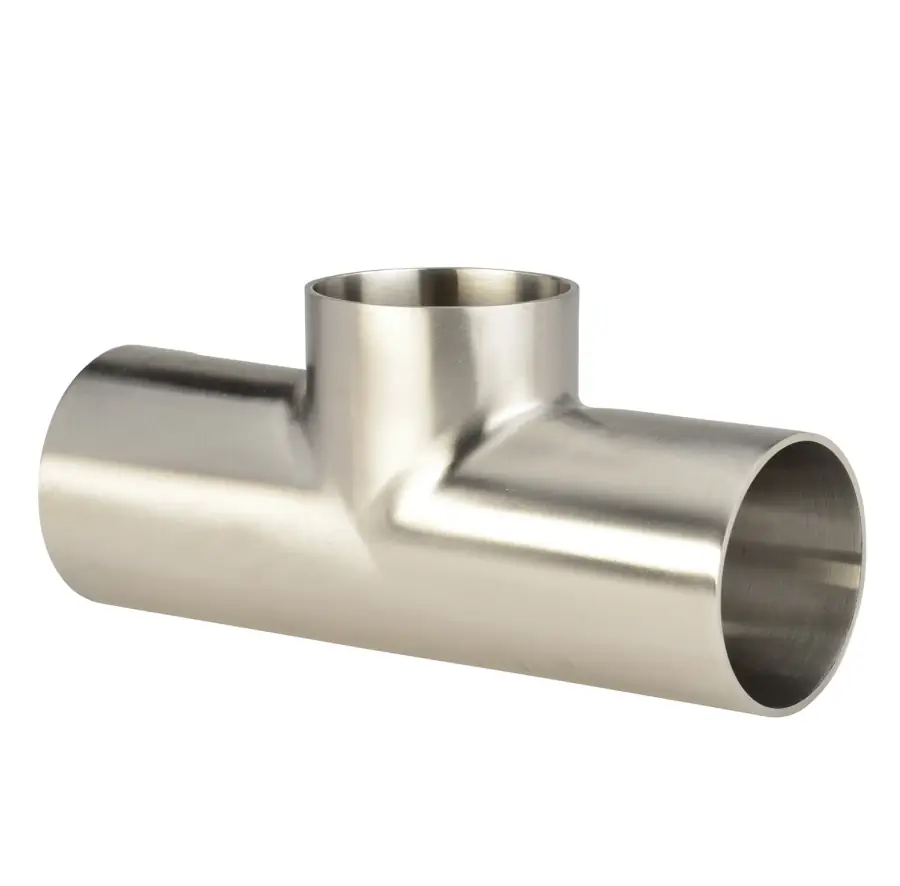

Stainless steel sanitary weld short outlet tees are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes.Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 1/2 | Short Outlet Tee | Weld x Clamp Branch | 304 Stainless Steel | | ||||
| 1 | Short Outlet Tee | Weld x Clamp Branch | 304 Stainless Steel | | ||||
| 1 | Short Outlet Tee | Weld x Clamp Branch | 316 Stainless Steel | | ||||
| 1 1/2 | Short Outlet Tee | Weld x Clamp Branch | 316 Stainless Steel | | ||||
| 2 | Short Outlet Tee | Weld x Clamp Branch | 304 Stainless Steel | | ||||
| 2 1/2 | Short Outlet Tee | Weld x Clamp Branch | 304 Stainless Steel | | ||||
| 2 | Short Outlet Tee | Weld x Clamp Branch | 316 Stainless Steel | | ||||
| 2 1/2 | Short Outlet Tee | Weld x Clamp Branch | 316 Stainless Steel | | ||||
| 3 | Short Outlet Tee | Weld x Clamp Branch | 304 Stainless Steel | | ||||
| 3 | Short Outlet Tee | Weld x Clamp Branch | 316 Stainless Steel | | ||||
| 4 | Short Outlet Tee | Weld x Clamp Branch | 304 Stainless Steel | | ||||
| 4 | Short Outlet Tee | Weld x Clamp Branch | 316 Stainless Steel | | ||||
| 6 | Short Outlet Tee | Weld x Clamp Branch | 304 Stainless Steel | | ||||
| 6 | Short Outlet Tee | Weld x Clamp Branch | 316 Stainless Steel | |
Product Info
We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld short outlet tees to meet your specifications. View our full line of stainless steel products.Dimensions

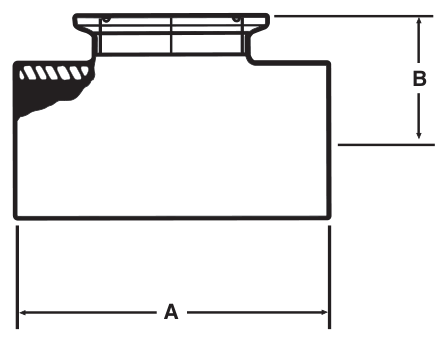

Dimensions in inches, from our sanitary weld data sheet. The column letters are the ones on the drawing.
| Tube OD | A | B | Nom. Wall |
|---|---|---|---|
| 1" | 4.250 | 1.125 | .065 |
| 1-1/2" | 4.750 | 1.375 | .065 |
| 2" | 5.750 | 1.625 | .065 |
| 2-1/2" | 6.250 | 1.875 | .065 |
| 3" | 6.750 | 2.125 | .065 |
| 4" | 8.250 | 2.750 | .083 |
| 6" | 11.250 | 4.625 | .109 |
Standard Specifications
We offer stainless steel sanitary weld short outlet tees in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld short outlet tees. Specification charts and general dimensional illustrations aid in identifying products. Some dimensions in the Reference Catalog differ from the charts on this page, which follow our sanitary weld data sheet.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld short outlet tees with a weld run and a clamp branch.Frequently Asked Questions
What sizes of sanitary weld short outlet tees do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary weld short outlet tees (weld run × short clamp branch), from 1" to 6". For other sizes or alloys, call (800) 282-9694 or send us a message.
What is a short outlet tee?
A tee with a weld run and a short clamp branch (outlet). On our data sheet a 2" short outlet tee measures A 5.750" along the run and B 1.625" from the center of the run to the end of the branch.
How do I get a price?
These items are priced on request: the product table shows "Quote" for each one. Call (800) 282-9694 or send us a message for a quote.
