Sanitary Weld Reducing Short Outlet Tees
Sanitary Weld Reducing Short Outlet Tees
The product table below lists 316L stainless steel sanitary weld reducing short outlet tees (weld run × smaller short clamp branch), from 3/4" × 1/2" to 6" × 4". A dimension chart follows the table.
Get a price: these items are priced on request (the product table below shows "Quote"); call (800) 282-9694 or send us a message for a quote.

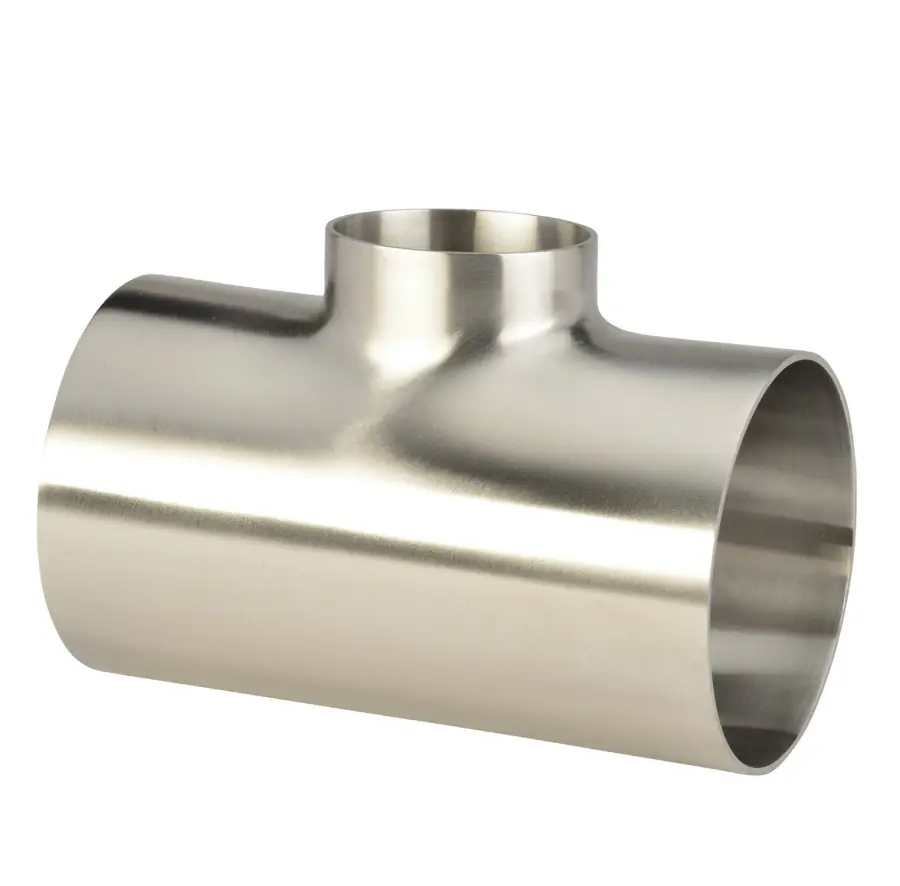

Stainless steel sanitary weld reducing short outlet tees are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes. Sanitary weld fittings meet all 3A requirements.
Types: Adapters - Caps - Crosses - Elbows - Laterals - Reducers - Stub Ends - Tees - True Wyes - U-Bends
Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Filters Sort results
Reset Apply
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 3/4 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1/2 | 316 Stainless Steel | | |||
| 1 | Reducing Short Outlet Tee | Weld x Clamp Branch | 3/4 | 316 Stainless Steel | | |||
| 1 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1/2 | 316 Stainless Steel | | |||
| 1 1/2 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1 | 316 Stainless Steel | | |||
| 1 1/2 | Reducing Short Outlet Tee | Weld x Clamp Branch | 3/4 | 316 Stainless Steel | | |||
| 1 1/2 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1/2 | 316 Stainless Steel | | |||
| 2 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1/2 | 316 Stainless Steel | | |||
| 2 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1 1/2 | 316 Stainless Steel | | |||
| 2 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1 | 316 Stainless Steel | | |||
| 2 | Reducing Short Outlet Tee | Weld x Clamp Branch | 3/4 | 316 Stainless Steel | | |||
| 2 1/2 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1 1/2 | 316 Stainless Steel | | |||
| 2 1/2 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1 | 316 Stainless Steel | | |||
| 2 1/2 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1/2 | 316 Stainless Steel | | |||
| 2 1/2 | Reducing Short Outlet Tee | Weld x Clamp Branch | 2 | 316 Stainless Steel | | |||
| 2 1/2 | Reducing Short Outlet Tee | Weld x Clamp Branch | 3/4 | 316 Stainless Steel | | |||
| 3 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1 1/2 | 316 Stainless Steel | | |||
| 3 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1 | 316 Stainless Steel | | |||
| 3 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1/2 | 316 Stainless Steel | | |||
| 3 | Reducing Short Outlet Tee | Weld x Clamp Branch | 2 1/2 | 316 Stainless Steel | | |||
| 3 | Reducing Short Outlet Tee | Weld x Clamp Branch | 2 | 316 Stainless Steel | | |||
| 3 | Reducing Short Outlet Tee | Weld x Clamp Branch | 3/4 | 316 Stainless Steel | | |||
| 4 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1 1/2 | 316 Stainless Steel | | |||
| 4 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1 | 316 Stainless Steel | | |||
| 4 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1/2 | 316 Stainless Steel | | |||
| 4 | Reducing Short Outlet Tee | Weld x Clamp Branch | 2 1/2 | 316 Stainless Steel | |
Product Info
We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld reducing short outlet tees to meet your specifications. View our full line of stainless steel products.Dimensions
We have a large stainless steel sanitary weld reducing short outlet tees inventory for complete order fulfillment and quick delivery. The chart below lists their dimensions.
Dimensions in inches, from our sanitary weld data sheet. The column letters are the ones on the drawing.
| Tube OD | A | B | Nom. Wall |
|---|---|---|---|
| 3/4" × 1/2" | 2.000 | 1.000 | 0.065 |
| 1" × 1/2" | 2.120 | 1.120 | 0.065 |
| 1" × 3/4" | 2.120 | 1.120 | 0.065 |
| 1-1/2" × 1/2" | 2.370 | 1.370 | 0.065 |
| 1-1/2" × 3/4" | 2.370 | 1.370 | 0.065 |
| 1-1/2" × 1" | 2.370 | 1.370 | 0.065 |
| 2" × 1/2" | 2.870 | 1.620 | 0.065 |
| 2" × 3/4" | 2.870 | 1.620 | 0.065 |
| 2" × 1" | 2.870 | 1.620 | 0.065 |
| 2" × 1-1/2" | 2.870 | 1.620 | 0.065 |
| 2-1/2" × 1/2" | 3.120 | 1.870 | 0.065 |
| 2-1/2" × 3/4" | 3.120 | 1.870 | 0.065 |
| 2-1/2" × 1" | 3.120 | 1.870 | 0.065 |
| 2-1/2" × 1-1/2" | 3.120 | 1.870 | 0.065 |
| 2-1/2" × 2" | 3.120 | 1.870 | 0.065 |
| 3" × 1/2" | 3.370 | 2.120 | 0.065 |
| 3" × 3/4" | 3.370 | 2.120 | 0.065 |
| 3" × 1" | 3.370 | 2.120 | 0.065 |
| 3" × 1-1/2" | 3.370 | 2.120 | 0.065 |
| 3" × 2" | 3.370 | 2.120 | 0.065 |
| 3" × 2-1/2" | 3.370 | 2.120 | 0.065 |
| 4" × 1/2" | 4.120 | 2.620 | 0.083 |
| 4" × 3/4" | 4.120 | 2.620 | 0.083 |
| 4" × 1" | 4.120 | 2.620 | 0.083 |
| 4" × 1-1/2" | 4.120 | 2.620 | 0.083 |
| 4" × 2" | 4.120 | 2.620 | 0.083 |
| 4" × 2-1/2" | 4.120 | 2.620 | 0.083 |
| 4" × 3" | 4.120 | 2.620 | 0.083 |
| 6" × 4" | 5.630 | 3.750 | 0.109 |
Scroll inside the chart to see every size.
Standard Specifications
We offer stainless steel sanitary weld reducing short outlet tees in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld reducing short outlet tees. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld reducing short outlet tees with a weld run and a clamp branch.Frequently Asked Questions
What sizes of sanitary weld reducing short outlet tees do you carry?
The product table on this page lists 316L stainless steel sanitary weld reducing short outlet tees (weld run × smaller short clamp branch), from 3/4" × 1/2" to 6" × 4". For other sizes or alloys, call (800) 282-9694 or send us a message.
What is a reducing short outlet tee?
A short outlet tee whose clamp branch is smaller than the run. On our data sheet a 2" × 1" measures A 2.870" from the center to each end of the run and B 1.620" from the center of the run to the end of the branch.
How do I get a price?
These items are priced on request: the product table shows "Quote" for each one. Call (800) 282-9694 or send us a message for a quote.
