The product table below lists 304 and 316 stainless steel 3000 lb forged unions, threaded and socket weld, from 1/4" to 2". Dimension charts follow the table.
Get a price: the product table below lists prices; for a size, end connection or grade that is not listed, call (800) 282-9694 or send us a message.

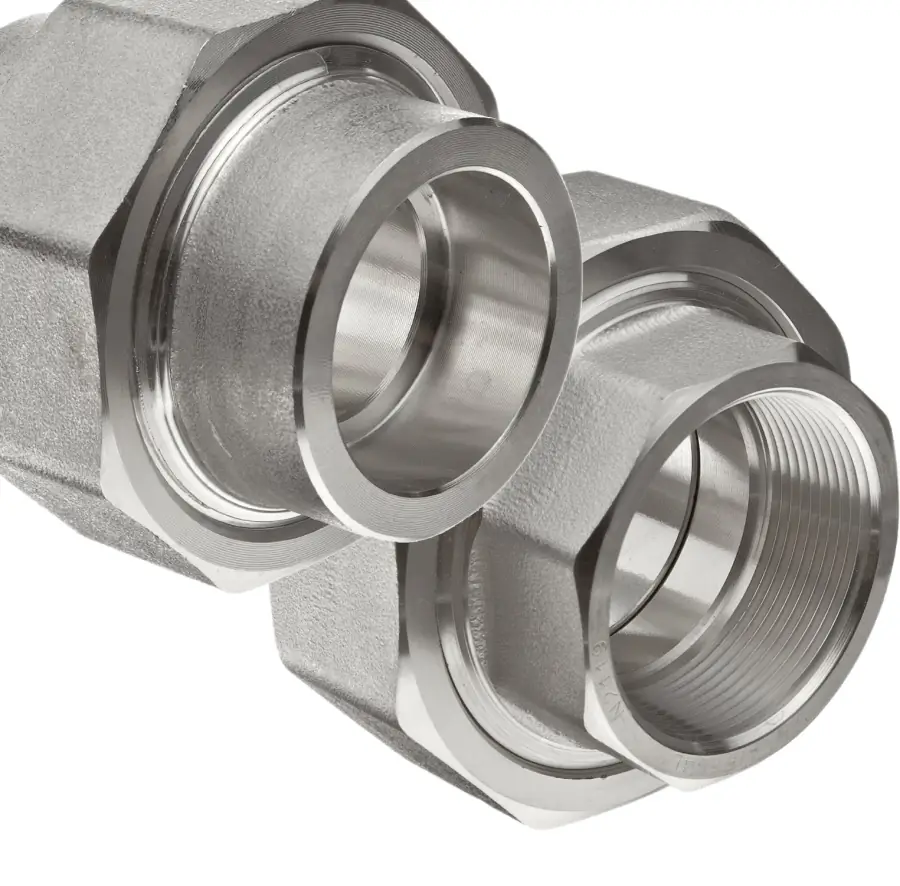

Our 3000# stainless steel forged unions are available in both threaded and socket weld 304 stainless steel and 316 stainless steel. Our stainless steel unions are of high quality and corrosion resistant for harsh, industrial environments.Pressure: Class 3000
End Connections: Threaded - Socket Weld
Grades: 304 - 316
Filter Products
Size | Product Type | Reducing | Pressure | End Type | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | Union | 3000# | Socket Weld | 304 Stainless | $37.60 | | |||
| 1/4 | Union | 3000# | Socket Weld | 316 Stainless | $39.54 | | |||
| 1/4 | Union | 3000# | Threaded | 304 Stainless | $37.60 | | |||
| 1/4 | Union | 3000# | Threaded | 316 Stainless | $39.54 | | |||
| 3/8 | Union | 3000# | Socket Weld | 304 Stainless | $40.18 | | |||
| 3/8 | Union | 3000# | Socket Weld | 316 Stainless | $45.72 | | |||
| 3/8 | Union | 3000# | Threaded | 304 Stainless | $40.18 | | |||
| 3/8 | Union | 3000# | Threaded | 316 Stainless | $45.72 | | |||
| 1/2 | Union | 3000# | Socket Weld | 304 Stainless | $40.18 | | |||
| 1/2 | Union | 3000# | Socket Weld | 316 Stainless | $45.79 | | |||
| 1/2 | Union | 3000# | Threaded | 304 Stainless | $40.18 | | |||
| 1/2 | Union | 3000# | Threaded | 316 Stainless | $45.79 | | |||
| 3/4 | Union | 3000# | Socket Weld | 304 Stainless | $49.24 | | |||
| 3/4 | Union | 3000# | Socket Weld | 316 Stainless | $59.67 | | |||
| 3/4 | Union | 3000# | Threaded | 304 Stainless | $49.24 | | |||
| 3/4 | Union | 3000# | Threaded | 316 Stainless | $59.67 | | |||
| 1 | Union | 3000# | Socket Weld | 304 Stainless | $79.43 | | |||
| 1 | Union | 3000# | Socket Weld | 316 Stainless | $96.03 | | |||
| 1 | Union | 3000# | Threaded | 304 Stainless | $79.37 | | |||
| 1 | Union | 3000# | Threaded | 316 Stainless | $96.03 | | |||
| 1 1/4 | Union | 3000# | Socket Weld | 304 Stainless | $119.13 | | |||
| 1 1/4 | Union | 3000# | Socket Weld | 316 Stainless | $148.70 | | |||
| 1 1/4 | Union | 3000# | Threaded | 304 Stainless | $119.13 | | |||
| 1 1/4 | Union | 3000# | Threaded | 316 Stainless | $142.31 | | |||
| 1 1/2 | Union | 3000# | Socket Weld | 304 Stainless | $134.33 | |
Product Info
We carry an extensive inventory of 3000# stainless steel forged unions in many grades and multiple sizes. View our stainless products line card.Dimensions
Dimensions in inches, from our forged fitting data sheets. The columns use the letters on our drawings; not every drawing marks every letter. The threaded and socket weld drawings use some of the same letters for different dimensions.
Charts on this page: Threaded · Socket Weld
Threaded
| Size | A Pipe End, Min. | C Wall, Min. | D Water Way Bore | F Male Flange, Min. | G Nut, Min. | J Bearing, Min. | L Length Assembled | N Clear Assembled Nut |
|---|---|---|---|---|---|---|---|---|
| 1/8" | 0.579 | 0.095 | 0.269 0.253 | 0.125 | 0.126 | 0.049 | 1.630 | 1.929 |
| 1/4" | 0.748 | 0.119 | 0.388 0.372 | 0.125 | 0.126 | 0.049 | 1.630 | 1.929 |
| 3/8" | 0.902 | 0.126 | 0.548 0.532 | 0.135 | 0.134 | 0.054 | 1.811 | 2.165 |
| 1/2" | 1.091 | 0.147 | 0.688 0.672 | 0.145 | 0.146 | 0.059 | 1.929 | 2.244 |
| 3/4" | 1.319 | 0.154 | 0.858 0.842 | 0.160 | 0.161 | 0.066 | 2.240 | 2.638 |
| 1" | 1.630 | 0.179 | 1.108 1.092 | 0.180 | 0.173 | 0.073 | 2.441 | 3.110 |
| 1-1/4" | 1.988 | 0.191 | 1.408 1.392 | 0.210 | 0.205 | 0.084 | 2.799 | 3.701 |
| 1-1/2" | 2.252 | 0.200 | 1.638 1.622 | 0.230 | 0.220 | 0.091 | 3.008 | 4.370 |
| 2" | 2.760 | 0.218 | 2.068 2.052 | 0.260 | 0.252 | 0.106 | 3.390 | 5.197 |
| 2-1/2" | 3.358 | 0.276 | 2.548 2.532 | 0.295 | 0.280 | 0.121 | 4.031 | 5.827 |
| 3" | 4.031 | 0.300 | 3.058 3.042 | 0.325 | 0.315 | 0.139 | 4.291 | 6.890 |
Swipe the chart sideways to see every column.
The chart includes sizes on our data sheet that are not in the product table above. Call us for availability.
Where a cell shows two figures, both are printed on our data sheet, which does not label them separately.
Socket Weld
| Size | A Pipe End, Min. | B Socket Bore | C Socket Wall, Min. | D Water Way Bore | E Laying Length | F Male Flange, Min. | G Nut, Min. | J Bearing, Min. | K Socket Depth, Min. | L Length Assembled | N Clear Assembled Nut |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8" | 0.858 | 0.430 0.420 | 0.125 | 0.269 0.253 | 0.882 0.748 | 0.125 | 0.125 | 0.049 | 0.378 | 1.630 | 1.929 |
| 1/4" | 0.858 | 0.560 0.550 | 0.130 | 0.388 0.372 | 0.882 0.748 | 0.125 | 0.125 | 0.049 | 0.378 | 1.630 | 1.929 |
| 3/8" | 1.020 | 0.700 0.690 | 0.137 | 0.548 0.532 | 1.059 0.811 | 0.135 | 0.135 | 0.054 | 0.378 | 1.811 | 2.165 |
| 1/2" | 1.228 | 0.860 0.850 | 0.160 | 0.688 0.672 | 1.059 0.811 | 0.145 | 0.145 | 0.059 | 0.378 | 1.929 | 2.244 |
| 3/4" | 1.461 | 1.070 1.060 | 0.168 | 0.858 0.842 | 1.252 1.000 | 0.160 | 0.160 | 0.066 | 0.500 | 2.240 | 2.638 |
| 1" | 1.791 | 1.340 1.330 | 0.195 | 1.108 1.092 | 1.350 1.031 | 0.180 | 0.175 | 0.073 | 0.500 | 2.441 | 3.110 |
| 1-1/4" | 2.161 | 1.680 1.670 | 0.208 | 1.408 1.392 | 1.598 1.280 | 0.210 | 0.205 | 0.084 | 0.500 | 2.799 | 3.701 |
| 1-1/2" | 2.421 | 1.920 1.910 | 0.218 | 1.638 1.622 | 1.661 1.339 | 0.230 | 0.220 | 0.091 | 0.500 | 3.012 | 4.370 |
| 2" | 2.961 | 2.420 2.410 | 0.238 | 2.068 2.052 | 1.791 1.469 | 0.260 | 0.250 | 0.106 | 0.622 | 3.390 | 5.197 |
| 2-1/2" | 3.610 | 2.920 2.900 | 0.301 | 2.548 2.532 | 2.429 2.051 | 0.295 | 0.280 | 0.121 | 0.622 | 4.031 | 5.827 |
| 3" | 4.299 | 3.550 3.530 | 0.327 | 3.058 3.042 | 2.512 2.110 | 0.325 | 0.315 | 0.139 | 0.622 | 4.291 | 6.890 |
Swipe the chart sideways to see every column.
The chart includes sizes on our data sheet that are not in the product table above. Call us for availability.
Where a cell shows two figures, both are printed on our data sheet, which does not label them separately.
Standard Specifications
3000# unions are manufactured in accordance with ASTM A182 for material and ANSI B16.11 for dimensional specifications.Stainless Steel Grades
View our stainless steel grades resource chart.Reference Catalog
View thousands of stainless steel pipe and tubing products and various custom fabrication services Shaw Stainless offers. This Reference Catalog identifies stainless steel pipe unions and other stainless steel forged fittings with specification charts and illustrations. Some dimensions in the Reference Catalog differ from the charts on this page.Additional Info
The union is a pipe fitting designed for a simple connection and disconnection for any future pipe maintenance and replacements. The union is similar to the coupling, but a coupling requires additional, lengthy work to disconnect and remove from the piping system. Unions have three parts to the configuration consisting of a male end, a hex nut and a female end.Frequently Asked Questions
What sizes of 3000 lb forged unions do you carry?
The product table on this page lists 304 and 316 stainless steel 3000 lb forged unions, threaded and socket weld, from 1/4" to 2". For other sizes or grades, call (800) 282-9694 or send us a message.
How long is a 1" union?
Our data sheets give an assembled length (L) of 2.441" for a 1" union, threaded or socket weld.
Why does this page have two charts?
Our data sheets have a threaded chart and a socket weld chart, each with its own drawing. Each chart uses the letters on its own drawing.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or grade that is not listed, call (800) 282-9694 or send us a message.
