Sanitary Weld Tube x Pipe Sch 10 Adapters
Sanitary Weld Tube x Pipe Sch 10 Adapters

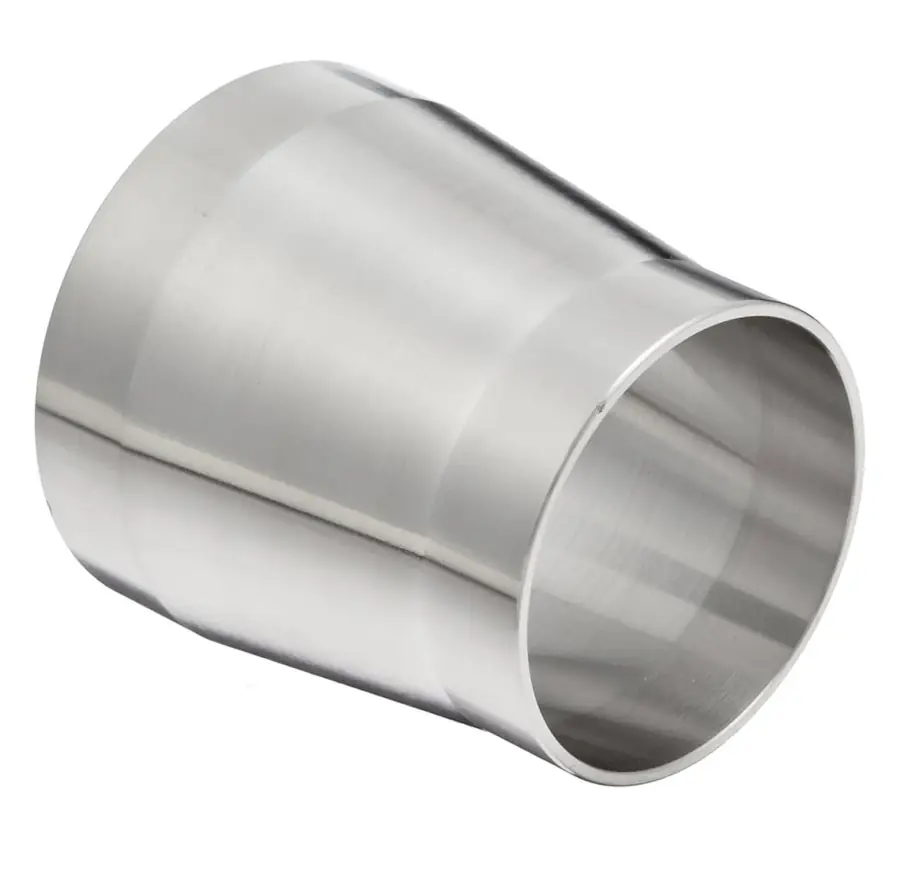

The product table below lists 316L stainless steel sanitary weld tube × pipe Sch 10 adapters, from 1/2" to 6", for joining sanitary tube to Sch 10 pipe of the same nominal size. A dimension chart follows the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
Stainless steel sanitary weld tube x pipe sch 10 adapters are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes.Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1/2 | Tube x Pipe Sch 10 Adapter | Weld | 316 Stainless Steel | $53.39 | | |||
| 3/4 | Tube x Pipe Sch 10 Adapter | Weld | 316 Stainless Steel | $53.39 | | |||
| 1 | Tube x Pipe Sch 10 Adapter | Weld | 316 Stainless Steel | $67.98 | | |||
| 1 1/2 | Tube x Pipe Sch 10 Adapter | Weld | 316 Stainless Steel | $67.98 | | |||
| 2 | Tube x Pipe Sch 10 Adapter | Weld | 316 Stainless Steel | $78.87 | | |||
| 2 1/2 | Tube x Pipe Sch 10 Adapter | Weld | 316 Stainless Steel | $93.69 | | |||
| 3 | Tube x Pipe Sch 10 Adapter | Weld | 316 Stainless Steel | $98.04 | | |||
| 4 | Tube x Pipe Sch 10 Adapter | Weld | 316 Stainless Steel | $185.18 | | |||
| 6 | Tube x Pipe Sch 10 Adapter | Weld | 316 Stainless Steel | $411.76 | |
Product Info
We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld tube x pipe sch 10 adapters to meet your specifications. View our full line of stainless steel products.Dimensions
Dimensions in inches, from our sanitary weld data sheet. The column letters are the ones on the drawing.
This page shows the Sch 10 columns of the chart (C and S). Our data sheet's chart also covers Sch 5 and Sch 40 adapters.
| Tube OD | A | B | C (Sch 10) | D | E | T | S (Sch 10) |
|---|---|---|---|---|---|---|---|
| 1/2" | 0.500 | 0.370 | 0.674 | 0.840 | 1.000 | 0.065 | 0.083 |
| 3/4" | 0.750 | 0.620 | 0.884 | 1.050 | 1.000 | 0.065 | 0.083 |
| 1" | 1.000 | 0.870 | 1.097 | 1.315 | 1.000 | 0.065 | 0.109 |
| 1-1/2" | 1.500 | 1.370 | 1.682 | 1.900 | 1.500 | 0.065 | 0.109 |
| 2" | 2.000 | 1.870 | 2.157 | 2.375 | 1.500 | 0.065 | 0.109 |
| 2-1/2" | 2.500 | 2.370 | 2.635 | 2.875 | 1.500 | 0.065 | 0.120 |
| 3" | 3.000 | 2.870 | 3.260 | 3.500 | 2.000 | 0.065 | 0.120 |
| 4" | 4.000 | 3.834 | 4.260 | 4.500 | 2.000 | 0.083 | 0.120 |
| 6" | 6.000 | 5.782 | 6.357 | 6.625 | 3.000 | 0.109 | 0.134 |
Swipe the chart sideways to see every column.
Standard Specifications
We offer stainless steel sanitary weld tube x pipe sch 10 adapters in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld tube x pipe sch 10 adapters. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld tube × pipe Sch 10 adapters with weld ends.Frequently Asked Questions
What sizes of sanitary weld tube × pipe Sch 10 adapters do you carry?
The product table on this page lists 316L stainless steel sanitary weld tube × pipe Sch 10 adapters, from 1/2" to 6", for joining sanitary tube to Sch 10 pipe of the same nominal size. For other sizes or alloys, call (800) 282-9694 or send us a message.
How does a tube × pipe Sch 10 adapter fit?
The tube end matches sanitary tube and the pipe end matches Sch 10 pipe. For 2", the tube end is 2.000" OD (A) with a 0.065" wall (T), and the pipe end is 2.375" OD (D) with a 0.109" wall (S).
Do you carry adapters for other pipe schedules?
Yes: see our Sch 5 adapters and Sch 40 adapters.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
