3000 lb Stainless Steel Forged Inserts
3000 lb Stainless Steel Forged Inserts

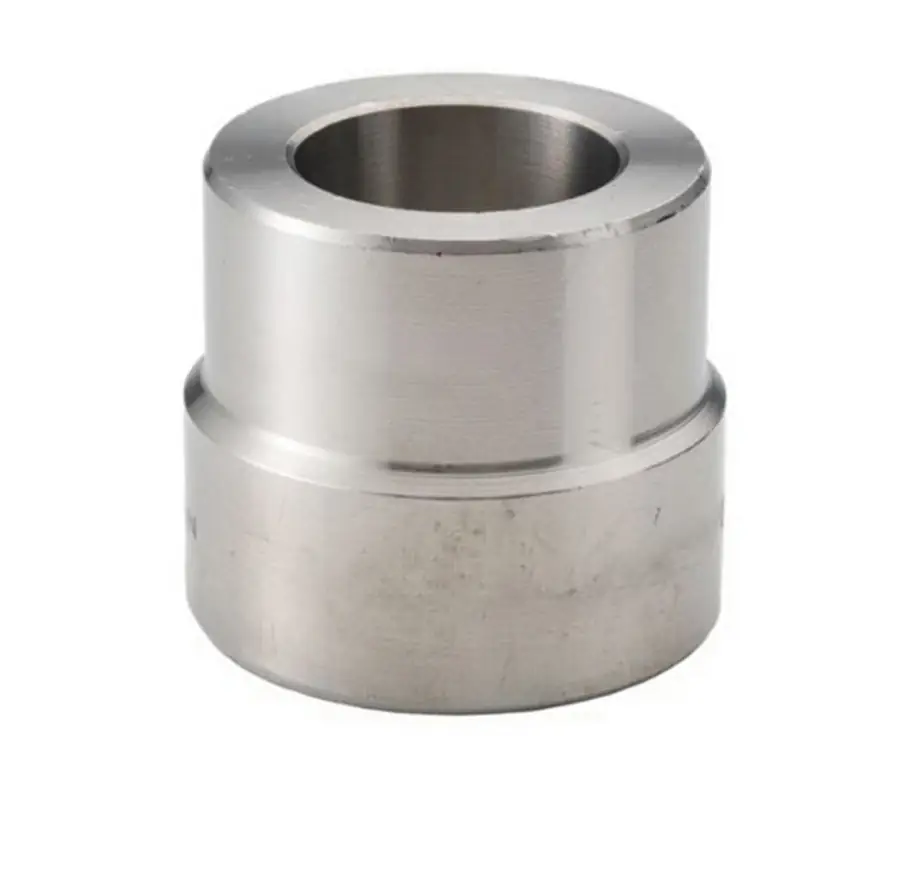

The product table below lists 304 and 316 stainless steel 3000 lb forged inserts, socket weld, with large ends from 1/2" to 2" and small ends from 1/4" to 1-1/2". A dimension chart follows the table.
Get a price: the product table below lists prices; for a size, end connection or grade that is not listed, call (800) 282-9694 or send us a message.
Our 3000 lb stainless steel forged inserts are offered in a 304 and 316 stainless and come in a variety of sizes.Pressure: Class 3000
End Connections: Socket Weld
Grades: 304 - 316
Filter Products
Size | Product Type | Reducing | Pressure | End Type | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1/2 | Insert | 1/4 | 3000# | Socket Weld | 304 Stainless | $10.84 | | ||
| 1/2 | Insert | 1/4 | 3000# | Socket Weld | 316 Stainless | $15.10 | | ||
| 1/2 | Insert | 3/8 | 3000# | Socket Weld | 304 Stainless | $10.84 | | ||
| 1/2 | Insert | 3/8 | 3000# | Socket Weld | 316 Stainless | $15.10 | | ||
| 3/4 | Insert | 1/2 | 3000# | Socket Weld | 304 Stainless | $13.09 | | ||
| 3/4 | Insert | 1/2 | 3000# | Socket Weld | 316 Stainless | $18.04 | | ||
| 3/4 | Insert | 1/4 | 3000# | Socket Weld | 304 Stainless | $13.09 | | ||
| 3/4 | Insert | 1/4 | 3000# | Socket Weld | 316 Stainless | $18.04 | | ||
| 3/4 | Insert | 3/8 | 3000# | Socket Weld | 304 Stainless | $13.09 | | ||
| 3/4 | Insert | 3/8 | 3000# | Socket Weld | 316 Stainless | $18.04 | | ||
| 1 | Insert | 1/2 | 3000# | Socket Weld | 304 Stainless | $17.49 | | ||
| 1 | Insert | 1/2 | 3000# | Socket Weld | 316 Stainless | $26.21 | | ||
| 1 | Insert | 1/4 | 3000# | Socket Weld | 304 Stainless | $17.49 | | ||
| 1 | Insert | 1/4 | 3000# | Socket Weld | 316 Stainless | $26.21 | | ||
| 1 | Insert | 3/4 | 3000# | Socket Weld | 304 Stainless | $17.49 | | ||
| 1 | Insert | 3/4 | 3000# | Socket Weld | 316 Stainless | $26.21 | | ||
| 1 | Insert | 3/8 | 3000# | Socket Weld | 304 Stainless | $17.49 | | ||
| 1 | Insert | 3/8 | 3000# | Socket Weld | 316 Stainless | $26.21 | | ||
| 1 1/4 | Insert | 1 | 3000# | Socket Weld | 304 Stainless | $29.70 | | ||
| 1 1/4 | Insert | 1 | 3000# | Socket Weld | 316 Stainless | $38.61 | | ||
| 1 1/4 | Insert | 1/2 | 3000# | Socket Weld | 304 Stainless | $29.70 | | ||
| 1 1/4 | Insert | 1/2 | 3000# | Socket Weld | 316 Stainless | $38.61 | | ||
| 1 1/4 | Insert | 3/4 | 3000# | Socket Weld | 304 Stainless | $29.70 | | ||
| 1 1/4 | Insert | 3/4 | 3000# | Socket Weld | 316 Stainless | $38.61 | | ||
| 1 1/2 | Insert | 1 1/4 | 3000# | Socket Weld | 304 Stainless | $31.78 | |
Product Info
We carry an extensive inventory of 3000# stainless steel forged inserts in many grades and multiple sizes. View our stainless products line card.Dimensions
Dimensions in inches, from our forged fitting data sheets. The columns use the letters on our drawings; not every drawing marks every letter.
Our data sheets print Class 3000 and Class 6000 columns for some dimensions; the charts here show the Class 3000 columns.
| Size | Type | B Socket Bore | K Socket Depth, Min. | SD Shank Diameter | A Laying Length | D Bore | C Wall, Min. | SL Length | RL Length, Min. |
|---|---|---|---|---|---|---|---|---|---|
| 3/8" × 1/4" | 1 | 0.56 | 0.39 | 0.68 | 0.75 | 0.35 | 0.15 | 0.55 | - |
| 1/2" × 3/8" | 1 | 0.70 | 0.39 | 0.84 | 0.83 | 0.49 | 0.16 | 0.63 | - |
| 1/2" × 1/4" | 1 | 0.56 | 0.39 | 0.84 | 0.83 | 0.35 | 0.15 | 0.63 | - |
| 3/4" × 1/2" | 1 | 0.86 | 0.39 | 1.05 | 0.87 | 0.63 | 0.18 | 0.67 | - |
| 3/4" × 3/8" | 2 | 0.70 | 0.39 | 1.05 | 0.63 | 0.49 | 0.16 | - | 1.06 |
| 3/4" × 1/4" | 2 | 0.56 | 0.39 | 1.05 | 0.71 | 0.35 | 0.15 | - | 1.06 |
| 1" × 3/4" | 1 | 1.08 | 0.51 | 1.31 | 0.94 | 0.83 | 0.19 | 0.75 | - |
| 1" × 1/2" | 2 | 0.86 | 0.39 | 1.31 | 0.63 | 0.63 | 0.18 | - | 1.10 |
| 1" × 3/8" | 2 | 0.70 | 0.39 | 1.31 | 0.71 | 0.49 | 0.16 | - | 1.10 |
| 1" × 1/4" | 2 | 0.56 | 0.39 | 1.31 | 0.75 | 0.35 | 0.15 | - | 1.10 |
| 1-1/4" × 1" | 1 | 1.34 | 0.51 | 1.66 | 0.98 | 1.04 | 0.22 | 0.83 | - |
| 1-1/4" × 3/4" | 2 | 1.08 | 0.51 | 1.66 | 0.71 | 0.83 | 0.19 | - | 1.26 |
| 1-1/4" × 1/2" | 2 | 0.86 | 0.39 | 1.66 | 0.75 | 0.63 | 0.18 | - | 1.26 |
| 1-1/4" × 3/8" | 2 | 0.70 | 0.39 | 1.66 | 0.83 | 0.49 | 0.16 | - | 1.26 |
| 1-1/4" × 1/4" | 2 | 0.56 | 0.39 | 1.66 | 0.87 | 0.35 | 0.15 | - | 1.26 |
| 1-1/2" × 1-1/4" | 1 | 1.69 | 0.51 | 1.90 | 1.10 | 1.38 | 0.24 | 0.87 | - |
| 1-1/2" × 1" | 2 | 1.34 | 0.51 | 1.90 | 0.71 | 1.04 | 0.22 | - | 1.30 |
| 1-1/2" × 3/4" | 2 | 1.08 | 0.51 | 1.90 | 0.75 | 0.83 | 0.19 | - | 1.30 |
| 1-1/2" × 1/2" | 2 | 0.86 | 0.39 | 1.90 | 0.83 | 0.63 | 0.18 | - | 1.30 |
| 1-1/2" × 3/8" | 2 | 0.70 | 0.39 | 1.90 | 0.87 | 0.49 | 0.16 | - | 1.30 |
| 2" × 1-1/2" | 1 | 1.93 | 0.51 | 2.38 | 1.26 | 1.61 | 0.25 | 0.98 | - |
| 2" × 1-1/4" | 2 | 1.69 | 0.51 | 2.38 | 0.83 | 1.38 | 0.24 | - | 1.50 |
| 2" × 1" | 2 | 1.34 | 0.51 | 2.38 | 0.87 | 1.04 | 0.22 | - | 1.50 |
| 2" × 3/4" | 2 | 1.08 | 0.51 | 2.38 | 0.94 | 0.83 | 0.19 | - | 1.50 |
| 2" × 1/2" | 2 | 0.86 | 0.39 | 2.37 | 0.98 | 0.62 | 0.18 | - | 1.50 |
Swipe the chart sideways to see every column.
The chart includes sizes on our data sheet that are not in the product table above. Call us for availability.
Type says which drawing applies: SL is the length of a Type 1 insert, RL of a Type 2 insert; a dash means the column does not apply.
At the option of the manufacturer, Type 2 reducers may be furnished in Type 1 configuration.
Scroll inside the chart to see every size.
Standard Specifications
3000# inserts conform to ASTM A182 for material and ANSI B16.11 for dimensional specifications.Stainless Steel Grades
View our stainless steel grades chart for further reference.Reference Catalog
View thousands of stainless steel pipe and tubing products and various custom fabrication services Shaw Stainless offers. This Reference Catalog identifies stainless steel pipe O-Lets and other stainless steel pipe fittings with specification charts and illustrations.Additional Info
An insert is a branch connection fitting on a pipe that provides an outlet from a large pipe to a smaller pipe or one of equal size. The insert is welded to the main pipe and the branch pipe that is connected is the branch pipe. Inserts are manufactured in a variety of alloys including stainless steel, carbon steel and aluminum.Frequently Asked Questions
What sizes of 3000 lb forged inserts do you carry?
The product table on this page lists 304 and 316 stainless steel 3000 lb forged inserts, socket weld, in 21 size combinations, with large ends from 1/2" to 2" and small ends from 1/4" to 1-1/2". For other sizes or grades, call (800) 282-9694 or send us a message.
What are Type 1 and Type 2 inserts?
Our data sheet draws two shapes. The Type column in the chart says which applies to each size: SL is the length of a Type 1 insert and RL of a Type 2 insert. Our data sheet notes that, at the option of the manufacturer, Type 2 reducers may be furnished in Type 1 configuration.
What does Class 3000 mean on the charts?
Class 3000 is the pressure class of these fittings (3000# in the product table). Our data sheets give some dimensions for Class 3000 and Class 6000; the charts show the Class 3000 columns.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or grade that is not listed, call (800) 282-9694 or send us a message.
