Sanitary Weld Reducing Tees
Sanitary Weld Reducing Tees

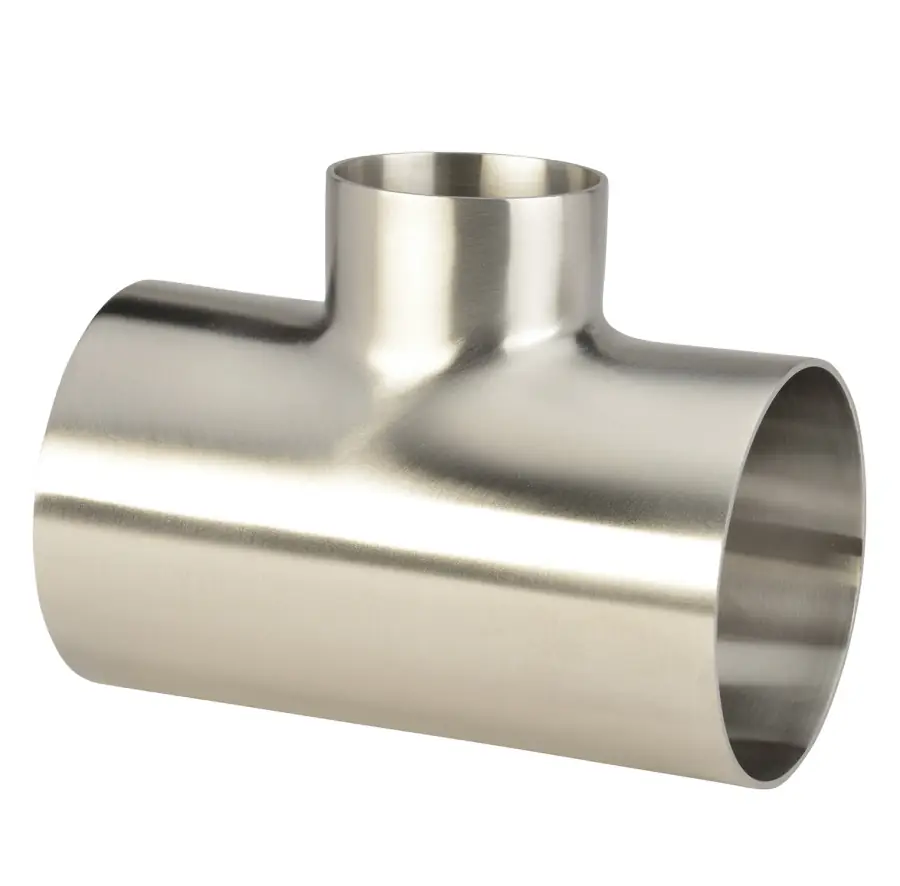

The product table below lists 304 and 316L stainless steel sanitary weld reducing tees, from 1-1/2" × 1" to 6" × 4". A dimension chart follows the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
Stainless steel sanitary weld reducing tees are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes.Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 1/2 | Reducing Tee | Weld | 1 | 304 Stainless Steel | $54.48 | | ||
| 1 1/2 | Reducing Tee | Weld | 1 | 316 Stainless Steel | $55.76 | | ||
| 2 | Reducing Tee | Weld | 1 1/2 | 304 Stainless Steel | $57.52 | | ||
| 2 | Reducing Tee | Weld | 1 1/2 | 316 Stainless Steel | $63.31 | | ||
| 2 | Reducing Tee | Weld | 1 | 304 Stainless Steel | $81.69 | | ||
| 2 | Reducing Tee | Weld | 1 | 316 Stainless Steel | $130.27 | | ||
| 2 1/2 | Reducing Tee | Weld | 1 1/2 | 304 Stainless Steel | $102.40 | | ||
| 2 1/2 | Reducing Tee | Weld | 1 1/2 | 316 Stainless Steel | $133.99 | | ||
| 2 1/2 | Reducing Tee | Weld | 1 | 304 Stainless Steel | $122.22 | | ||
| 2 1/2 | Reducing Tee | Weld | 1 | 316 Stainless Steel | $133.99 | | ||
| 2 1/2 | Reducing Tee | Weld | 2 | 304 Stainless Steel | $63.02 | | ||
| 2 1/2 | Reducing Tee | Weld | 2 | 316 Stainless Steel | $67.32 | | ||
| 3 | Reducing Tee | Weld | 1 1/2 | 304 Stainless Steel | $125.28 | | ||
| 3 | Reducing Tee | Weld | 1 1/2 | 316 Stainless Steel | $192.81 | | ||
| 3 | Reducing Tee | Weld | 1 | 304 Stainless Steel | $131.81 | | ||
| 3 | Reducing Tee | Weld | 1 | 316 Stainless Steel | $185.18 | | ||
| 3 | Reducing Tee | Weld | 2 1/2 | 304 Stainless Steel | $90.85 | | ||
| 3 | Reducing Tee | Weld | 2 1/2 | 316 Stainless Steel | $136.15 | | ||
| 3 | Reducing Tee | Weld | 2 | 304 Stainless Steel | $90.85 | | ||
| 3 | Reducing Tee | Weld | 2 | 316 Stainless Steel | $136.15 | | ||
| 4 | Reducing Tee | Weld | 1 1/2 | 304 Stainless Steel | $226.59 | | ||
| 4 | Reducing Tee | Weld | 1 1/2 | 316 Stainless Steel | $283.21 | | ||
| 4 | Reducing Tee | Weld | 2 1/2 | 304 Stainless Steel | $226.59 | | ||
| 4 | Reducing Tee | Weld | 2 1/2 | 316 Stainless Steel | $289.78 | | ||
| 4 | Reducing Tee | Weld | 2 | 304 Stainless Steel | $226.59 | |
Product Info
We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld reducing tees to meet your specifications. View our full line of stainless steel products.Dimensions

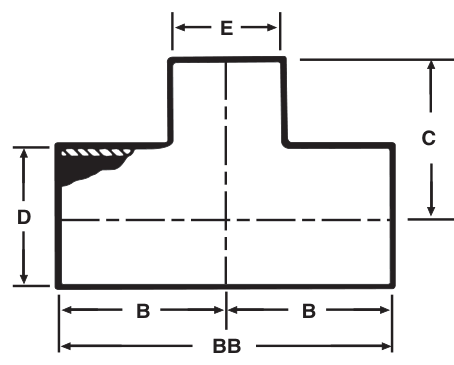

Dimensions in inches, from our sanitary weld data sheet. The column letters are the ones on the drawing.
| Tube OD | B | BB | C | Nom. Wall |
|---|---|---|---|---|
| 1-1/2" × 1" | 1.650 | 3.312 | 1.375 | 0.065 |
| 2" × 1" | 2.060 | 4.125 | 1.625 | 0.065 |
| 2" × 1-1/2" | 2.060 | 4.125 | 1.906 | 0.065 |
| 2-1/2" × 1" | 2.340 | 4.687 | 1.875 | 0.065 |
| 2-1/2" × 1-1/2" | 2.340 | 4.687 | 2.150 | 0.065 |
| 2-1/2" × 2" | 2.340 | 4.687 | 2.312 | 0.065 |
| 3" × 1" | 2.590 | 5.187 | 2.125 | 0.065 |
| 3" × 1-1/2" | 2.590 | 5.187 | 2.400 | 0.065 |
| 3" × 2" | 2.590 | 5.187 | 2.562 | 0.065 |
| 3" × 2-1/2" | 2.590 | 5.187 | 2.590 | 0.065 |
| 4" × 1-1/2" | 3.430 | 6.875 | 4.906 | 0.083 × 0.065 |
| 4" × 2" | 3.430 | 6.875 | 3.090 | 0.083 × 0.065 |
| 4" × 2-1/2" | 3.430 | 6.875 | 3.090 | 0.083 × 0.065 |
| 4" × 3" | 3.430 | 6.875 | 3.090 | 0.083 × 0.065 |
| 6" × 2" | 5.625 | 11.250 | 5.625 | 0.109 × 0.065 |
| 6" × 3" | 5.625 | 11.250 | 5.625 | 0.109 × 0.065 |
| 6" × 4" | 5.625 | 11.250 | 5.625 | 0.109 × 0.083 |
Swipe the chart sideways to see every column.
D and E on the drawing are the run and branch tube sizes.
Where the wall shows two values, they go with the two sizes in order (for example 4" × 1-1/2": 0.083 × 0.065).
Standard Specifications
We offer stainless steel sanitary weld reducing tees in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld reducing tees. Specification charts and general dimensional illustrations aid in identifying products. Some dimensions in the Reference Catalog differ from the charts on this page, which follow our sanitary weld data sheet.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld reducing tees with weld ends.Frequently Asked Questions
What sizes of sanitary weld reducing tees do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary weld reducing tees, from 1-1/2" × 1" to 6" × 4". For other sizes or alloys, call (800) 282-9694 or send us a message.
How is a reducing tee size written?
Run × branch: a 3" × 2" reducing tee has a 3" run and a 2" branch (D and E on the drawing). On our data sheet it measures BB 5.187" end to end along the run and C 2.562" from the center to the branch end.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
