Sanitary Weld True Y
Sanitary Weld True Y

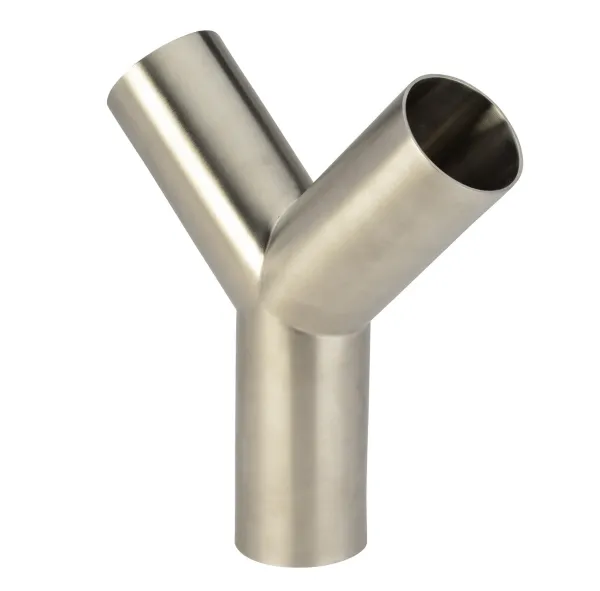

The product table below lists 304 and 316L stainless steel sanitary weld true Y fittings, from 1" to 6". A dimension chart follows the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
Stainless steel sanitary weld true y are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes.Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 | True Y | Weld | 304 Stainless Steel | $217.88 | | |||
| 1 | True Y | Weld | 316 Stainless Steel | $256.00 | | |||
| 1 1/2 | True Y | Weld | 304 Stainless Steel | $217.88 | | |||
| 1 1/2 | True Y | Weld | 316 Stainless Steel | $256.00 | | |||
| 2 | True Y | Weld | 304 Stainless Steel | $252.73 | | |||
| 2 | True Y | Weld | 316 Stainless Steel | $299.58 | | |||
| 2 1/2 | True Y | Weld | 304 Stainless Steel | $305.02 | | |||
| 2 1/2 | True Y | Weld | 316 Stainless Steel | $359.48 | | |||
| 3 | True Y | Weld | 304 Stainless Steel | $337.69 | | |||
| 3 | True Y | Weld | 316 Stainless Steel | $397.62 | | |||
| 4 | True Y | Weld | 304 Stainless Steel | $544.68 | | |||
| 4 | True Y | Weld | 316 Stainless Steel | $860.58 | | |||
| 6 | True Y | Weld | 304 Stainless Steel | $1,470.59 | | |||
| 6 | True Y | Weld | 316 Stainless Steel | $2,135.08 | |
Product Info
We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld true y to meet your specifications. View our full line of stainless steel products.Dimensions

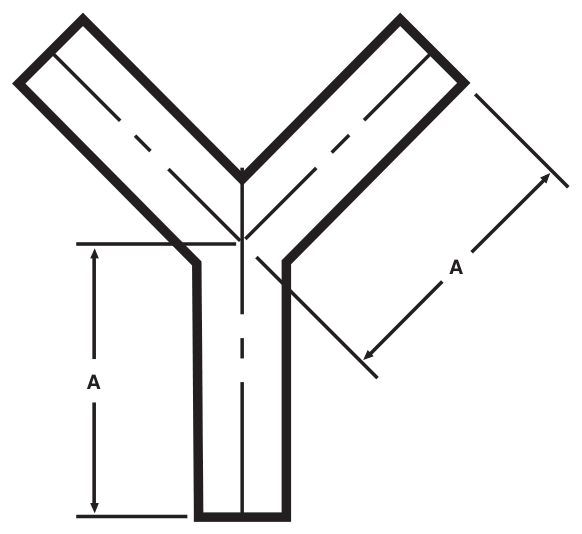

Dimensions in inches, from our sanitary weld data sheet. The column letters are the ones on the drawing.
| Tube OD | A | Nom. Wall |
|---|---|---|
| 1" | 3.000 | 0.065 |
| 1-1/2" | 3.000 | 0.065 |
| 2" | 4.000 | 0.065 |
| 2-1/2" | 5.000 | 0.065 |
| 3" | 6.000 | 0.065 |
| 4" | 8.000 | 0.083 |
| 6" | 8.000 | 0.109 |
Standard Specifications
We offer stainless steel sanitary weld true y in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld true y. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld true Y fittings with weld ends.Frequently Asked Questions
What sizes of sanitary weld true Y fittings do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary weld true Y fittings, from 1" to 6". For other sizes or alloys, call (800) 282-9694 or send us a message.
What is the difference between a true Y and a 45° lateral?
A true Y splits into two branches at the same angle; a lateral has a straight run with one branch at 45°. On our drawing A runs from the center to the end of each leg: a 2" true Y measures A 4.000". See our sanitary weld 45 degree laterals.
What is the wall thickness?
Our data sheet gives a nominal wall (the wall column in the chart) of 0.065" from 1" to 3", 0.083" at 4" and 0.109" at 6".
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
