150 lb Stainless Steel Cast Hex Bushings
150 lb Stainless Steel Cast Hex Bushings
The product table below lists 304 and 316 stainless steel 150 lb cast hex bushings, threaded (NPT) from 1/4" × 1/8" to 4" × 3". A dimension chart follows the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.

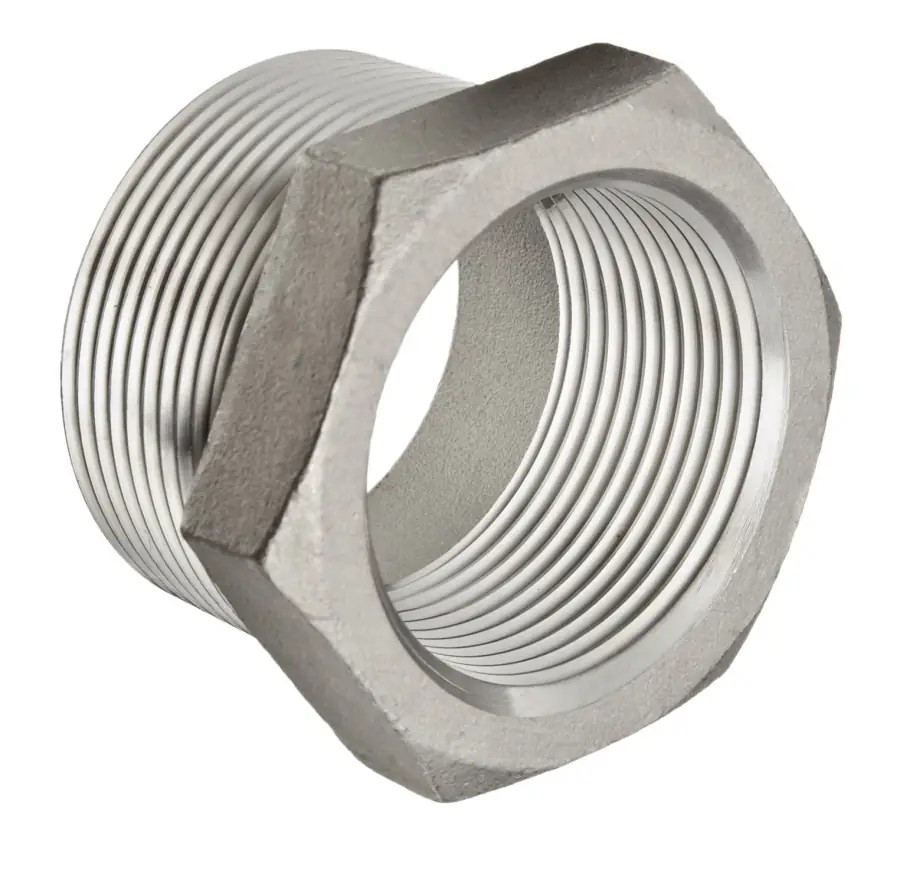

Our 150 lb stainless steel cast hex bushings are of high quality and corrosion resistant for any harsh environment application.
Sizes: 1/8" - 4"
Pressure: Class 150
End Connections: Threaded
Alloys: Aluminum - Carbon - Stainless
Pressure: Class 150
End Connections: Threaded
Alloys: Aluminum - Carbon - Stainless
Filter Products
Filters Sort results
Reset Apply
Size | Product Type | Reducing | Pressure | End Type | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | Hex Bushing | 1/8 | 150# | Threaded | 304 Stainless | $1.90 | | ||
| 1/4 | Hex Bushing | 1/8 | 150# | Threaded | 316 Stainless | $2.14 | | ||
| 3/8 | Hex Bushing | 1/8 | 150# | Threaded | 304 Stainless | $2.06 | | ||
| 3/8 | Hex Bushing | 1/4 | 150# | Threaded | 304 Stainless | $2.06 | | ||
| 3/8 | Hex Bushing | 1/8 | 150# | Threaded | 316 Stainless | $2.44 | | ||
| 3/8 | Hex Bushing | 1/4 | 150# | Threaded | 316 Stainless | $2.44 | | ||
| 1/2 | Hex Bushing | 1/8 | 150# | Threaded | 304 Stainless | $2.64 | | ||
| 1/2 | Hex Bushing | 1/4 | 150# | Threaded | 304 Stainless | $2.64 | | ||
| 1/2 | Hex Bushing | 3/8 | 150# | Threaded | 304 Stainless | $2.64 | | ||
| 1/2 | Hex Bushing | 1/8 | 150# | Threaded | 316 Stainless | $2.89 | | ||
| 1/2 | Hex Bushing | 1/4 | 150# | Threaded | 316 Stainless | $2.89 | | ||
| 1/2 | Hex Bushing | 3/8 | 150# | Threaded | 316 Stainless | $2.89 | | ||
| 3/4 | Hex Bushing | 1/8 | 150# | Threaded | 304 Stainless | $3.85 | | ||
| 3/4 | Hex Bushing | 1/4 | 150# | Threaded | 304 Stainless | $3.85 | | ||
| 3/4 | Hex Bushing | 3/8 | 150# | Threaded | 304 Stainless | $3.85 | | ||
| 3/4 | Hex Bushing | 1/2 | 150# | Threaded | 304 Stainless | $3.85 | | ||
| 3/4 | Hex Bushing | 1/8 | 150# | Threaded | 316 Stainless | $4.26 | | ||
| 3/4 | Hex Bushing | 1/4 | 150# | Threaded | 316 Stainless | $4.26 | | ||
| 3/4 | Hex Bushing | 3/8 | 150# | Threaded | 316 Stainless | $4.26 | | ||
| 3/4 | Hex Bushing | 1/2 | 150# | Threaded | 316 Stainless | $4.26 | | ||
| 1 | Hex Bushing | 1/8 | 150# | Threaded | 304 Stainless | $5.36 | | ||
| 1 | Hex Bushing | 1/4 | 150# | Threaded | 304 Stainless | $5.36 | | ||
| 1 | Hex Bushing | 3/8 | 150# | Threaded | 304 Stainless | $5.36 | | ||
| 1 | Hex Bushing | 1/2 | 150# | Threaded | 304 Stainless | $5.36 | | ||
| 1 | Hex Bushing | 3/4 | 150# | Threaded | 304 Stainless | $5.36 | |
Product Info
Our 150 lb stainless steel cast hex bushings are available in 304 and 316 stainless steel and offered in a variety of sizes for almost any piping application. View our stainless steel products line card.Dimensions
The chart below lists the dimensions of our threaded hex bushings.
Dimensions in inches, from our data sheet. The column letters are the ones on the drawing. A dash means no value is listed.
The chart lists every size on our data sheet; 2" × 1/8", 4" × 1/2" and 4" × 3/4" are not in the product table. Call us for availability.
Scroll inside the chart to see every size.
| Size | A | L | D1 | D2 | D4 | h | h1 | (h2) |
|---|---|---|---|---|---|---|---|---|
| 1/4" × 1/8" | 0.67 | 0.59 | 1/4" | 0.33 | 1/8" | 0.89 | 0.67 | 0.22 |
| 3/8" × 1/8" | 0.87 | 0.59 | 3/8" | 0.43 | 1/8" | 0.91 | 0.67 | 0.24 |
| 3/8" × 1/4" | 0.87 | – | 3/8" | 0.43 | 1/4" | 0.91 | 0.67 | 0.24 |
| 1/2" × 1/8" | 1.02 | 0.67 | 1/2" | 0.57 | 1/8" | 1.00 | 0.79 | 0.22 |
| 1/2" × 1/4" | 1.02 | 0.67 | 1/2" | 0.57 | 1/4" | 1.00 | 0.79 | 0.22 |
| 1/2" × 3/8" | 1.02 | – | 1/2" | 0.57 | 3/8" | 1.00 | 0.79 | 0.22 |
| 3/4" × 1/8" | 1.26 | 0.69 | 3/4" | 0.71 | 1/8" | 1.04 | 0.79 | 0.26 |
| 3/4" × 1/4" | 1.26 | 0.69 | 3/4" | 0.71 | 1/4" | 1.04 | 0.79 | 0.26 |
| 3/4" × 3/8" | 1.26 | 0.69 | 3/4" | 0.71 | 3/8" | 1.04 | 0.79 | 0.26 |
| 3/4" × 1/2" | 1.26 | – | 3/4" | 0.71 | 1/2" | 1.04 | 0.79 | 0.26 |
| 1" × 1/8" | 1.50 | 0.96 | 1" | 1.02 | 1/8" | 1.32 | 1.00 | 0.31 |
| 1" × 1/4" | 1.50 | 0.96 | 1" | 1.02 | 1/4" | 1.32 | 1.00 | 0.31 |
| 1" × 3/8" | 1.50 | 0.96 | 1" | 1.02 | 3/8" | 1.32 | 1.00 | 0.31 |
| 1" × 1/2" | 1.50 | 0.87 | 1" | 1.02 | 1/2" | 1.32 | 1.00 | 0.31 |
| 1" × 3/4" | 1.50 | 0.81 | 1" | 1.02 | 3/4" | 1.32 | 1.00 | 0.31 |
| 1-1/4" × 1/8" | 1.81 | 1.02 | 1-1/4" | 1.38 | 1/8" | 1.34 | 1.02 | 0.31 |
| 1-1/4" × 1/4" | 1.81 | 0.96 | 1-1/4" | 1.38 | 1/4" | 1.34 | 1.02 | 0.31 |
| 1-1/4" × 3/8" | 1.81 | 0.96 | 1-1/4" | 1.38 | 3/8" | 1.34 | 1.02 | 0.31 |
| 1-1/4" × 1/2" | 1.81 | 0.91 | 1-1/4" | 1.38 | 1/2" | 1.34 | 1.02 | 0.31 |
| 1-1/4" × 3/4" | 1.81 | 0.83 | 1-1/4" | 1.38 | 3/4" | 1.34 | 1.02 | 0.31 |
| 1-1/4" × 1" | 1.81 | 0.77 | 1-1/4" | 1.38 | 1" | 1.34 | 1.02 | 0.31 |
| 1-1/2" × 1/8" | 2.05 | 1.06 | 1-1/2" | 1.57 | 1/8" | 1.42 | 1.02 | 0.39 |
| 1-1/2" × 1/4" | 2.05 | 1.06 | 1-1/2" | 1.57 | 1/4" | 1.42 | 1.02 | 0.39 |
| 1-1/2" × 3/8" | 2.05 | 1.02 | 1-1/2" | 1.57 | 3/8" | 1.42 | 1.02 | 0.39 |
| 1-1/2" × 1/2" | 2.05 | 0.94 | 1-1/2" | 1.57 | 1/2" | 1.42 | 1.02 | 0.39 |
| 1-1/2" × 3/4" | 2.05 | 0.91 | 1-1/2" | 1.57 | 3/4" | 1.42 | 1.02 | 0.39 |
| 1-1/2" × 1" | 2.05 | 0.83 | 1-1/2" | 1.57 | 1" | 1.42 | 1.02 | 0.39 |
| 1-1/2" × 1-1/4" | 2.05 | 0.73 | 1-1/2" | 1.57 | 1-1/4" | 1.42 | 1.02 | 0.39 |
| 2" × 1/8" | 2.48 | 1.10 | 2" | 2.01 | 1/8" | 1.42 | 1.00 | 0.41 |
| 2" × 1/4" | 2.48 | 1.06 | 2" | 2.01 | 1/4" | 1.42 | 1.00 | 0.41 |
| 2" × 3/8" | 2.48 | 1.06 | 2" | 2.01 | 3/8" | 1.42 | 1.00 | 0.41 |
| 2" × 1/2" | 2.48 | 0.98 | 2" | 2.01 | 1/2" | 1.42 | 1.00 | 0.41 |
| 2" × 3/4" | 2.48 | 0.91 | 2" | 2.01 | 3/4" | 1.42 | 1.00 | 0.41 |
| 2" × 1" | 2.48 | 0.87 | 2" | 2.01 | 1" | 1.42 | 1.00 | 0.41 |
| 2" × 1-1/4" | 2.48 | 0.79 | 2" | 2.01 | 1-1/4" | 1.42 | 1.00 | 0.41 |
| 2" × 1-1/2" | 2.48 | 0.79 | 2" | 2.01 | 1-1/2" | 1.42 | 1.00 | 0.41 |
| 2-1/2" × 1/2" | 3.15 | 1.52 | 2-1/2" | 2.48 | 1/2" | 1.93 | 1.46 | 0.47 |
| 2-1/2" × 3/4" | 3.15 | 1.44 | 2-1/2" | 2.48 | 3/4" | 1.93 | 1.46 | 0.47 |
| 2-1/2" × 1" | 3.15 | 1.36 | 2-1/2" | 2.48 | 1" | 1.93 | 1.46 | 0.47 |
| 2-1/2" × 1-1/4" | 3.15 | 1.24 | 2-1/2" | 2.48 | 1-1/4" | 1.93 | 1.46 | 0.47 |
| 2-1/2" × 1-1/2" | 3.15 | 1.18 | 2-1/2" | 2.48 | 1-1/2" | 1.93 | 1.46 | 0.47 |
| 2-1/2" × 2" | 3.15 | 1.14 | 2-1/2" | 2.48 | 2" | 1.93 | 1.46 | 0.47 |
| 3" × 1/2" | 3.74 | 1.54 | 3" | 3.03 | 1/2" | 1.97 | 1.46 | 0.51 |
| 3" × 3/4" | 3.74 | 1.46 | 3" | 3.03 | 3/4" | 1.97 | 1.46 | 0.51 |
| 3" × 1" | 3.74 | 1.38 | 3" | 3.03 | 1" | 1.97 | 1.46 | 0.51 |
| 3" × 1-1/4" | 3.74 | 1.26 | 3" | 3.03 | 1-1/4" | 1.97 | 1.46 | 0.51 |
| 3" × 1-1/2" | 3.74 | 1.22 | 3" | 3.03 | 1-1/2" | 1.97 | 1.46 | 0.51 |
| 3" × 2" | 3.74 | 1.18 | 3" | 3.03 | 2" | 1.97 | 1.46 | 0.51 |
| 3" × 2-1/2" | 3.74 | 1.02 | 3" | 3.03 | 2-1/2" | 1.97 | 1.46 | 0.51 |
| 4" × 1/2" | 4.72 | 1.57 | 4" | 3.98 | 1/2" | 2.01 | 1.46 | 0.55 |
| 4" × 3/4" | 4.72 | 1.52 | 4" | 3.98 | 3/4" | 2.01 | 1.46 | 0.55 |
| 4" × 1" | 4.72 | 1.42 | 4" | 3.98 | 1" | 2.01 | 1.46 | 0.55 |
| 4" × 1-1/4" | 4.72 | 1.32 | 4" | 3.98 | 1-1/4" | 2.01 | 1.46 | 0.55 |
| 4" × 1-1/2" | 4.72 | 1.26 | 4" | 3.98 | 1-1/2" | 2.01 | 1.46 | 0.55 |
| 4" × 2" | 4.72 | 1.22 | 4" | 3.98 | 2" | 2.01 | 1.46 | 0.55 |
| 4" × 2-1/2" | 4.72 | 1.10 | 4" | 3.98 | 2-1/2" | 2.01 | 1.46 | 0.55 |
| 4" × 3" | 4.72 | 1.02 | 4" | 3.98 | 3" | 2.01 | 1.46 | 0.55 |
Standard Specifications
Bushings generally conform to ASA B16.3 and pipe threads conform to ASA B2.1 standard for manufacturing. View the standard specifications chart.Stainless Steel Grades
Review the various grades of stainless steel.Reference Catalog
View thousands of stainless steel pipe and tubing products and various custom fabrication services Shaw Stainless offers. This Reference Catalog identifies stainless steel cast bushings and other stainless steel pipe fittings with specification charts and illustrations.Additional Info
A bushing is a metal sleeve with male threads on the outside and female threads on the inside. The hex head is used so a wrench can connect, tighten, loosen and disconnect the bushing when needed. Some SS hex bushings are manufactured for high pressure applications.Frequently Asked Questions
What sizes of 150 lb cast hex bushings do you carry?
The product table on this page lists 304 and 316 stainless steel 150 lb cast hex bushings, threaded (NPT), from 1/4" × 1/8" to 4" × 3". For other sizes or alloys, call (800) 282-9694 or send us a message.
How do I read a hex bushing size such as 1" × 1/2"?
The first number is the male (outside) thread, D1 in the chart, and the second is the female (inside) thread, D4. Column h is the overall length: a 1" × 1/2" hex bushing measures 1.32".
What is a hex bushing?
A metal sleeve with male threads on the outside and female threads on the inside. The hex head lets a wrench tighten or loosen it.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
