Sanitary Clamp Sch 10 Long Ferrules

Sanitary Clamp Sch 10 Long Ferrules
Sanitary Clamp Sch 10 Long Ferrules

Sanitary Clamp Sch 10 Long Ferrules

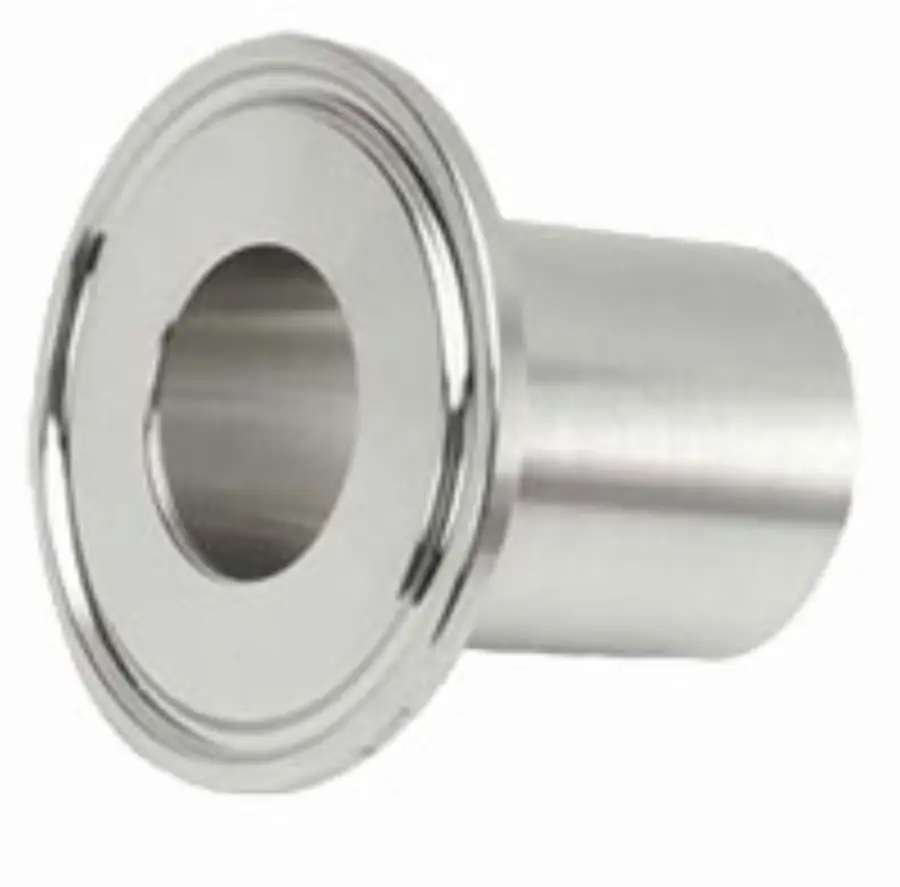

The product table below lists 316L stainless steel sanitary clamp Sch 10 long ferrules, from 1" to 4" (pipe sizes). A dimension chart follows the table.

Get a price: the product table below lists prices; for a size or grade that is not listed, call (800) 282-9694 or send us a message.

Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for clamp fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions.
Sizes: 1" - 4" pipe sizes
End Connections: Clamp
Grades: 316L
Product Information Dimensional Data Standard Specifications Stainless Steel Grades Reference Catalog Additional Information FAQ

Subcategories

180 Degree U-Bend3-Pc Segmented Clamp45 Degree Elbow45 Degree Lateral90 Degree ElbowAdapterASME Tank FerruleASME Tank Long FerruleConcentric ReducerCrossDouble Hinged Heavy Duty ClampDouble Hinged Heavy Duty Wing Nut ClampEccentric ReducerFlanged GasketGasketHeavy Duty ClampHeavy Duty Wing Nut ClampHigh Pressure ClampHinged Clamp Light DutyLong FerruleRecessless FerruleReducing 90 Non-Tapered ElbowReducing AdapterReducing Rubber Hose AdapterReducing TeeRubber Hose AdapterSch 10 Long FerruleSch 10 Short FerruleSch 5 CapSch 5 ClampSch 5 GasketSch 5 Long FerruleSch 5 Short FerruleShort FerruleShort Reducing FerruleSolid End CapTank Welding FerruleTank Welding Long FerruleTeeThermometer CapTrue YTygon Hose Adapter
Filter Products
Tube OD
End Type
Alt Size
Material
Sort by Tube OD (low to high)
6 Products 6 Products 6 Product No results found
25 Per Page
Filters Sort results
Reset Apply
Tube OD
Product Type
End Type
Alt Size
Material
Price
Quantity
1
Sch 10 Long Ferrule
Clamp
316 Stainless Steel
$42.22
Max:
Min: 1
Step: 1
View
Add to Cart
1 1/2
Sch 10 Long Ferrule
Clamp
316 Stainless Steel
$52.28
Max:
Min: 1
Step: 1
View
Add to Cart
2
Sch 10 Long Ferrule
Clamp
316 Stainless Steel
$84.55
Max:
Min: 1
Step: 1
View
Add to Cart
2 1/2
Sch 10 Long Ferrule
Clamp
316 Stainless Steel
$117.65
Max:
Min: 1
Step: 1
View
Add to Cart
3
Sch 10 Long Ferrule
Clamp
316 Stainless Steel
$137.69
Max:
Min: 1
Step: 1
View
Add to Cart
4
Sch 10 Long Ferrule
Clamp
316 Stainless Steel
$245.15
Max:
Min: 1
Step: 1
View
Add to Cart

Product Info

We house a huge inventory of sanitary clamp fittings in 304 and 316L stainless steel. From adapters and elbows to clamps and ferrules, we have a complete inventory of stainless steel sanitary clamp sch 10 long ferrules to meet your specified needs. View our full line of stainless steel products.

Dimensions

We have a large stainless steel sanitary clamp sch 10 long ferrules inventory to meet our customers specifications. The chart below lists their dimensions.

Dimensions in inches, from our sanitary clamp fitting data sheet. The columns use the letters on the drawing.

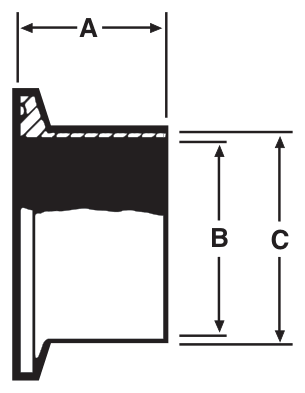

Drawing of a sanitary clamp Sch 10 long ferrule from our data sheet, with its dimension letters
Drawing from our data sheet.
Sch 10 Long Ferrules (Shaw EG14AM7-10-6L): Dimensions (Inches)
Pipe SizeABCNom. Wall
1"1.1251.0971.3150.109
1-1/2"1.1251.6821.9000.109
2"1.1252.1572.3750.109
2-1/2"1.1252.6352.8750.120
3"1.1253.2603.5000.120
4"1.1254.2604.5000.120

Standard Specifications

We offer stainless steel sanitary clamp sch 10 long ferrules in a variety of sizes and specifications.

Stainless Steel Grades

Check out our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.

Reference Catalog

Our Reference Catalog is designed to identify our SS products including our stainless steel sanitary clamp sch 10 long ferrules. Specification charts and general dimensional illustrations aid in identifying products.

Additional Info

Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for Clamp Fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions.

Frequently Asked Questions

What sizes of sanitary clamp Sch 10 long ferrules do you carry?

The product table on this page lists 316L stainless steel sanitary clamp Sch 10 long ferrules, from 1" to 4". For other sizes or grades, call (800) 282-9694 or send us a message.

How are Sch 10 ferrules sized?

By pipe size: our data sheet heads their size column "Pipe" (Pipe Size in our chart), and the wall column (Nom. Wall) gives the wall, for example 0.109" at 2". See also our Sch 5 long ferrules.

How do I get a price?

Prices are listed in the product table on this page. For a size or grade that is not listed, call (800) 282-9694 or send us a message.
