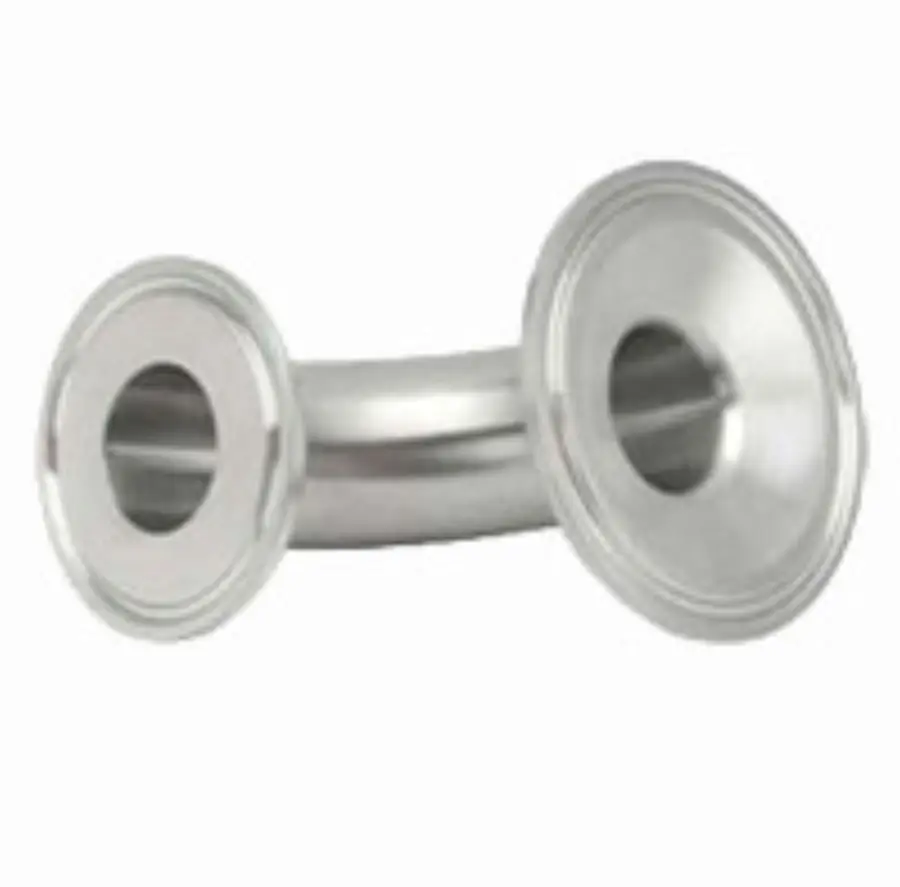

Sanitary Clamp Reducing 90 Non-Tapered Elbows
Sanitary Clamp Reducing 90 Non-Tapered Elbows
The product table below lists 304 and 316L stainless steel sanitary clamp reducing 90° non-tapered elbows with clamp and clamp × bevel ends, in 10 size combinations, from 2" × 1" to 6" × 4". Dimension charts follow the table.
Get a price: the product table below lists prices; for a size or grade that is not listed, call (800) 282-9694 or send us a message.
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for clamp fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Sanitary clamp fittings meet all 3A requirements.End Connections: Clamp - Clamp x Bevel
Grades: 304 - 316L
Filter Products
Tube OD | Product Type | End Type | Alt Size | Material | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 2 | Reducing 90 Non-Tapered Elbow | Clamp | 1 1/2 | 304 Stainless Steel | $118.51 | | ||
| 2 | Reducing 90 Non-Tapered Elbow | Clamp | 1 1/2 | 316 Stainless Steel | $152.20 | | ||
| 2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 1 1/2 | 304 Stainless Steel | $212.02 | | ||
| 2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 1 1/2 | 316 Stainless Steel | $217.88 | | ||
| 2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 1 1/2 | 304 Stainless Steel | $212.02 | | ||
| 2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 1 1/2 | 316 Stainless Steel | $217.88 | | ||
| 2 | Reducing 90 Non-Tapered Elbow | Clamp | 1 | 304 Stainless Steel | $122.08 | | ||
| 2 | Reducing 90 Non-Tapered Elbow | Clamp | 1 | 316 Stainless Steel | $189.54 | | ||
| 2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 1 | 304 Stainless Steel | $217.53 | | ||
| 2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 1 | 316 Stainless Steel | $222.01 | | ||
| 2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 1 | 304 Stainless Steel | $217.53 | | ||
| 2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 1 | 316 Stainless Steel | $222.01 | | ||
| 2 1/2 | Reducing 90 Non-Tapered Elbow | Clamp | 1 1/2 | 304 Stainless Steel | $130.62 | | ||
| 2 1/2 | Reducing 90 Non-Tapered Elbow | Clamp | 1 1/2 | 316 Stainless Steel | $205.87 | | ||
| 2 1/2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 1 1/2 | 304 Stainless Steel | $239.66 | | ||
| 2 1/2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 1 1/2 | 316 Stainless Steel | $251.64 | | ||
| 2 1/2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 1 1/2 | 304 Stainless Steel | $239.66 | | ||
| 2 1/2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 1 1/2 | 316 Stainless Steel | $251.64 | | ||
| 2 1/2 | Reducing 90 Non-Tapered Elbow | Clamp | 2 | 304 Stainless Steel | $143.26 | | ||
| 2 1/2 | Reducing 90 Non-Tapered Elbow | Clamp | 2 | 316 Stainless Steel | $271.95 | | ||
| 2 1/2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 2 | 304 Stainless Steel | $244.00 | | ||
| 2 1/2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 2 | 316 Stainless Steel | $261.02 | | ||
| 2 1/2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 2 | 304 Stainless Steel | $244.00 | | ||
| 2 1/2 | Reducing 90 Non-Tapered Elbow | Clamp x Bevel | 2 | 316 Stainless Steel | $261.02 | | ||
| 3 | Reducing 90 Non-Tapered Elbow | Clamp | 1 1/2 | 304 Stainless Steel | $174.31 | |
Product Info
We house a huge inventory of sanitary clamp fittings in 304 and 316L stainless steel. From adapters and elbows to clamps and ferrules, we have a complete inventory of stainless steel sanitary clamp reducing 90 non tapered elbows to meet your specified needs. View our full line of stainless steel products.Dimensions
Dimensions in inches, from our sanitary clamp fitting data sheet. The columns use the letters on the drawing. Each chart uses its own drawing's letters.
Charts on this page: Clamp · Clamp × Bevel Ferrule With Nut · Clamp × Bevel
Clamp
| Tube OD | A | B |
|---|---|---|
| 2" × 1" | 2.000 | 2.000 |
| 2" × 1-1/2" | 2.750 | 2.750 |
| 2-1/2" × 1-1/2" | 2.750 | 2.750 |
| 2-1/2" × 2" | 3.500 | 3.500 |
| 3" × 1-1/2" | 2.750 | 2.750 |
| 3" × 2" | 3.500 | 3.500 |
| 3" × 2-1/2" | 4.250 | 4.250 |
| 4" × 2-1/2" | 4.250 | 4.375 |
| 4" × 3" | 5.000 | 5.125 |
| 6" × 4" | 6.625 | 6.875 |
Clamp × Bevel Ferrule With Nut
| Tube OD | A | B |
|---|---|---|
| 2" × 1" | 2.000 | 2.187 |
| 2" × 1-1/2" | 2.750 | 2.968 |
| 2-1/2" × 1-1/2" | 2.750 | 2.968 |
| 2-1/2" × 2" | 3.500 | 3.718 |
| 3" × 1-1/2" | 2.750 | 2.968 |
| 3" × 2" | 3.500 | 3.718 |
| 3" × 2-1/2" | 4.250 | 4.593 |
| 4" × 2-1/2" | 4.375 | 4.593 |
| 4" × 3" | 5.125 | 5.406 |
Clamp × Bevel
| Tube OD | A | B |
|---|---|---|
| 2" × 1" | 2.000 | 2.250 |
| 2" × 1-1/2" | 2.750 | 3.000 |
| 2-1/2" × 1-1/2" | 2.750 | 3.031 |
| 2-1/2" × 2" | 3.500 | 3.781 |
| 3" × 1-1/2" | 2.750 | 3.593 |
| 3" × 2" | 3.500 | 3.843 |
| 3" × 2-1/2" | 4.250 | 4.593 |
| 4" × 2-1/2" | 4.250 | 4.687 |
| 4" × 3" | 5.000 | 5.437 |
Standard Specifications
We offer stainless steel sanitary clamp reducing 90 non tapered elbows in a variety of sizes and specifications.Stainless Steel Grades
Check out our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our SS products including our stainless steel sanitary clamp reducing 90 non tapered elbows. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for Clamp Fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Clamp Fittings meet all 3A requirements.Frequently Asked Questions
What sizes of sanitary clamp reducing 90° non-tapered elbows do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary clamp reducing 90° non-tapered elbows with clamp and clamp × bevel ends, in 10 size combinations, from 2" × 1" to 6" × 4". For other sizes or grades, call (800) 282-9694 or send us a message.
Why does this page have three charts?
Our data sheet charts one clamp reducing elbow and two clamp × bevel reducing elbows, each with its own drawing: EG231-FPR, whose drawing shows a hex nut on the bevel end, and EG2C31PR, whose drawing shows a plain bevel. Each chart uses the letters on its own drawing.
Which clamp × bevel chart matches an item in the product table?
Open the item (View): its page shows its part number (SKU), starting SAEG231FPR or SAEG2C31PR. On a phone the product table also shows the names: the EG231-FPR elbows are named … 90 Degree Reducing Non-Tapered Elbow Clamp x Bevel … and the EG2C31PR elbows … Clamp x Bevel Reducing 90 Degree Non-Tapered Elbow …. Their dimensions differ at most sizes, so if you are not sure which one you need, call (800) 282-9694 or send us a message.
How do I get a price?
Prices are listed in the product table on this page. For a size or grade that is not listed, call (800) 282-9694 or send us a message.
