Stainless Steel Raised Face Socket Weld Flanges
Stainless Steel Raised Face Socket Weld Flanges
The product table below lists 304 and 316 stainless steel raised face socket weld flanges from 1/2" to 4" in Class 150 and Class 300; ask us about other sizes and classes. Dimension and drilling charts follow the table.
Get a price: the product table below lists prices; if an item shows Quote, call (800) 282-9694 or send us a message.

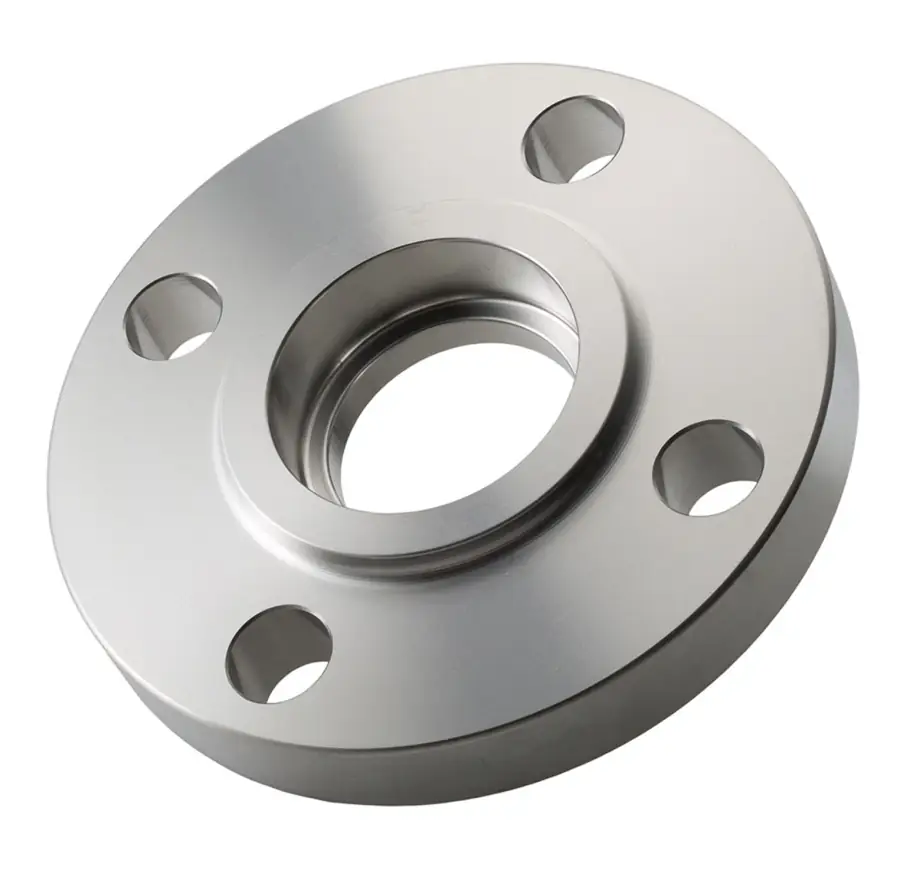

We carry a full line of stainless steel raised face socket weld flanges, which take the end of the pipe in a socket and are welded to it. Our flange experts can help identify which flange is right for your application.Sizes: 1/2" - 36" +
Bores: S/5s - XXH
Pressures: 150 - 300 - 600
Alloys: Stainless - Carbon - Aluminum
Filter Products
Size | Product Type | Pressure | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1/2 | Raised Face Socket Weld | 150# | 304 Stainless Steel | $52.99 | | ||
| 1/2 | Raised Face Socket Weld | 150# | 316 Stainless Steel | $80.01 | | ||
| 1/2 | Raised Face Socket Weld | 300# | 304 Stainless Steel | $89.46 | | ||
| 1/2 | Raised Face Socket Weld | 300# | 316 Stainless Steel | $124.81 | | ||
| 3/4 | Raised Face Socket Weld | 150# | 304 Stainless Steel | $58.87 | | ||
| 3/4 | Raised Face Socket Weld | 150# | 316 Stainless Steel | $85.99 | | ||
| 3/4 | Raised Face Socket Weld | 300# | 304 Stainless Steel | $89.46 | | ||
| 3/4 | Raised Face Socket Weld | 300# | 316 Stainless Steel | $124.81 | | ||
| 1 | Raised Face Socket Weld | 150# | 304 Stainless Steel | $68.24 | | ||
| 1 | Raised Face Socket Weld | 300# | 304 Stainless Steel | $89.46 | | ||
| 1 | Raised Face Socket Weld | 150# | 316 Stainless Steel | $98.91 | | ||
| 1 | Raised Face Socket Weld | 300# | 316 Stainless Steel | $124.81 | | ||
| 1 1/4 | Raised Face Socket Weld | 150# | 304 Stainless Steel | $97.72 | | ||
| 1 1/4 | Raised Face Socket Weld | 150# | 316 Stainless Steel | $137.73 | | ||
| 1 1/4 | Raised Face Socket Weld | 300# | 304 Stainless Steel | $138.81 | | ||
| 1 1/4 | Raised Face Socket Weld | 300# | 316 Stainless Steel | $187.16 | | ||
| 1 1/2 | Raised Face Socket Weld | 150# | 304 Stainless Steel | $97.72 | | ||
| 1 1/2 | Raised Face Socket Weld | 150# | 316 Stainless Steel | $137.73 | | ||
| 1 1/2 | Raised Face Socket Weld | 300# | 304 Stainless Steel | $138.81 | | ||
| 1 1/2 | Raised Face Socket Weld | 300# | 316 Stainless Steel | $198.94 | | ||
| 2 | Raised Face Socket Weld | 150# | 304 Stainless Steel | $108.33 | | ||
| 2 | Raised Face Socket Weld | 150# | 316 Stainless Steel | $149.53 | | ||
| 2 | Raised Face Socket Weld | 300# | 316 Stainless Steel | $202.47 | | ||
| 2 | Raised Face Socket Weld | 300# | 304 Stainless Steel | $247.14 | | ||
| 2 1/2 | Raised Face Socket Weld | 300# | 304 Stainless Steel | |
Product Info
We have an extensive inventory of stainless steel raised face socket weld flanges to compliment our pipe products. Most of our high quality, flanges and gasket kits are ready to ship upon request. Speak to one of our flange specialists to discuss which flange products are available to meet your specifications. View an overview of our stainless steel product offerings.Dimensions
Standard Specifications
ANSI flanges meet ASTM-ASME A182 material specification and ASA B16.5 dimensional specification. View the standard specifications.Stainless Steel Grades
Learn about our stainless steel inventory, functionality and application of our various grades of stainless steel.Reference Catalog
We engineered our product Reference Catalog for you to easily identify all of our products. The catalog includes specification charts and general dimensional illustrations to help you identify available and needed products.Additional Info
Stainless steel raised face socket weld flanges take the end of the pipe in a socket. The raised face is engineered to concentrate more pressure to a smaller area on the flange, which provides an increased containment capability at higher pressures. The flange needs to be welded to the pipe. Socket weld flanges were originally designed for smaller, high pressure pipe.Frequently Asked Questions
What sizes of raised face socket weld flanges do you carry?
The product table on this page lists 304 and 316 stainless steel raised face socket weld flanges from 1/2" to 4" in Class 150 and Class 300. For other sizes, classes or alloys, call (800) 282-9694 or send us a message.
What are the dimensions of a 1" Class 150 socket weld flange?
A 1" Class 150 raised face socket weld flange is 4.25" OD and 0.56" thick (including the 1/16" raised face), with a 0.50" deep socket, a minimum socket bore of 1.36", a 1.05" bore B1, and four 1/2" bolts on a 3.12" bolt circle. It weighs about 2 lb.
How deep is the socket?
It depends on the size: from 0.38" at 1/2" to 0.81" at 3". ASME B16.5 sets socket depth only for sizes up to 3"; above that it is up to the manufacturer. For 3-1/2" and 4", our Class 150 chart lists 0.88" and 0.94" from our data sheet (marked ‡); our Class 300 data sheet lists none.
What specifications do your socket weld flanges meet?
Our ANSI flanges meet the ASTM-ASME A182 material specification and the ASA B16.5 dimensional specification.
How do I get a price?
Prices are listed in the product table on this page. If an item shows Quote, or you need a size or class that is not listed, call (800) 282-9694 or send us a message.
