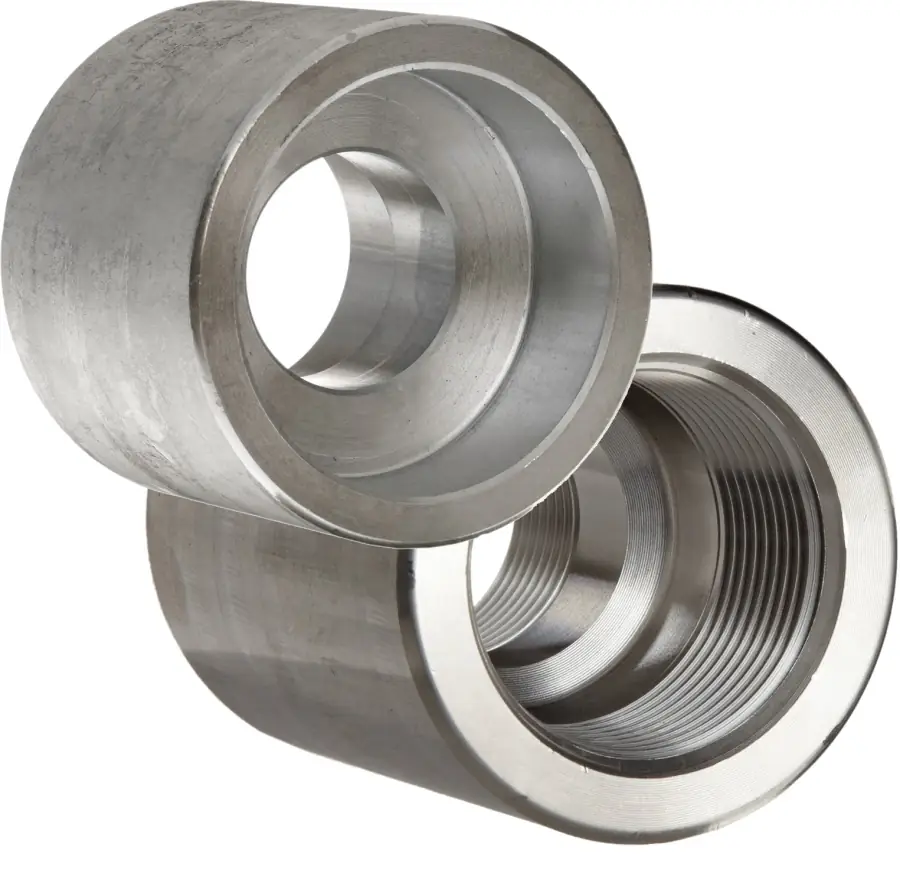

3000 lb Stainless Steel Forged Reducing Couplings

3000 lb Stainless Steel Forged Reducing Couplings

The product table below lists 304 and 316 stainless steel 3000 lb forged reducing couplings, threaded and socket weld, with large ends from 1/2" to 2" and small ends from 1/4" to 1-1/2". Dimension charts follow the table.

Get a price: the product table below lists prices; for a size, end connection or grade that is not listed, call (800) 282-9694 or send us a message.

Our 3000# stainless steel forged reducing couplings are of high quality, corrosion resistant and available in multiple sizes to fit your pipe coupling needs.
Sizes: 1/4" - 2"
Pressure: Class 3000
End Connections: Threaded - Socket Weld
Grades: 304 - 316
Filter Products
Size
Reducing Size
Grade
Sort by Size (low to high)
84 Products 84 Products 84 Product No results found
25 Per Page
Filters Sort results
Reset Apply
Size
Product Type
Reducing
Pressure
End Type
Grade
Price
Quantity
1/2
Reducing Coupling
1/4
3000#
Socket Weld
304 Stainless
$12.61
Max:
Min: 1
Step: 1
1/2
Reducing Coupling
1/4
3000#
Socket Weld
316 Stainless
$17.75
Max:
Min: 1
Step: 1
1/2
Reducing Coupling
1/4
3000#
Threaded
304 Stainless
$12.94
Max:
Min: 1
Step: 1
1/2
Reducing Coupling
1/4
3000#
Threaded
316 Stainless
$15.64
Max:
Min: 1
Step: 1
1/2
Reducing Coupling
3/8
3000#
Socket Weld
304 Stainless
$12.61
Max:
Min: 1
Step: 1
1/2
Reducing Coupling
3/8
3000#
Socket Weld
316 Stainless
$17.75
Max:
Min: 1
Step: 1
1/2
Reducing Coupling
3/8
3000#
Threaded
304 Stainless
$12.94
Max:
Min: 1
Step: 1
1/2
Reducing Coupling
3/8
3000#
Threaded
316 Stainless
$15.64
Max:
Min: 1
Step: 1
3/4
Reducing Coupling
1/2
3000#
Socket Weld
304 Stainless
$16.61
Max:
Min: 1
Step: 1
3/4
Reducing Coupling
1/2
3000#
Socket Weld
316 Stainless
$24.61
Max:
Min: 1
Step: 1
3/4
Reducing Coupling
1/2
3000#
Threaded
304 Stainless
$18.28
Max:
Min: 1
Step: 1
3/4
Reducing Coupling
1/2
3000#
Threaded
316 Stainless
$21.52
Max:
Min: 1
Step: 1
3/4
Reducing Coupling
1/4
3000#
Socket Weld
304 Stainless
$16.61
Max:
Min: 1
Step: 1
3/4
Reducing Coupling
1/4
3000#
Socket Weld
316 Stainless
$24.61
Max:
Min: 1
Step: 1
3/4
Reducing Coupling
1/4
3000#
Threaded
304 Stainless
$18.28
Max:
Min: 1
Step: 1
3/4
Reducing Coupling
1/4
3000#
Threaded
316 Stainless
$21.52
Max:
Min: 1
Step: 1
3/4
Reducing Coupling
3/8
3000#
Socket Weld
304 Stainless
$16.61
Max:
Min: 1
Step: 1
3/4
Reducing Coupling
3/8
3000#
Socket Weld
316 Stainless
$24.61
Max:
Min: 1
Step: 1
3/4
Reducing Coupling
3/8
3000#
Threaded
304 Stainless
$18.28
Max:
Min: 1
Step: 1
3/4
Reducing Coupling
3/8
3000#
Threaded
316 Stainless
$21.52
Max:
Min: 1
Step: 1
1
Reducing Coupling
1/2
3000#
Socket Weld
304 Stainless
$27.46
Max:
Min: 1
Step: 1
1
Reducing Coupling
1/2
3000#
Socket Weld
316 Stainless
$29.06
Max:
Min: 1
Step: 1
1
Reducing Coupling
1/2
3000#
Threaded
304 Stainless
$25.82
Max:
Min: 1
Step: 1
1
Reducing Coupling
1/2
3000#
Threaded
316 Stainless
$35.73
Max:
Min: 1
Step: 1
1
Reducing Coupling
1/4
3000#
Socket Weld
304 Stainless
$27.46
Max:
Min: 1
Step: 1
1234

Product Info

Our 304 and 316 stainless 3000 lb forged reducing couplings are available in a variety of sizes to fit any piping configuration. We also carry an inventory of full and half couplings. Our inventory includes: threaded reducing couplings and socket weld reducing couplings. We can accommodate any need with our wide-ranging and hard to find sizes. Great stainless steel strength and corrosion resistance for many applications in harsh environments. View our stainless steel product line card.

Dimensions

Dimensions in inches, from our forged fitting data sheets. The columns use the letters on our drawings; not every drawing marks every letter. The threaded and socket weld drawings use some of the same letters for different dimensions.

Charts on this page: Threaded · Socket Weld

Threaded

Drawing of a threaded forged reducing coupling from our data sheet, with its dimension letters
Drawing from our data sheet. Open the drawing full size.
Reducing Couplings, Threaded: Dimensions (Inches)
SizeLDdd1L1L2L3
1/4" × 1/8"1.380.750.440.320.500.350.69
3/8" × 1/8"1.500.870.570.320.520.350.75
3/8" × 1/4"1.500.870.570.440.520.500.75
1/2" × 1/4"1.891.100.680.440.680.500.94
1/2" × 3/8"1.891.100.680.570.680.520.94
3/4" × 3/8"2.011.380.890.570.700.521.00
3/4" × 1/2"2.011.380.890.680.700.681.00
1" × 3/8"2.361.731.120.570.830.521.18
1" × 1/2"2.361.731.120.680.830.681.18
1" × 3/4"2.361.731.120.890.830.701.18
1-1/4" × 1/2"2.642.241.460.680.850.681.32
1-1/4" × 3/4"2.642.241.460.890.850.701.32
1-1/4" × 1"2.642.241.461.120.850.831.32
1-1/2" × 1/2"3.112.521.700.680.850.681.56
1-1/2" × 3/4"3.112.521.700.890.850.701.56
1-1/2" × 1"3.112.521.701.120.850.831.56
1-1/2" × 1-1/4"3.112.521.701.460.850.851.56
2" × 3/4"3.392.992.170.890.870.701.69
2" × 1"3.392.992.171.120.870.831.69
2" × 1-1/4"3.392.992.171.460.870.851.69
2" × 1-1/2"3.392.992.171.700.870.851.69
2-1/2" × 1"3.623.622.581.121.180.831.81
2-1/2" × 1-1/4"3.623.622.581.461.180.851.81
2-1/2" × 1-1/2"3.623.622.581.701.180.851.81
2-1/2" × 2"3.623.622.582.171.180.871.81
3" × 1"4.254.253.211.121.270.832.13
3" × 1-1/4"4.254.253.211.461.270.852.13
3" × 1-1/2"4.254.253.211.701.270.852.13
3" × 2"4.254.253.212.171.270.872.13
3" × 2-1/2"4.254.253.212.581.271.182.13
4" × 1-1/4"4.765.514.201.461.340.852.38
4" × 1-1/2"4.765.514.201.701.340.852.38
4" × 2"4.765.514.202.171.340.872.38
4" × 2-1/2"4.765.514.202.581.341.182.38

Swipe the chart sideways to see every column.

The chart includes sizes on our data sheet that are not in the product table above. Call us for availability.

Also in the product table above but not on our threaded data sheet: 3/4" × 1/4", 1" × 1/4" and 2" × 1/2" threaded reducing couplings. Call us for their dimensions.

Scroll inside the chart to see every size.

Socket Weld

Drawing of a socket weld forged reducing coupling from our data sheet, with its dimension letters
Drawing from our data sheet. Open the drawing full size.
Reducing Couplings, Socket Weld: Dimensions (Inches)
SizeB1B2DC
Min.
H
Min.
JEL
1/4" × 1/8"0.560.430.270.150.860.410.261.08
3/8" × 1/8"0.700.430.270.161.020.410.261.12
3/8" × 1/4"0.700.560.370.161.020.410.261.12
1/2" × 1/8"0.860.430.270.191.230.490.371.36
1/2" × 1/4"0.860.560.370.191.230.490.371.36
1/2" × 3/8"0.860.700.500.191.230.490.371.36
3/4" × 1/8"1.070.430.270.191.460.550.371.48
3/4" × 1/4"1.070.560.370.191.460.550.371.48
3/4" × 3/8"1.070.700.500.191.460.550.371.48
3/4" × 1/2"1.070.860.620.191.460.550.371.48
1" × 1/8"1.340.430.270.221.790.590.491.69
1" × 1/4"1.340.560.370.221.790.590.491.69
1" × 3/8"1.340.700.500.221.790.590.491.69
1" × 1/2"1.340.860.620.221.790.590.491.69
1" × 3/4"1.341.070.830.221.790.590.491.69
1-1/4" × 1/8"1.690.430.270.242.170.670.491.85
1-1/4" × 1/4"1.690.560.370.242.170.670.491.85
1-1/4" × 3/8"1.690.700.500.242.170.670.491.85
1-1/4" × 1/2"1.690.860.620.242.170.670.491.85
1-1/4" × 3/4"1.691.070.830.242.170.670.491.85
1-1/4" × 1"1.691.341.050.242.170.670.491.85
1-1/2" × 1/8"1.930.430.270.252.430.690.491.89
1-1/2" × 1/4"1.930.560.370.252.430.690.491.89
1-1/2" × 3/8"1.930.700.500.252.430.690.491.89
1-1/2" × 1/2"1.930.860.620.252.430.690.491.89
1-1/2" × 3/4"1.931.070.830.252.430.690.491.89
1-1/2" × 1"1.931.341.050.252.430.690.491.89
1-1/2" × 1-1/4"1.931.691.380.252.430.690.491.89
2" × 1/8"2.420.430.270.272.960.870.752.48
2" × 1/4"2.420.560.370.272.960.870.752.48
2" × 3/8"2.420.700.500.272.960.870.752.48
2" × 1/2"2.420.860.620.272.960.870.752.48
2" × 3/4"2.421.070.830.272.960.870.752.48
2" × 1"2.421.341.050.272.960.870.752.48
2" × 1-1/4"2.421.691.380.272.960.870.752.48
2" × 1-1/2"2.421.931.610.272.960.870.752.48
2-1/2" × 1-1/4"2.921.691.380.353.610.870.752.48
2-1/2" × 1-1/2"2.921.931.610.353.610.870.752.48
2-1/2" × 2"2.922.422.070.353.610.870.752.48
3" × 1-1/2"3.541.931.610.384.300.870.752.48
3" × 2"3.542.422.070.384.300.870.752.48
3" × 2-1/2"3.542.922.470.384.300.870.752.48
4" × 2"4.542.422.070.425.390.870.752.48
4" × 2-1/2"4.542.922.470.425.390.870.752.48
4" × 3"4.543.543.070.425.390.870.752.48

Swipe the chart sideways to see every column.

The chart includes sizes on our data sheet that are not in the product table above. Call us for availability.

Scroll inside the chart to see every size.

Standard Specifications

3000# couplings are manufactured in accordance with ASTM A182 for material and ANSI B16.11 for dimensional specifications.

Stainless Steel Grades

SS Forged Couplings available from Shaw Stainless. View the various grades of stainless steel.

Reference Catalog

View thousands of stainless steel pipe and tubing products. Our Reference Catalog identifies stainless steel pipe couplings and other pipe fittings through specification charts and illustrations. Some dimensions in the Reference Catalog differ from the charts on this page.

Additional Info

Forged couplings connect two pipes together. 3000# couplings can come threaded or socket weld. If two pipes being connected are not of the same size, a forged reducing coupling can be used. Couplings are a common fitting in a pipe system.

Frequently Asked Questions

What sizes of 3000 lb forged reducing couplings do you carry?

The product table on this page lists 304 and 316 stainless steel 3000 lb forged reducing couplings, threaded and socket weld, in 21 size combinations, with large ends from 1/2" to 2" and small ends from 1/4" to 1-1/2". For other sizes or grades, call (800) 282-9694 or send us a message.

Are all the sizes in the product table on your data sheet?

All but three: the 3/4" × 1/4", 1" × 1/4" and 2" × 1/2" threaded reducing couplings are not on our threaded data sheet. Call (800) 282-9694 or send us a message for their dimensions.

Why does this page have two charts?

Our data sheets have a threaded chart and a socket weld chart, each with its own drawing. Each chart uses the letters on its own drawing.

How do I get a price?

Prices are listed in the product table on this page. For a size, end connection or grade that is not listed, call (800) 282-9694 or send us a message.
