Sanitary Clamp 90 Degree Elbows
Sanitary Clamp 90 Degree Elbows

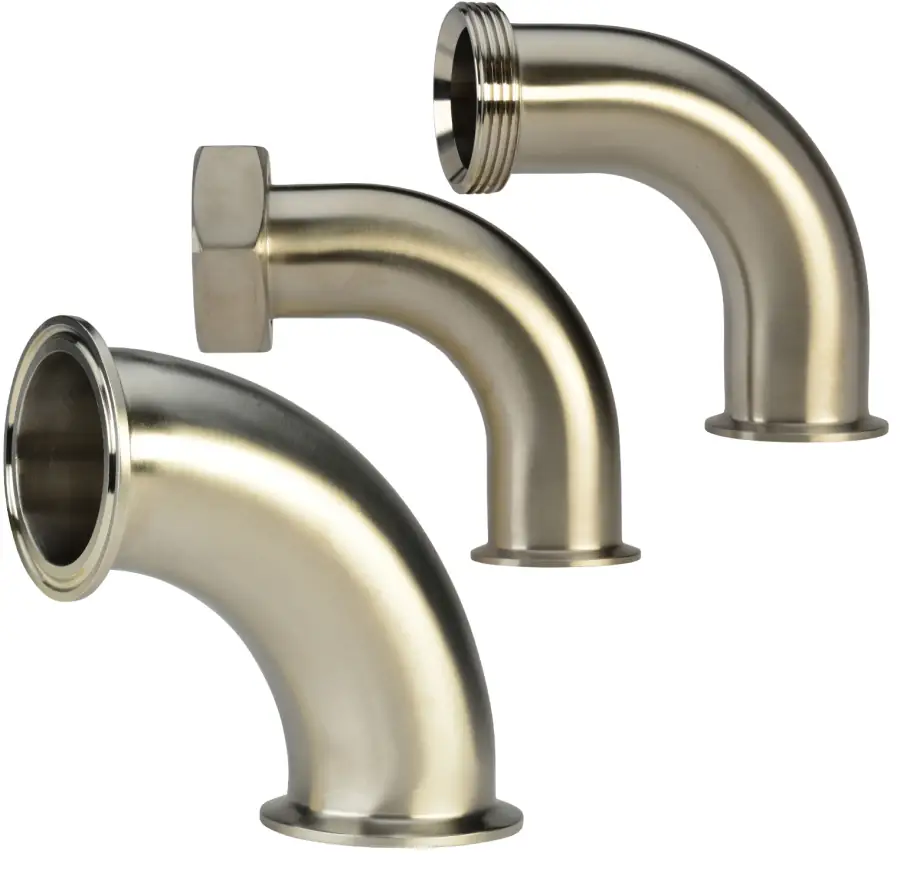

The product table below lists 304 and 316L stainless steel sanitary clamp 90° elbows with clamp, clamp × bevel and clamp × thread ends, from 1" to 8". Dimension charts follow the table.
Get a price: the product table below lists prices; for a size or grade that is not listed, call (800) 282-9694 or send us a message.
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for clamp fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Sanitary clamp fittings meet all 3A requirements.End Connections: Clamp - Clamp x Bevel - Clamp x Thread
Grades: 304 - 316L
Filter Products
Tube OD | Product Type | End Type | Alt Size | Material | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 90 Degree Elbow | Clamp | 304 Stainless Steel | $22.20 | | |||
| 1 | 90 Degree Elbow | Clamp | 316 Stainless Steel | $30.33 | | |||
| 1 | 90 Degree Elbow | Clamp x Bevel | 304 Stainless Steel | $88.47 | | |||
| 1 | 90 Degree Elbow | Clamp x Bevel | 316 Stainless Steel | $115.48 | | |||
| 1 | 90 Degree Elbow | Clamp x Thread | 304 Stainless Steel | $80.62 | | |||
| 1 | 90 Degree Elbow | Clamp x Thread | 316 Stainless Steel | $107.52 | | |||
| 1 1/2 | 90 Degree Elbow | Clamp | 304 Stainless Steel | $22.40 | | |||
| 1 1/2 | 90 Degree Elbow | Clamp | 316 Stainless Steel | $31.11 | | |||
| 1 1/2 | 90 Degree Elbow | Clamp x Bevel | 304 Stainless Steel | $88.47 | | |||
| 1 1/2 | 90 Degree Elbow | Clamp x Bevel | 316 Stainless Steel | $133.99 | | |||
| 1 1/2 | 90 Degree Elbow | Clamp x Thread | 304 Stainless Steel | $69.85 | | |||
| 1 1/2 | 90 Degree Elbow | Clamp x Thread | 316 Stainless Steel | $93.14 | | |||
| 2 | 90 Degree Elbow | Clamp | 304 Stainless Steel | $30.07 | | |||
| 2 | 90 Degree Elbow | Clamp | 316 Stainless Steel | $40.79 | | |||
| 2 | 90 Degree Elbow | Clamp x Bevel | 304 Stainless Steel | $117.65 | | |||
| 2 | 90 Degree Elbow | Clamp x Bevel | 316 Stainless Steel | $190.64 | | |||
| 2 | 90 Degree Elbow | Clamp x Thread | 304 Stainless Steel | $93.38 | | |||
| 2 | 90 Degree Elbow | Clamp x Thread | 316 Stainless Steel | $139.01 | | |||
| 2 1/2 | 90 Degree Elbow | Clamp | 304 Stainless Steel | $41.02 | | |||
| 2 1/2 | 90 Degree Elbow | Clamp | 316 Stainless Steel | $58.04 | | |||
| 2 1/2 | 90 Degree Elbow | Clamp x Bevel | 304 Stainless Steel | $166.91 | | |||
| 2 1/2 | 90 Degree Elbow | Clamp x Bevel | 316 Stainless Steel | $265.80 | | |||
| 2 1/2 | 90 Degree Elbow | Clamp x Thread | 304 Stainless Steel | $128.55 | | |||
| 2 1/2 | 90 Degree Elbow | Clamp x Thread | 316 Stainless Steel | $171.45 | | |||
| 3 | 90 Degree Elbow | Clamp | 304 Stainless Steel | $47.46 | |
Product Info
We house a huge inventory of sanitary clamp fittings in 304 and 316L stainless steel. From adapters and elbows to clamps and ferrules, we have a complete inventory of stainless steel sanitary clamp 90 degree elbows to meet your specified needs. View our full line of stainless steel products.Dimensions
Dimensions in inches, from our sanitary clamp fitting data sheet. The columns use the letters on the drawing. Each chart uses its own drawing's letters.
Charts on this page: Clamp · Clamp × Bevel Ferrule With Nut · Clamp × Thread
Clamp
| Tube OD | A | R |
|---|---|---|
| 1" | 2.000 | 1.500 |
| 1-1/2" | 2.750 | 2.250 |
| 2" | 3.500 | 3.000 |
| 2-1/2" | 4.250 | 3.750 |
| 3" | 5.000 | 4.500 |
| 4" | 6.625 | 6.000 |
| 6" | 9.875 | 9.000 |
| 8" | 12.937 | 12.000 |
Clamp × Bevel Ferrule With Nut
| Tube OD | A | B |
|---|---|---|
| 1" | 2.000 | 2.875 |
| 1-1/2" | 2.750 | 2.968 |
| 2" | 3.500 | 3.718 |
| 2-1/2" | 4.250 | 4.593 |
| 3" | 5.000 | 5.406 |
| 4" | 6.625 | 7.218 |
Clamp × Thread
| Tube OD | A | B |
|---|---|---|
| 1" | 2.000 | 2.187 |
| 1-1/2" | 2.750 | 2.968 |
| 2" | 3.500 | 3.718 |
| 2-1/2" | 4.250 | 4.593 |
| 3" | 5.000 | 5.406 |
| 4" | 6.625 | 7.218 |
Standard Specifications
We offer stainless steel sanitary clamp 90 degree elbows in a variety of sizes and specifications.Stainless Steel Grades
Check out our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our SS products including our stainless steel sanitary clamp 90 degree elbows. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for Clamp Fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Clamp Fittings meet all 3A requirements.Frequently Asked Questions
What sizes of sanitary clamp 90° elbows do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary clamp 90° elbows with clamp, clamp × bevel and clamp × thread ends, from 1" to 8". For other sizes or grades, call (800) 282-9694 or send us a message.
Why does this page have three charts?
Our data sheet has a separate chart, with its own drawing, for each end connection of these 90° elbows. Each chart uses the letters on its own drawing.
What is R in the clamp chart?
R is the centerline radius on our drawing of the clamp 90° elbow. For a 2" clamp 90° elbow it is 3.000", and A is 3.500".
How do I get a price?
Prices are listed in the product table on this page. For a size or grade that is not listed, call (800) 282-9694 or send us a message.
