Stainless Steel 150 lb Cast Fittings
Stainless Steel 150 lb Cast Fittings

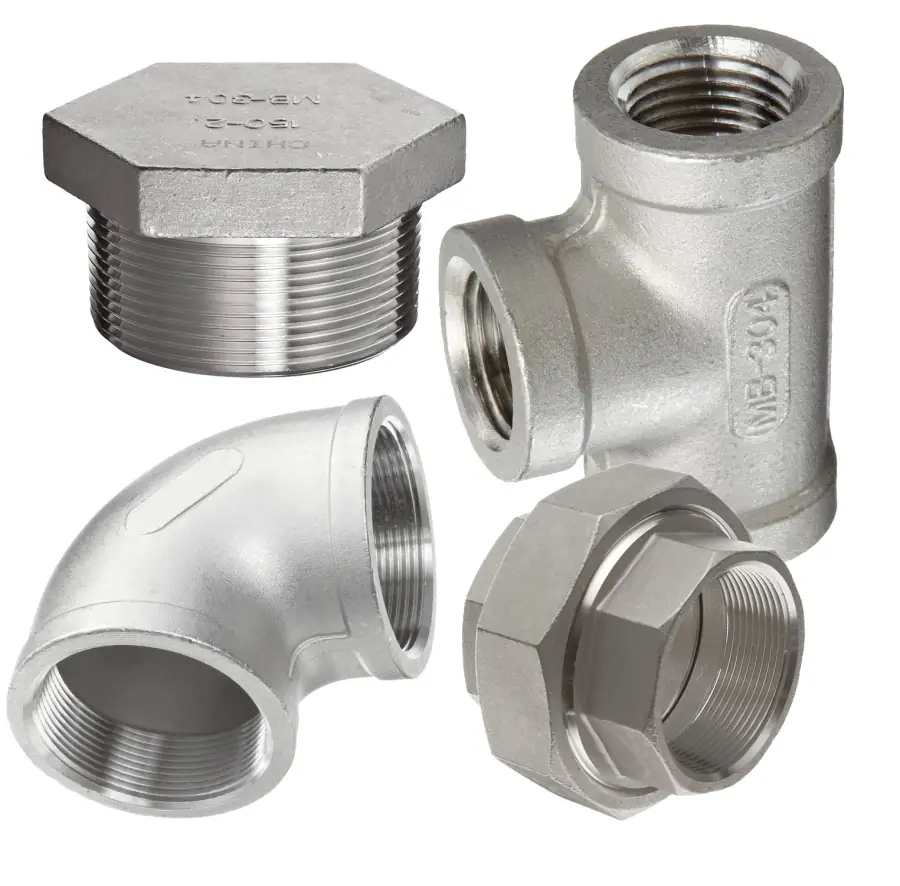

The product table below lists 304 and 316 stainless steel 150 lb cast fittings, threaded (NPT) from 1/8" to 4", with socket weld 45° and 90° elbows, full couplings, tees and unions from 1/4" to 4". Each fitting has its own dimension chart.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
From cast couplings to cast square plugs, we have a complete inventory of standard 150 lb stainless steel cast fittings ready to ship to meet your specified needs. We also offer 150 lb MSS-SP-114 heavy-pattern stainless steel cast fittings upon request.Sizes: 1/8" - 6"
Pressure: Class 150
End Connections: Threaded - Socket Weld
Alloys: Aluminum - Carbon - Stainless
Filter Products
Size | Product Type | Reducing | Pressure | End Type | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1/8 | Street 90 | 150# | Threaded | 304 Stainless | $4.17 | | |||
| 1/8 | Cross | 150# | Threaded | 316 Stainless | $8.19 | | |||
| 1/8 | Street 90 | 150# | Threaded | 316 Stainless | $4.99 | | |||
| 1/8 | Cross | 150# | Threaded | 304 Stainless | $6.65 | | |||
| 1/8 | Union | 150# | Threaded | 316 Stainless | $11.20 | | |||
| 1/8 | 45 Degree Elbow | 150# | Threaded | 304 Stainless | $3.81 | | |||
| 1/8 | 45 Degree Elbow | 150# | Threaded | 316 Stainless | $4.44 | | |||
| 1/8 | 90 Degree Elbow | 150# | Threaded | 304 Stainless | $2.92 | | |||
| 1/8 | 90 Degree Elbow | 150# | Threaded | 316 Stainless | $3.74 | | |||
| 1/8 | Cap | 150# | Threaded | 304 Stainless | $1.48 | | |||
| 1/8 | Cap | 150# | Threaded | 316 Stainless | $1.80 | | |||
| 1/8 | Full Coupling | 150# | Threaded | 304 Stainless | $2.24 | | |||
| 1/8 | Full Coupling | 150# | Threaded | 316 Stainless | $2.89 | | |||
| 1/8 | Half Coupling | 150# | Threaded | 304 Stainless | $1.62 | | |||
| 1/8 | Half Coupling | 150# | Threaded | 316 Stainless | $1.84 | | |||
| 1/8 | Hex Plug | 150# | Threaded | 304 Stainless | $1.41 | | |||
| 1/8 | Hex Plug | 150# | Threaded | 316 Stainless | $1.71 | | |||
| 1/8 | Square Plug | 150# | Threaded | 304 Stainless | $1.27 | | |||
| 1/8 | Square Plug | 150# | Threaded | 316 Stainless | $1.27 | | |||
| 1/8 | Tee | 150# | Threaded | 304 Stainless | $3.88 | | |||
| 1/8 | Tee | 150# | Threaded | 316 Stainless | $4.64 | | |||
| 1/8 | Union | 150# | Threaded | 304 Stainless | $9.87 | | |||
| 1/4 | Hex Plug | 150# | Threaded | 304 Stainless | $1.41 | | |||
| 1/4 | Hex Plug | 150# | Threaded | 316 Stainless | $1.71 | | |||
| 1/4 | Reducing Coupling | 1/8 | 150# | Threaded | 304 Stainless | $3.07 | |
Product Info
We carry an extensive inventory of 304 and 316 stainless steel 150 lb threaded and socket weld fittings to complement our stainless pipe and tubing products. Our high quality, 150 lb stainless steel cast fittings include 45, 90 and street 90-degree elbows, caps, full and half couplings, hex bushings, hex plugs, king nipples, reducing couplings, square plugs, tees and unions. For an overview of our stainless steel product offerings.Dimensions
Dimension charts for each fitting, with a drawing from our data sheet:
- 45° elbows
- 90° elbows
- Street 90° elbows
- Tees
- Crosses
- Full couplings
- Half couplings
- Reducing couplings
- Unions
- Caps
- Hex bushings
- Hex head plugs
- Square head plugs
Standard Specifications
Cast fittings generally conform to ASA B16.3 and pipe threads conform to ASA B2.1 standard for manufacturing. View the standard specifications.Stainless Steel Grades
Reference our stainless steel grades resource chart. You can view multiple functionality and application of our various grades of stainless steel.Reference Catalog
We designed our Reference Catalog for you to identify our 150 lb cast fittings and other products and services we offer. This catalog includes specification charts and general dimensional illustrations to help identify available products in our inventory.Additional Info
150 lb stainless steel cast fittings are manufactured through the process of heating metal to a molten/liquid state and pouring the metal into a vessel creating the desired shape. The stainless cast fitting is then created to specification through a finishing process. Stainless steel cast fittings are sometimes larger in size because it is an easier and more affordable process compared to forging, which creates a product from a solid state in expensive molds and are more common in very large quantities. Stainless steel casting is performed in smaller quantities and also has advantages with custom alloys where these metals can be added in the molten stage.Frequently Asked Questions
Which 150 lb fittings do you carry?
Our product table lists 304 and 316 stainless steel 45° and 90° elbows, street 90° elbows, tees, crosses, full, half and reducing couplings, unions, caps, hex bushings, and hex head and square head plugs. Every type comes threaded (NPT); 45° and 90° elbows, full couplings, tees and unions also come in socket weld.
What sizes are available?
The product table lists threaded fittings from 1/8" to 4", socket weld fittings from 1/4" to 4", and hex bushings and reducing couplings from 1/4" × 1/8" to 4" × 3". For other sizes or alloys, call (800) 282-9694 or send us a message.
Where can I find the dimensions of each fitting?
Each fitting's page has a dimension chart with the drawing from our data sheet; the links are under Dimensions on this page.
What thread do these fittings have?
NPT. Our data sheets for these threaded fittings list the thread as NPT.
What do CF8 and CF8M mean on your data sheets?
They are the grade names our data sheets give the material: CF8 (304) and CF8M (316), the 304 and 316 stainless steel in the product table.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
