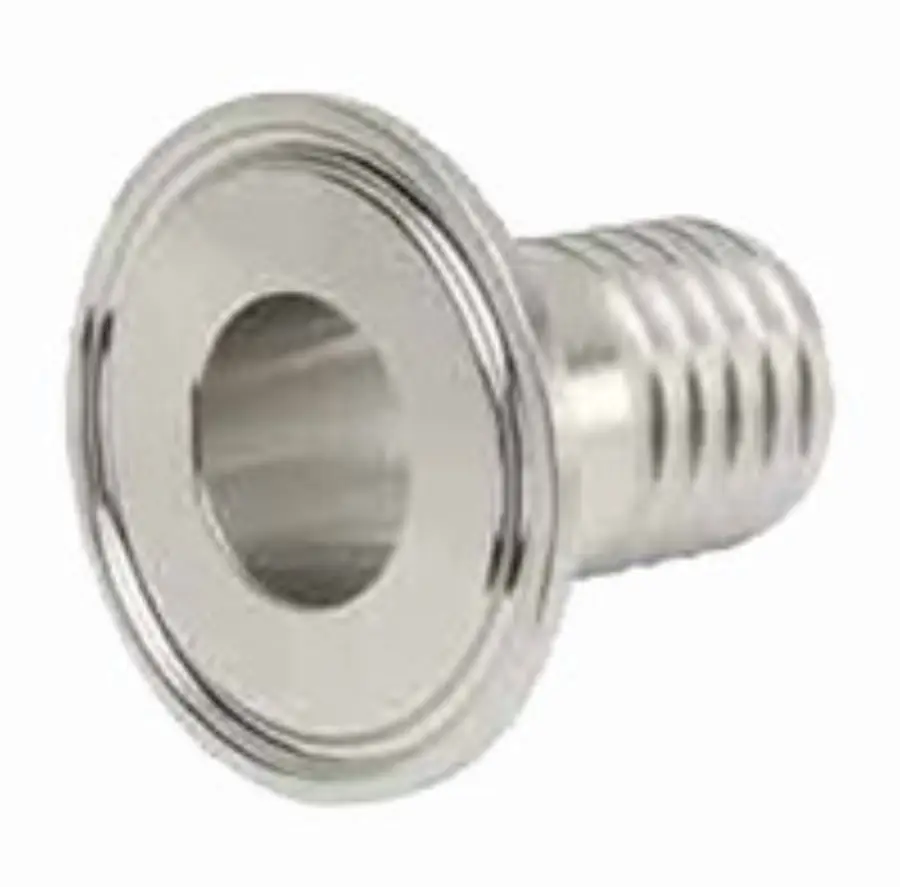

Sanitary Clamp Reducing Rubber Hose Adapters
Sanitary Clamp Reducing Rubber Hose Adapters
The product table below lists 316L stainless steel sanitary clamp reducing rubber hose adapters, in 10 size combinations, from 1" × 1/2" to 4" × 3". A dimension chart follows the table.
Get a price: the product table below lists prices; for a size or grade that is not listed, call (800) 282-9694 or send us a message.
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for clamp fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Sanitary clamp fittings meet all 3A requirements.End Connections: Clamp
Grades: 316L
Filter Products
Tube OD | Product Type | End Type | Alt Size | Material | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 | Reducing Rubber Hose Adapter | Clamp | 1/2 | 316 Stainless Steel | $72.13 | | ||
| 1 | Reducing Rubber Hose Adapter | Clamp | 3/4 | 316 Stainless Steel | $95.87 | | ||
| 1 1/2 | Reducing Rubber Hose Adapter | Clamp | 1 1/4 | 316 Stainless Steel | $124.39 | | ||
| 2 | Reducing Rubber Hose Adapter | Clamp | 1 1/2 | 316 Stainless Steel | $130.51 | | ||
| 2 | Reducing Rubber Hose Adapter | Clamp | 1 | 316 Stainless Steel | $130.51 | | ||
| 2 1/2 | Reducing Rubber Hose Adapter | Clamp | 2 | 316 Stainless Steel | $153.60 | | ||
| 3 | Reducing Rubber Hose Adapter | Clamp | 2 1/2 | 316 Stainless Steel | $197.18 | | ||
| 3 | Reducing Rubber Hose Adapter | Clamp | 2 | 316 Stainless Steel | $163.40 | | ||
| 4 | Reducing Rubber Hose Adapter | Clamp | 2 1/2 | 316 Stainless Steel | $252.73 | | ||
| 4 | Reducing Rubber Hose Adapter | Clamp | 3 | 316 Stainless Steel | $281.05 | |
Product Info
We house a huge inventory of sanitary clamp fittings in 304 and 316L stainless steel. From adapters and elbows to clamps and ferrules, we have a complete inventory of stainless steel sanitary clamp reducing rubber hose adapters to meet your specified needs. View our full line of stainless steel products.Dimensions
Dimensions in inches, from our sanitary clamp fitting data sheet. The columns use the letters on the drawing.
| Tube OD | A | B | C |
|---|---|---|---|
| 1" × 1/2" | 2.000 | 0.370 | 0.500 |
| 1" × 3/4" | 2.000 | 0.620 | 0.750 |
| 1-1/2" × 1-1/4" | 3.500 | 1.120 | 1.250 |
| 2" × 1" | 3.500 | 0.870 | 1.000 |
| 2" × 1-1/2" | 3.500 | 1.370 | 1.500 |
| 2-1/2" × 2" | 3.500 | 1.870 | 2.000 |
| 3" × 2" | 3.500 | 1.870 | 2.000 |
| 3" × 2-1/2" | 3.500 | 2.370 | 2.500 |
| 4" × 2-1/2" | 3.625 | 2.370 | 2.500 |
| 4" × 3" | 3.625 | 2.870 | 3.000 |
Standard Specifications
We offer stainless steel sanitary clamp reducing rubber hose adapters in a variety of sizes and specifications.Stainless Steel Grades
Check out our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our SS products including our stainless steel sanitary clamp reducing rubber hose adapters. Specification charts and general dimensional illustrations aid in identifying products. Some dimensions in the Reference Catalog differ from the charts on this page.Additional Info
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for Clamp Fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Clamp Fittings meet all 3A requirements.Frequently Asked Questions
What sizes of sanitary clamp reducing rubber hose adapters do you carry?
The product table on this page lists 316L stainless steel sanitary clamp reducing rubber hose adapters, in 10 size combinations, from 1" × 1/2" to 4" × 3". For other sizes or grades, call (800) 282-9694 or send us a message.
How is the size written?
Clamp end × hose end: a 1" × 1/2" adapter has a 1" clamp end and a 1/2" hose end. C in the chart is the outside diameter of the hose end (0.500" on a 1" × 1/2").
How do I get a price?
Prices are listed in the product table on this page. For a size or grade that is not listed, call (800) 282-9694 or send us a message.
