Sanitary Weld Caps
Sanitary Weld Caps
The product table below lists 304 and 316L stainless steel sanitary weld caps, from 1" to 6". A dimension chart follows the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
Stainless steel sanitary weld caps are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes. Sanitary weld fittings meet all 3A requirements.Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 | Cap | Weld | 304 Stainless Steel | $20.92 | | |||
| 1 | Cap | Weld | 316 Stainless Steel | $22.66 | | |||
| 1 1/2 | Cap | Weld | 304 Stainless Steel | $22.66 | | |||
| 1 1/2 | Cap | Weld | 316 Stainless Steel | $24.40 | | |||
| 2 | Cap | Weld | 304 Stainless Steel | $23.53 | | |||
| 2 | Cap | Weld | 316 Stainless Steel | $27.64 | | |||
| 2 1/2 | Cap | Weld | 304 Stainless Steel | $27.89 | | |||
| 2 1/2 | Cap | Weld | 316 Stainless Steel | $31.38 | | |||
| 3 | Cap | Weld | 304 Stainless Steel | $42.19 | | |||
| 3 | Cap | Weld | 316 Stainless Steel | $40.45 | | |||
| 4 | Cap | Weld | 304 Stainless Steel | $46.54 | | |||
| 4 | Cap | Weld | 316 Stainless Steel | $48.81 | | |||
| 6 | Cap | Weld | 316 Stainless Steel | $278.87 | |
Product Info

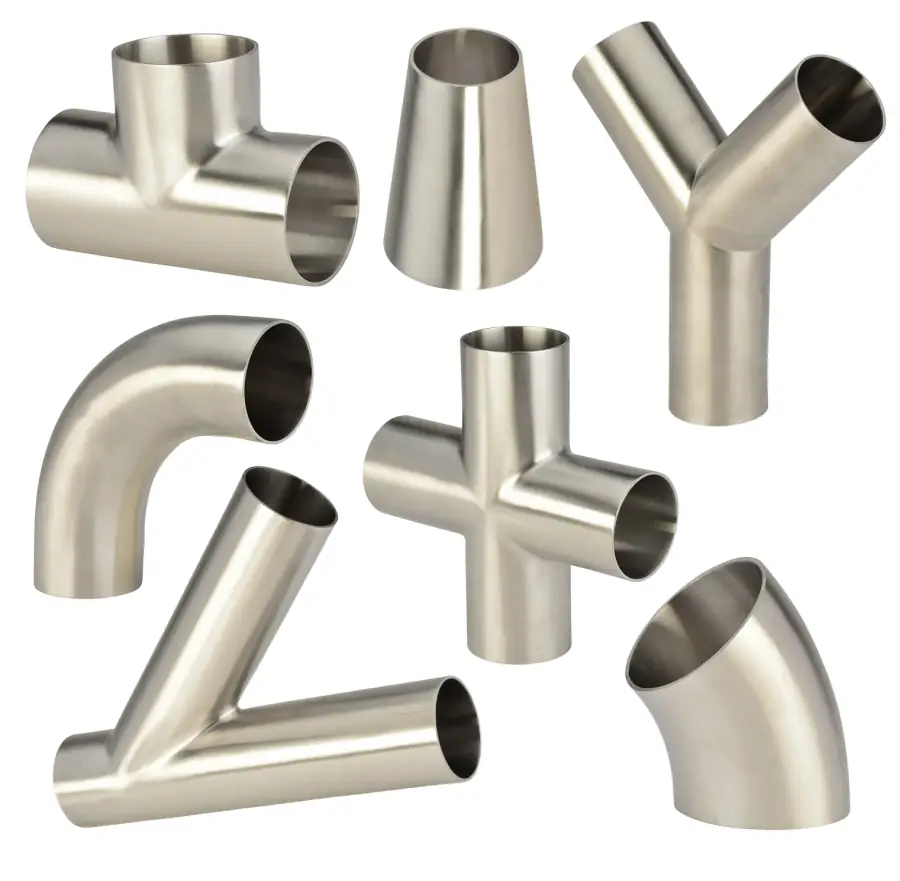

We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld caps to meet your specifications. View our full line of stainless steel products.Dimensions

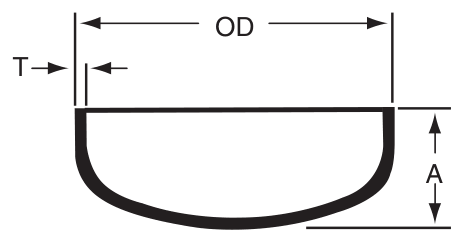

Dimensions in inches, from our sanitary weld data sheet. The column letters are the ones on the drawing.
| Tube OD | A | Nom. Wall (T) |
|---|---|---|
| 1" | 0.375 | 0.065 |
| 1-1/4" | 0.500 | 0.065 |
| 1-1/2" | 0.562 | 0.065 |
| 2" | 0.750 | 0.065 |
| 2-1/2" | 1.000 | 0.065 |
| 3" | 1.250 | 0.065 |
| 4" | 1.500 | 0.083 |
| 6" | Contact us for dimensions. | |
Our data sheet also lists 1-1/4" caps, which are not in the product table; call us for availability.
OD on the drawing is the tube size.
Standard Specifications
We offer stainless steel sanitary weld caps in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld caps. Specification charts and general dimensional illustrations aid in identifying products. Some dimensions in the Reference Catalog differ from the charts on this page, which follow our sanitary weld data sheet.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld caps with weld ends.Frequently Asked Questions
What sizes of sanitary weld caps do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary weld caps, from 1" to 6". The 6" size comes in 316L only. For other sizes or alloys, call (800) 282-9694 or send us a message.
How deep is a sanitary weld cap?
A in the chart is the depth of the cap: a 2" cap measures 0.750". For the 6" cap our data sheet says "Contact us for dimensions"; call us for them.
What is the wall thickness?
Our data sheet gives a nominal wall (the wall column in the chart) of 0.065" from 1" to 3" and 0.083" at 4"; for the 6" size our data sheet says "Contact us for dimensions".
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
