Sanitary Weld Fittings
Sanitary Weld Fittings

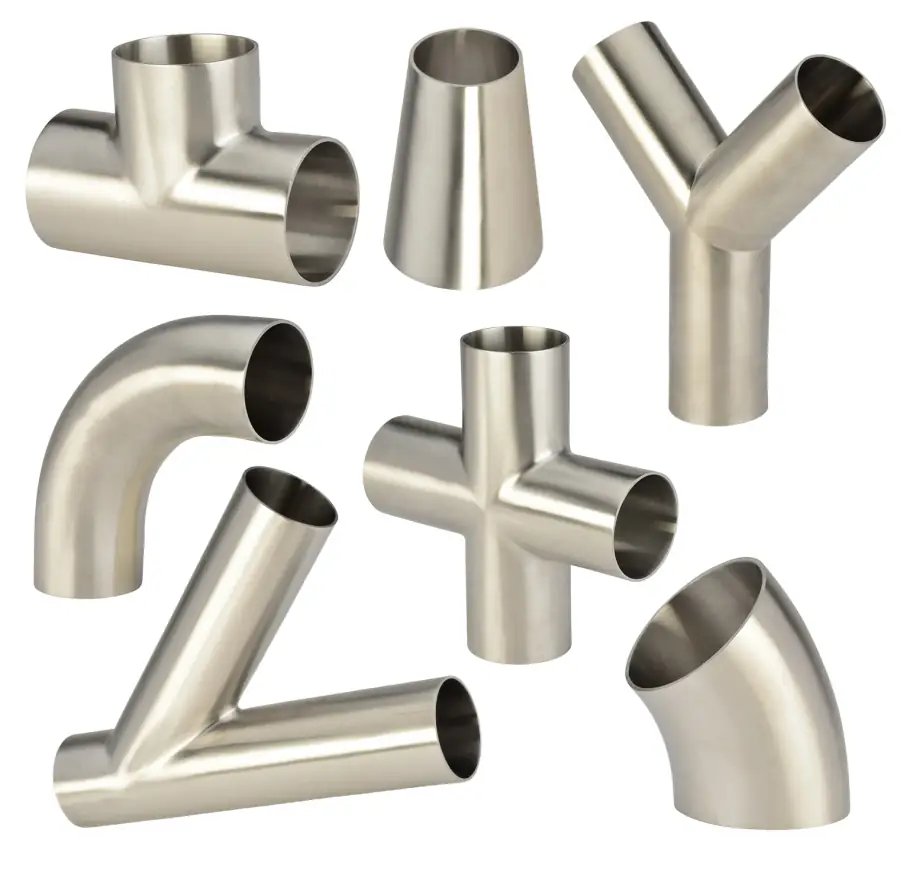

The product table below lists 304 and 316L stainless steel sanitary weld fittings from 1/2" to 8": elbows, tees, crosses, laterals, true Y fittings, U-bends, reducers, caps, stub ends and tube × pipe adapters. Each fitting's page has its own dimension chart; the links are under Dimensions.
Get a price: the product table below lists prices, and items that show "Quote" are priced on request; for those, or for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
Stainless steel sanitary weld fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes.Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1/2 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $65.36 | | |||
| 1/2 | Tube x Pipe Sch 10 Adapter | Weld | 316 Stainless Steel | $53.39 | | |||
| 1/2 | Tube x Pipe Sch 40 Adapter | Weld | 316 Stainless Steel | $56.98 | | |||
| 1/2 | Tube x Pipe Sch 5 Adapter | Weld | 316 Stainless Steel | $47.92 | | |||
| 1/2 | Type A Stub End | Weld | 316 Stainless Steel | $113.31 | | |||
| 3/4 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $65.36 | | |||
| 3/4 | Tube x Pipe Sch 10 Adapter | Weld | 316 Stainless Steel | $53.39 | | |||
| 3/4 | Tube x Pipe Sch 40 Adapter | Weld | 316 Stainless Steel | $56.98 | | |||
| 3/4 | Tube x Pipe Sch 5 Adapter | Weld | 316 Stainless Steel | $47.92 | | |||
| 3/4 | Type A Stub End | Weld | 316 Stainless Steel | $113.31 | | |||
| 3/4 | Concentric Reducer | Weld | 1/2 | 316 Stainless Steel | $72.99 | | ||
| 3/4 | Eccentric Reducer | Weld | 1/2 | 316 Stainless Steel | $106.74 | | ||
| 3/4 | Reducing Short Outlet Tee | Weld x Clamp Branch | 1/2 | 316 Stainless Steel | | |||
| 1 | Tee | Weld x Clamp Branch | 304 Stainless Steel | $86.39 | | |||
| 1 1/2 | Short Outlet Tee | Weld x Clamp Branch | 304 Stainless Steel | | ||||
| 1 | 180 Degree U-Bend | Weld | 304 Stainless Steel | $163.40 | | |||
| 1 | 180 Degree U-Bend | Weld | 316 Stainless Steel | $181.93 | | |||
| 1 | 45 Degree Elbow | Weld x Bevel | 304 Stainless Steel | $73.76 | | |||
| 1 | 45 Degree Elbow | Weld x Bevel | 316 Stainless Steel | $81.93 | | |||
| 1 | 45 Degree Elbow | Weld x Clamp | 304 Stainless Steel | $89.54 | | |||
| 1 | 45 Degree Elbow | Weld x Clamp | 316 Stainless Steel | $71.36 | | |||
| 1 | 45 Degree Elbow | Weld x Thread | 304 Stainless Steel | $65.36 | | |||
| 1 | 45 Degree Elbow | Weld x Thread | 316 Stainless Steel | $72.67 | | |||
| 1 | 45 Degree Elbow | Weld | 304 Stainless Steel | $19.61 | | |||
| 1 | 45 Degree Elbow | Weld | 316 Stainless Steel | $22.67 | |
Product Info
We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld fittings to meet your specifications. View our full line of stainless steel products.Dimensions
Dimension charts for each fitting, with the drawings from our data sheets:
- 90° Elbows
- 90° Short Elbows
- 90° Sweep Elbows
- 45° Elbows
- 45° Short Elbows
- 180° U-Bends
- Tees
- Reducing Tees
- Short Outlet Tees
- Reducing Short Outlet Tees
- Crosses
- 45° Laterals
- 45° Reducing Laterals
- True Y
- Concentric Reducers
- Eccentric Reducers
- Caps
- Type A Stub Ends
- Tube × Pipe Sch 5 Adapters
- Tube × Pipe Sch 10 Adapters
- Tube × Pipe Sch 40 Adapters
Standard Specifications
We offer stainless steel sanitary weld fittings in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld fittings. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld fittings with weld ends; some elbows, tees and reducers also have a clamp, thread or bevel end, and the short outlet tees have a clamp branch.Frequently Asked Questions
Which sanitary weld fittings do you carry?
Our product table lists 304 and 316L stainless steel sanitary weld 90° and 45° elbows (standard and short), 90° sweep elbows, 180° U-bends, tees, reducing tees, short outlet and reducing short outlet tees, crosses, 45° laterals and reducing laterals, true Y fittings, concentric and eccentric reducers, caps, type A stub ends and tube × pipe adapters for Sch 5, Sch 10 and Sch 40 pipe.
What sizes are available?
The product table lists tube sizes from 1/2" to 8"; each fitting's page lists its own sizes. For other sizes or alloys, call (800) 282-9694 or send us a message.
Where can I find the dimensions of each fitting?
Each fitting's page has a dimension chart with the drawing from our data sheet; the links are under Dimensions on this page.
What is the wall thickness of your sanitary weld fittings?
Our data sheet gives a wall of 0.065" for tube sizes 1/2" to 3", 0.083" at 4" and 0.109" at 6" and 8"; each fitting's chart lists the wall by size.
Where are sanitary weld fittings used?
On permanent installations where process piping and equipment are cleaned in place (CIP), so the fittings do not have to be removed from the system.
How do I get a price?
Prices are listed in the product table on this page; items that show "Quote" are priced on request. For those, or for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
