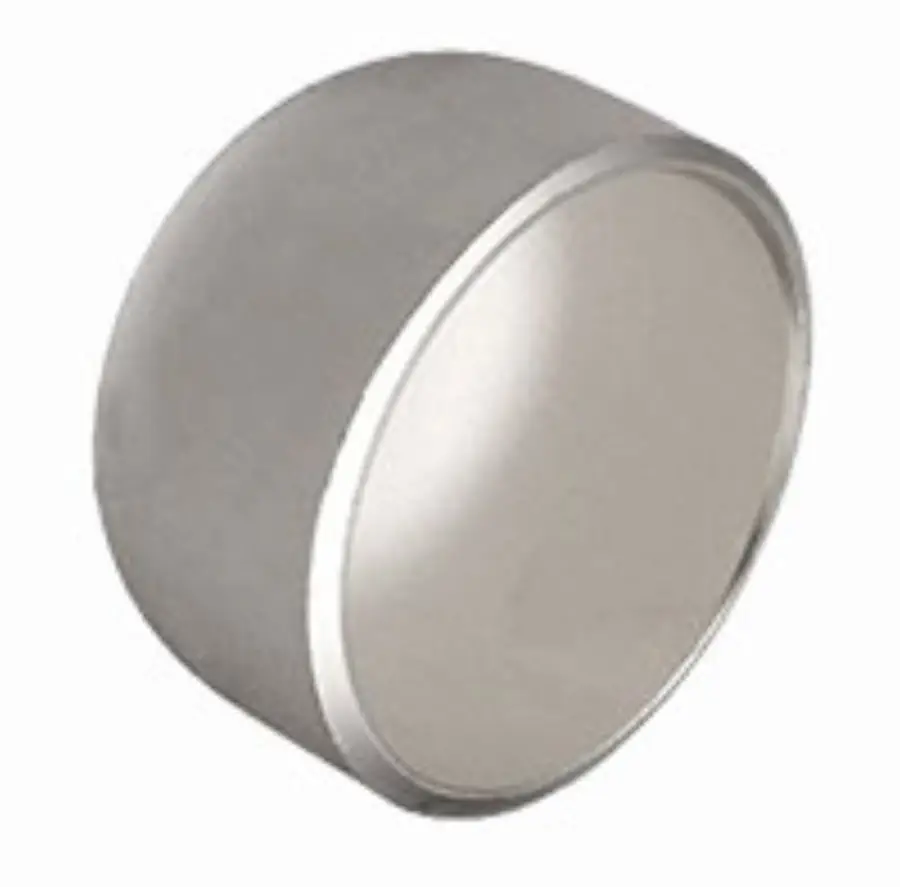

Stainless Steel Butt Weld Caps
Stainless Steel Butt Weld Caps
The product table below lists 304 and 316 stainless steel butt weld pipe caps from 1/2" to 24" in Schedule 5S, 10S, 40S and 80S; ask us about other sizes and schedules. Dimension and weight charts follow the table.
Get a price: the product table below lists prices; if an item shows Quote, call (800) 282-9694 or send us a message.
Our high-quality and corrosion resistant butt weld caps come in various sizes and schedules to fit your stainless steel pipe and fitting needs.Schedules: S/5s - XXH
Alloys: Aluminum - Carbon - Nickel Alloys - Stainless
Filter Products
Size | Product Type | Reducing | Pressure | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1/2 | Cap | Sch 10s | 304 Stainless | $13.78 | | |||
| 1/2 | Cap | Sch 10s | 316 Stainless | $19.54 | | |||
| 1/2 | Cap | Sch 40s | 304 Stainless | $15.05 | | |||
| 1/2 | Cap | Sch 40s | 316 Stainless | $20.42 | | |||
| 1/2 | Cap | Sch 5s | 304 Stainless | | ||||
| 1/2 | Cap | Sch 5s | 316 Stainless | | ||||
| 1/2 | Cap | Sch 80s | 304 Stainless | | ||||
| 1/2 | Cap | Sch 80s | 316 Stainless | | ||||
| 3/4 | Cap | Sch 10s | 304 Stainless | $18.67 | | |||
| 3/4 | Cap | Sch 10s | 316 Stainless | $26.19 | | |||
| 3/4 | Cap | Sch 40s | 304 Stainless | $17.33 | | |||
| 3/4 | Cap | Sch 40s | 316 Stainless | $25.75 | | |||
| 3/4 | Cap | Sch 5s | 304 Stainless | | ||||
| 3/4 | Cap | Sch 5s | 316 Stainless | | ||||
| 3/4 | Cap | Sch 80s | 304 Stainless | | ||||
| 3/4 | Cap | Sch 80s | 316 Stainless | | ||||
| 1 | Cap | Sch 10s | 304 Stainless | $20.42 | | |||
| 1 | Cap | Sch 10s | 316 Stainless | $28.41 | | |||
| 1 | Cap | Sch 40s | 304 Stainless | $21.73 | | |||
| 1 | Cap | Sch 40s | 316 Stainless | $29.29 | | |||
| 1 | Cap | Sch 5s | 304 Stainless | | ||||
| 1 | Cap | Sch 5s | 316 Stainless | | ||||
| 1 | Cap | Sch 80s | 304 Stainless | | ||||
| 1 | Cap | Sch 80s | 316 Stainless | | ||||
| 1 1/4 | Cap | Sch 10s | 304 Stainless | $50.59 | |
Product Info
Our 304 and 316 stainless butt weld pipe caps come in a variety of sizes and schedules to accommodate almost any stainless steel pipe system. SS cap schedules include: S/5, S/10, S/40 and S/80. View an overview of our stainless steel product offerings.Dimensions
Pipe Sizes & Weights
There are various butt weld cap sizes and weights to choose from. Our pipe sizes and weights chart will show all available size options.Standard Specifications
Butt weld caps meet the ASTM A403 standard specification with dimensional tolerances in accordance with MSS SP-43 for schedules 5s and 10s, and with ANSI B16.9 for schedules heavier than 10s. View the standard specifications chart.Stainless Steel Grades
Buttweld caps are readily available in 304 stainless and 316 stainless steel from Shaw Stainless & Alloy. View other various grades of stainless steel.Reference Catalog
View thousands of stainless steel pipe and tubing products and various services Shaw Stainless offers. This Reference Catalog identifies stainless steel butt weld caps and other pipe fittings through specification charts and illustrations.Theoretical Bursting Pressures
Here is a chart to review theoretical bursting pressures for various stainless steel pipe.Additional Info
A stainless steel butt weld cap is a type of pipe fitting that covers the end of a pipe. Since it can have female threads, it can screw on to the male end of the pipe. It can also be welded on to close the end of the pipe. On a weld, if it is a temporary close, or the contractor wants to add to the piping system in the future, he or she should allow additional pipe before closing so the pipe cap can be cut off and the pipe system extended as needed. This way you will not have less pipe than you need and the new fitting can be attached correctly.Frequently Asked Questions
What sizes of butt weld caps do you carry?
The product table on this page lists 304 and 316 stainless steel butt weld caps from 1/2" to 24" in Schedule 5S, 10S, 40S and 80S. For other sizes, schedules or alloys, call (800) 282-9694 or send us a message.
What do E and S mean in the cap chart?
E is the length of the cap from the welding end, and S is the tangent length, the straight portion before the cap begins to curve. A 4" cap in the first chart measures 2-1/2" (E) with a 1.26" tangent length. The second chart lists two lengths, E and E1, as our data sheet does; ask us which applies to the cap you need.
How much does a butt weld cap weigh?
It depends on the size and schedule. The charts on this page list approximate weights: a 4" cap weighs about 1.44 lb in Schedule 10S and 2.69 lb in Schedule 40S.
Do you carry Schedule 160 and XX Strong caps?
They are not in our online product table, which lists Schedule 5S, 10S, 40S and 80S; call (800) 282-9694 or send us a message to ask about availability. The second chart on this page lists their dimensions from our data sheet.
What standards do your butt weld caps meet?
Our butt weld caps generally conform to ASTM A403, with dimensional tolerances in accordance with MSS SP-43 for Schedule 5S and 10S and with ANSI B16.9 for schedules heavier than 10S.
How do I get a price?
Prices are listed in the product table on this page. If an item shows Quote, or you need a size or schedule that is not listed, call (800) 282-9694 or send us a message.
