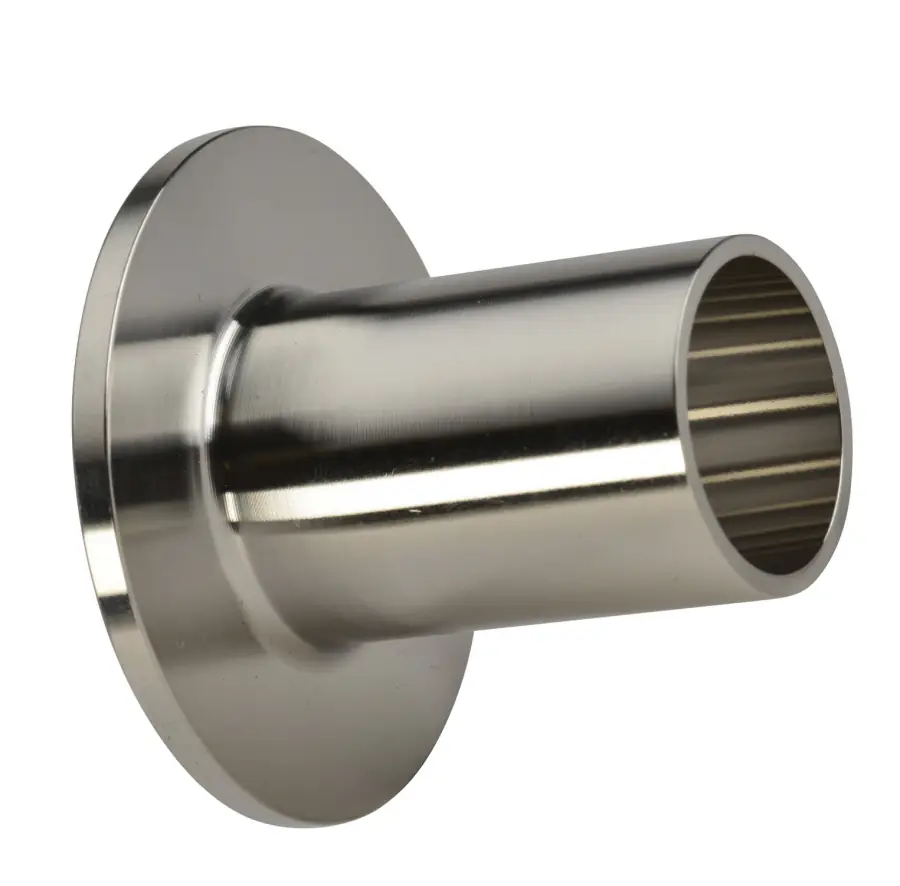

Sanitary Weld Type A Stub Ends
Sanitary Weld Type A Stub Ends
The product table below lists 316L stainless steel sanitary weld type A stub ends, from 1/2" to 6". A dimension chart follows the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
Stainless steel sanitary weld type a stub ends are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes. Sanitary weld fittings meet all 3A requirements.Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1/2 | Type A Stub End | Weld | 316 Stainless Steel | $113.31 | | |||
| 3/4 | Type A Stub End | Weld | 316 Stainless Steel | $113.31 | | |||
| 1 | Type A Stub End | Weld | 316 Stainless Steel | $95.42 | | |||
| 1 1/2 | Type A Stub End | Weld | 316 Stainless Steel | $95.42 | | |||
| 2 | Type A Stub End | Weld | 316 Stainless Steel | $122.01 | | |||
| 2 1/2 | Type A Stub End | Weld | 316 Stainless Steel | $133.99 | | |||
| 3 | Type A Stub End | Weld | 316 Stainless Steel | $196.08 | | |||
| 4 | Type A Stub End | Weld | 316 Stainless Steel | $294.12 | | |||
| 6 | Type A Stub End | Weld | 316 Stainless Steel | $742.93 | |
Product Info
We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld type a stub ends to meet your specifications. View our full line of stainless steel products.Dimensions

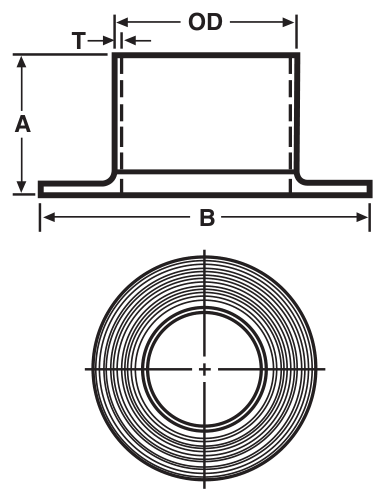

Dimensions in inches, from our sanitary weld data sheet. The column letters are the ones on the drawing.
| Tube OD | A | B | Nom. Wall (T) |
|---|---|---|---|
| 1/2" | 1.375 | 1.625 | 0.065 |
| 3/4" | 1.375 | 1.687 | 0.065 |
| 1" | 1.625 | 2.000 | 0.065 |
| 1-1/4" | 1.625 | 2.500 | 0.065 |
| 1-1/2" | 1.750 | 2.875 | 0.065 |
| 2" | 1.500 | 3.625 | 0.065 |
| 2-1/2" | 2.000 | 4.125 | 0.065 |
| 3" | 2.250 | 5.000 | 0.065 |
| 4" | 2.625 | 6.187 | 0.083 |
| 6" | 3.000 | 8.500 | 0.109 |
Our data sheet also lists 1-1/4" type A stub ends, which are not in the product table; call us for availability.
OD on the drawing is the tube size.
Standard Specifications
We offer stainless steel sanitary weld type a stub ends in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld type a stub ends. Specification charts and general dimensional illustrations aid in identifying products. Some dimensions in the Reference Catalog differ from the charts on this page, which follow our sanitary weld data sheet.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld type A stub ends with weld ends.Frequently Asked Questions
What sizes of sanitary weld type A stub ends do you carry?
The product table on this page lists 316L stainless steel sanitary weld type A stub ends, from 1/2" to 6". For other sizes or alloys, call (800) 282-9694 or send us a message.
What do A and B mean in the stub end chart?
A is the height of the stub end and B the outside diameter of its flange: a 4" type A stub end measures A 2.625" and B 6.187". Our data sheet calls this fitting a type A stub end with grooves.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
