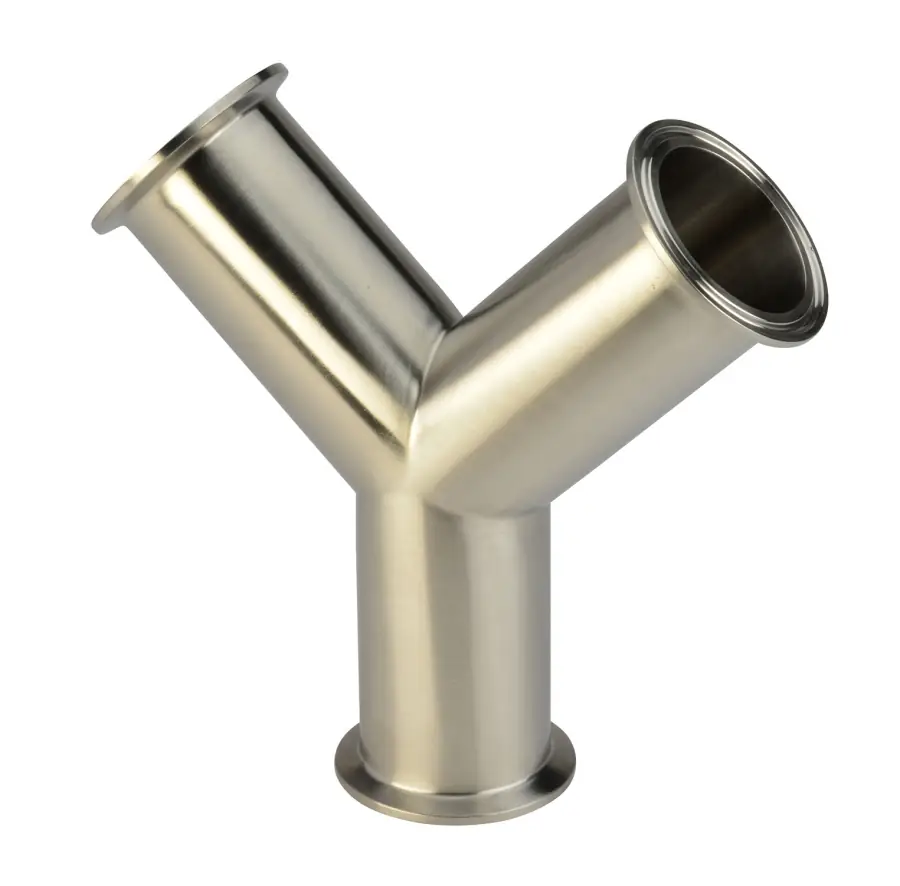

Sanitary Clamp True Y
Sanitary Clamp True Y
The product table below lists 304 and 316L stainless steel sanitary clamp true Y fittings, from 1" to 6". A dimension chart follows the table.
Get a price: the product table below lists prices; for a size or grade that is not listed, call (800) 282-9694 or send us a message.
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for clamp fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Sanitary clamp fittings meet all 3A requirements.End Connections: Clamp
Grades: 304 - 316L
Filter Products
Tube OD | Product Type | End Type | Alt Size | Material | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 | True Y | Clamp | 304 Stainless Steel | $315.92 | | |||
| 1 | True Y | Clamp | 316 Stainless Steel | $369.20 | | |||
| 1 1/2 | True Y | Clamp | 304 Stainless Steel | $315.92 | | |||
| 1 1/2 | True Y | Clamp | 316 Stainless Steel | $359.29 | | |||
| 2 | True Y | Clamp | 304 Stainless Steel | $331.16 | | |||
| 2 | True Y | Clamp | 316 Stainless Steel | $371.02 | | |||
| 2 1/2 | True Y | Clamp | 304 Stainless Steel | $387.81 | | |||
| 2 1/2 | True Y | Clamp | 316 Stainless Steel | $507.88 | | |||
| 3 | True Y | Clamp | 304 Stainless Steel | $422.67 | | |||
| 3 | True Y | Clamp | 316 Stainless Steel | $576.32 | | |||
| 4 | True Y | Clamp | 304 Stainless Steel | $697.18 | | |||
| 4 | True Y | Clamp | 316 Stainless Steel | $1,008.55 | | |||
| 6 | True Y | Clamp | 304 Stainless Steel | $1,651.42 | | |||
| 6 | True Y | Clamp | 316 Stainless Steel | $1,994.56 | |
Product Info
We house a huge inventory of sanitary clamp fittings in 304 and 316L stainless steel. From adapters and elbows to clamps and ferrules, we have a complete inventory of stainless steel sanitary clamp true y to meet your specified needs. View our full line of stainless steel products.Dimensions
Dimensions in inches, from our sanitary clamp fitting data sheet. The columns use the letters on the drawing.
| Tube OD | A |
|---|---|
| 1" | 3.500 |
| 1-1/2" | 3.500 |
| 2" | 4.500 |
| 2-1/2" | 5.500 |
| 3" | 6.500 |
| 4" | 8.625 |
| 6" | 8.875 |
Standard Specifications
We offer stainless steel sanitary clamp true y in a variety of sizes and specifications.Stainless Steel Grades
Check out our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our SS products including our stainless steel sanitary clamp true y. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for Clamp Fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Clamp Fittings meet all 3A requirements.Frequently Asked Questions
What sizes of sanitary clamp true Y fittings do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary clamp true Y fittings, from 1" to 6". For other sizes or grades, call (800) 282-9694 or send us a message.
What does A mean in the chart?
On our drawing A runs from the center to the end of a leg; our data sheet gives one A for each size. For a 2" clamp true Y it is 4.500".
How do I get a price?
Prices are listed in the product table on this page. For a size or grade that is not listed, call (800) 282-9694 or send us a message.
