Sanitary Weld 45 Degree Reducing Laterals
Sanitary Weld 45 Degree Reducing Laterals
The product table below lists 304 and 316L stainless steel sanitary weld 45 degree reducing laterals, from 1-1/2" × 1" to 4" × 3". A dimension chart follows the table.
Get a price: these items are priced on request (the product table below shows "Quote"); call (800) 282-9694 or send us a message for a quote.
Stainless steel sanitary weld reducing laterals are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes. Sanitary weld fittings meet all 3A requirements.Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 45 Degree Reducing Lateral | Weld | 1 | 304 Stainless Steel | | |||
| 1 1/2 | 45 Degree Reducing Lateral | Weld | 1 | 316 Stainless Steel | | |||
| 2 | 45 Degree Reducing Lateral | Weld | 1 1/2 | 304 Stainless Steel | | |||
| 2 | 45 Degree Reducing Lateral | Weld | 1 1/2 | 316 Stainless Steel | | |||
| 2 | 45 Degree Reducing Lateral | Weld | 1 | 304 Stainless Steel | | |||
| 2 | 45 Degree Reducing Lateral | Weld | 1 | 316 Stainless Steel | | |||
| 2 1/2 | 45 Degree Reducing Lateral | Weld | 1 1/2 | 304 Stainless Steel | | |||
| 2 1/2 | 45 Degree Reducing Lateral | Weld | 1 1/2 | 316 Stainless Steel | | |||
| 2 1/2 | 45 Degree Reducing Lateral | Weld | 1 | 304 Stainless Steel | | |||
| 2 1/2 | 45 Degree Reducing Lateral | Weld | 1 | 316 Stainless Steel | | |||
| 2 1/2 | 45 Degree Reducing Lateral | Weld | 2 | 304 Stainless Steel | | |||
| 2 1/2 | 45 Degree Reducing Lateral | Weld | 2 | 316 Stainless Steel | | |||
| 3 | 45 Degree Reducing Lateral | Weld | 1 1/2 | 304 Stainless Steel | | |||
| 3 | 45 Degree Reducing Lateral | Weld | 1 1/2 | 316 Stainless Steel | | |||
| 3 | 45 Degree Reducing Lateral | Weld | 1 | 304 Stainless Steel | | |||
| 3 | 45 Degree Reducing Lateral | Weld | 1 | 316 Stainless Steel | | |||
| 3 | 45 Degree Reducing Lateral | Weld | 2 1/2 | 304 Stainless Steel | | |||
| 3 | 45 Degree Reducing Lateral | Weld | 2 | 304 Stainless Steel | | |||
| 3 | 45 Degree Reducing Lateral | Weld | 2 | 316 Stainless Steel | | |||
| 3 | 45 Degree Reducing Lateral | Weld | 2 1/2 | 316 Stainless Steel | | |||
| 4 | 45 Degree Reducing Lateral | Weld | 1 1/2 | 304 Stainless Steel | | |||
| 4 | 45 Degree Reducing Lateral | Weld | 1 1/2 | 316 Stainless Steel | | |||
| 4 | 45 Degree Reducing Lateral | Weld | 1 | 304 Stainless Steel | | |||
| 4 | 45 Degree Reducing Lateral | Weld | 1 | 316 Stainless Steel | | |||
| 4 | 45 Degree Reducing Lateral | Weld | 2 1/2 | 304 Stainless Steel | |
Product Info

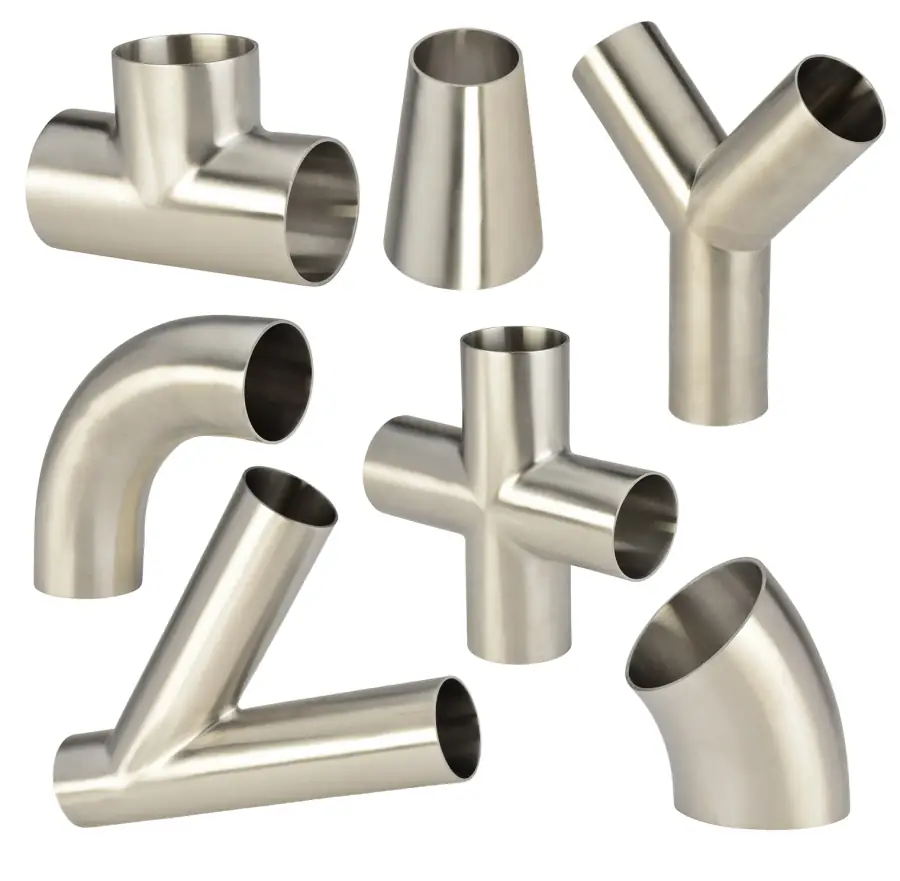

We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld reducing laterals to meet your specifications. View our full line of stainless steel products.Dimensions
Dimensions in inches, from our sanitary weld data sheet. The column letters are the ones on the drawing.
| Tube OD | A | B | C | Nom. Wall |
|---|---|---|---|---|
| 1-1/2" × 1" | 7.375 | 6.187 | 1.187 | 0.065 |
| 2" × 1" | 8.625 | 7.125 | 1.500 | 0.065 |
| 2" × 1-1/2" | 8.625 | 7.125 | 1.500 | 0.065 |
| 2-1/2" × 1" | 10.125 | 8.500 | 1.625 | 0.065 |
| 2-1/2" × 1-1/2" | 10.125 | 8.500 | 1.625 | 0.065 |
| 2-1/2" × 2" | 10.125 | 8.500 | 1.625 | 0.065 |
| 3" × 1" | 10.750 | 8.875 | 1.875 | 0.065 |
| 3" × 1-1/2" | 10.750 | 8.875 | 1.875 | 0.065 |
| 3" × 2" | 10.750 | 8.875 | 1.875 | 0.065 |
| 3" × 2-1/2" | 10.750 | 8.875 | 1.875 | 0.065 |
| 4" × 1" | 12.812 | 10.750 | 2.062 | 0.083 × .065 |
| 4" × 1-1/2" | 12.812 | 10.750 | 2.062 | 0.083 × .065 |
| 4" × 2" | 12.812 | 10.750 | 2.062 | 0.083 × .065 |
| 4" × 2-1/2" | 12.812 | 10.750 | 2.062 | 0.083 × .065 |
| 4" × 3" | 12.812 | 10.750 | 2.062 | 0.083 × .065 |
Swipe the chart sideways to see every column.
Where the wall shows two values, they go with the two sizes in order (for example 4" × 1": 0.083 × .065).
Standard Specifications
We offer stainless steel sanitary weld reducing laterals in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld reducing laterals. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld 45° reducing laterals with weld ends.Frequently Asked Questions
What sizes of sanitary weld 45 degree reducing laterals do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary weld 45 degree reducing laterals, from 1-1/2" × 1" to 4" × 3". For other sizes or alloys, call (800) 282-9694 or send us a message.
How long is a reducing lateral?
A in the chart is the length of the run: a 3" × 2" reducing lateral measures A 10.750". C, 1.875", is the distance from the end of the run to where the branch centerline meets it.
How do I get a price?
These items are priced on request: the product table shows "Quote" for each one. Call (800) 282-9694 or send us a message for a quote.
