Stainless Butt Weld Tee Dimensions Chart

Size	Product Type	Pressure	Grade	Price	Quantity
1/2	Tee	Sch 10s	304 Stainless	$24.44	Max: Min: 1 Step: 1	View	Add to Cart
1/2	Tee	Sch 10s	316 Stainless	$30.20	Max: Min: 1 Step: 1	View	Add to Cart
1/2	Tee	Sch 40s	304 Stainless	$26.19	Max: Min: 1 Step: 1	View	Add to Cart
1/2	Tee	Sch 40s	316 Stainless	$32.86	Max: Min: 1 Step: 1	View	Add to Cart
1/2	Tee	Sch 5s	304 Stainless	Quote	Max: Min: 1 Step: 1	View	Add to Cart
1/2	Tee	Sch 5s	316 Stainless	Quote	Max: Min: 1 Step: 1	View	Add to Cart
1/2	Tee	Sch 80s	304 Stainless	Quote	Max: Min: 1 Step: 1	View	Add to Cart
1/2	Tee	Sch 80s	316 Stainless	Quote	Max: Min: 1 Step: 1	View	Add to Cart
3/4	Tee	Sch 10s	304 Stainless	$24.44	Max: Min: 1 Step: 1	View	Add to Cart
3/4	Tee	Sch 10s	316 Stainless	$30.20	Max: Min: 1 Step: 1	View	Add to Cart
3/4	Tee	Sch 40s	304 Stainless	$26.19	Max: Min: 1 Step: 1	View	Add to Cart
3/4	Tee	Sch 40s	316 Stainless	$32.86	Max: Min: 1 Step: 1	View	Add to Cart
3/4	Tee	Sch 5s	304 Stainless	Quote	Max: Min: 1 Step: 1	View	Add to Cart
3/4	Tee	Sch 5s	316 Stainless	Quote	Max: Min: 1 Step: 1	View	Add to Cart
3/4	Tee	Sch 80s	304 Stainless	Quote	Max: Min: 1 Step: 1	View	Add to Cart
3/4	Tee	Sch 80s	316 Stainless	Quote	Max: Min: 1 Step: 1	View	Add to Cart
1	Tee	Sch 10s	304 Stainless	$24.44	Max: Min: 1 Step: 1	View	Add to Cart
1	Tee	Sch 10s	316 Stainless	$30.20	Max: Min: 1 Step: 1	View	Add to Cart
1	Tee	Sch 40s	304 Stainless	$26.19	Max: Min: 1 Step: 1	View	Add to Cart
1	Tee	Sch 40s	316 Stainless	$32.86	Max: Min: 1 Step: 1	View	Add to Cart
1	Tee	Sch 5s	304 Stainless	Quote	Max: Min: 1 Step: 1	View	Add to Cart
1	Tee	Sch 5s	316 Stainless	Quote	Max: Min: 1 Step: 1	View	Add to Cart
1	Tee	Sch 80s	304 Stainless	Quote	Max: Min: 1 Step: 1	View	Add to Cart
1	Tee	Sch 80s	316 Stainless	Quote	Max: Min: 1 Step: 1	View	Add to Cart
1 1/4	Tee	Sch 10s	304 Stainless	$37.26	Max: Min: 1 Step: 1	View	Add to Cart

Product Info

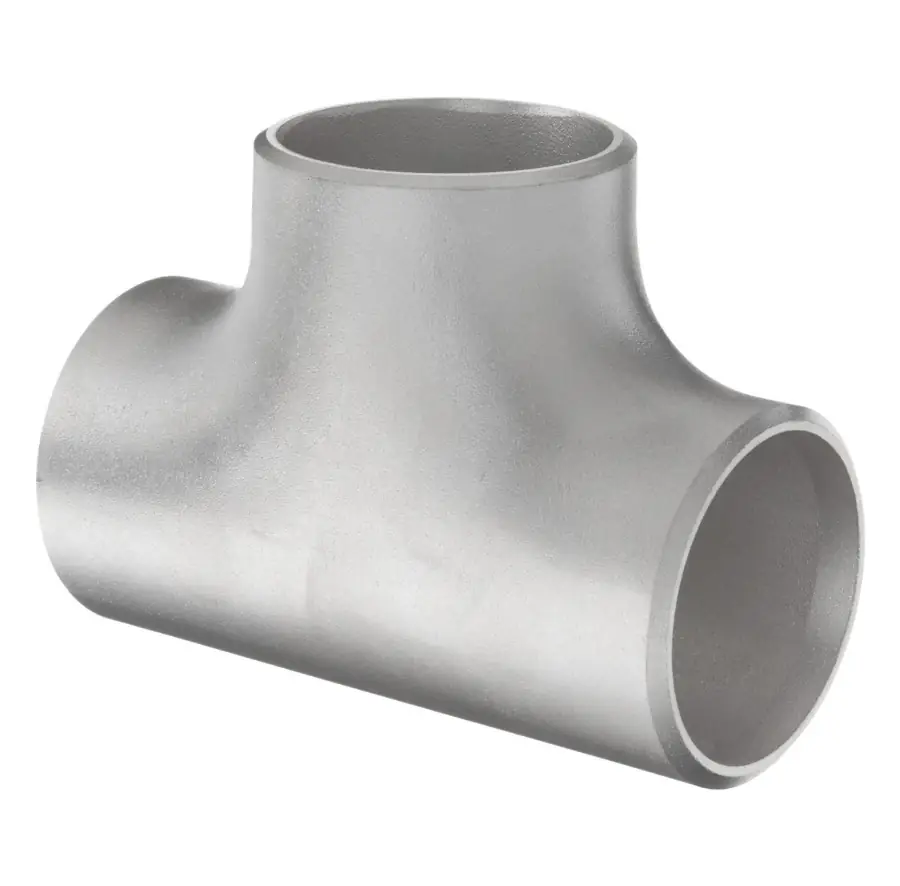

Our stainless steel butt weld pipe tees include butt weld straight tees and butt weld reducing tees. Made from 300 series high strength stainless steel. View an overview of our stainless steel product offerings.

Dimensions

The charts below list straight tee dimensions and approximate weights by schedule. Reducing tee charts are on our butt weld reducing tees page.

Dimensions in inches; approximate weight in pounds per fitting. ID = inside diameter, OD = outside diameter. A dash means no value is listed for that size and schedule. The charts reproduce our full data sheet, including Schedule 160, XX Strong and sizes that are not in the product table (which lists Schedule 5S, 10S, 40S and 80S). Call us for availability.

Stainless steel butt weld straight tee: dimensions and weights, Schedule 5S, 10S and 40S
Size	OD (in.)	Center to end C (in.)	Schedule 5S			Schedule 10S			Schedule 40S
Size	OD (in.)	Center to end C (in.)	ID (in.)	Wall (in.)	Weight (lb)	ID (in.)	Wall (in.)	Weight (lb)	ID (in.)	Wall (in.)	Weight (lb)
1/2"	0.840	1	0.710	0.065	0.19	0.674	0.083	0.21	0.622	0.109	0.23
3/4"	1.050	1-1/8	0.920	0.065	0.22	0.884	0.083	0.28	0.824	0.113	0.38
1"	1.315	1-1/2	1.185	0.065	0.40	1.097	0.109	0.63	1.049	0.133	0.65
1-1/4"	1.660	1-7/8	1.530	0.065	0.75	1.442	0.109	1.10	1.380	0.140	1.31
1-1/2"	1.900	2-1/4	1.770	0.065	0.95	1.682	0.109	1.50	1.610	0.145	1.90
2"	2.375	2-1/2	2.245	0.065	1.20	2.157	0.109	1.87	2.067	0.154	2.83
2-1/2"	2.875	3	2.709	0.083	2.15	2.635	0.120	3.10	2.469	0.203	4.85
3"	3.500	3-3/8	3.334	0.083	3.40	3.260	0.120	3.90	3.068	0.216	7.30
3-1/2"	4.000	3-3/4	3.834	0.083	5.50	3.760	0.120	5.88	3.548	0.226	9.00
4"	4.500	4-1/8	4.334	0.083	7.20	4.260	0.120	7.63	4.026	0.237	11.63
5"	5.563	4-7/8	5.345	0.109	13.00	5.295	0.134	13.45	5.047	0.258	20.75
6"	6.625	5-5/8	6.407	0.109	17.20	6.357	0.134	17.80	6.065	0.280	24.25
8"	8.625	7	8.407	0.109	31.00	8.329	0.148	34.50	7.981	0.322	46.10
10"	10.750	8-1/2	10.482	0.134	55.00	10.420	0.165	59.00	10.020	0.365	78.00
12"	12.750	10	12.438	0.156	83.00	12.390	0.180	87.00	12.000	0.375	137.00
14"	14.000	11	13.688	0.156	89.00	13.624	0.188	107.00	13.250	0.375	175.00
16"	16.000	12	15.670	0.165	115.00	15.624	0.188	130.00	15.250	0.375	220.00
18"	18.000	13-1/2	17.670	0.165	149.00	17.624	0.188	169.00	17.250	0.375	286.00
20"	20.000	15	19.624	0.188	171.00	19.564	0.218	228.00	19.250	0.375	358.00
24"	24.000	17	23.564	0.218	298.00	23.500	0.250	343.00	23.250	0.375	498.00

Stainless steel butt weld straight tee: dimensions and weights, Schedule 80S, 160 and XX Strong
Size	OD (in.)	Center to end C (in.)	Schedule 80S			Schedule 160			XX Strong
Size	OD (in.)	Center to end C (in.)	ID (in.)	Wall (in.)	Weight (lb)	ID (in.)	Wall (in.)	Weight (lb)	ID (in.)	Wall (in.)	Weight (lb)
1/2"	0.840	1	0.546	0.147	0.30	0.464	0.188	0.38	0.252	0.294	0.60
3/4"	1.050	1-1/8	0.742	0.154	0.45	0.612	0.219	0.64	0.434	0.308	0.90
1"	1.315	1-1/2	0.957	0.179	0.85	0.815	0.250	1.19	0.599	0.358	1.70
1-1/4"	1.660	1-7/8	1.278	0.191	1.50	1.160	0.250	1.97	0.896	0.382	3.00
1-1/2"	1.900	2-1/4	1.500	0.200	2.25	1.338	0.281	3.15	1.100	0.400	4.50
2"	2.375	2-1/2	1.939	0.218	3.50	1.689	0.343	5.50	1.503	0.436	7.00
2-1/2"	2.875	3	2.323	0.276	6.90	2.125	0.375	9.38	1.771	0.552	13.80
3"	3.500	3-3/8	2.900	0.300	9.80	2.624	0.438	14.31	2.300	0.600	19.60
3-1/2"	4.000	3-3/4	3.364	0.318	12.00	–	–	–	2.728	0.636	24.00
4"	4.500	4-1/8	3.826	0.337	17.00	3.438	0.531	26.86	3.152	0.674	34.00
5"	5.563	4-7/8	4.813	0.375	25.00	4.313	0.625	41.75	4.063	0.750	50.00
6"	6.625	5-5/8	5.761	0.432	30.00	5.187	0.719	49.80	4.897	0.864	60.00
8"	8.625	7	7.625	0.500	62.00	6.813	0.906	112.00	6.875	0.875	108.00
10"	10.750	8-1/2	9.750	0.500	110.00	8.500	1.125	247.00	–	–	–
12"	12.750	10	11.750	0.500	185.00	10.126	1.312	484.00	–	–	–
14"	14.000	11	13.000	0.500	210.00	11.188	1.406	590.00	–	–	–
16"	16.000	12	15.000	0.500	265.00	12.812	1.594	812.00	–	–	–
18"	18.000	13-1/2	17.000	0.500	344.00	14.438	1.781	1097.00	–	–	–
20"	20.000	15	19.000	0.500	430.00	16.062	1.969	1690.00	–	–	–
24"	24.000	17	23.000	0.500	600.00	19.312	2.344	2950.00	–	–	–

Pipe Sizes & Weights

Select various stainless butt weld tee sizes, grades and schedules. Our pipe sizes and weights chart will assist in your research of individual product specifications.

Standard Specifications

Butt weld tees conform to ASTM A403 with dimensional tolerances in accordance with MSS SP-43 for schedules 5s and 10s, and with ANSI B16.9 for schedules heavier than 10s. View the standard specifications chart.

Stainless Steel Grades

Stainless steel butt weld tees available from Shaw Stainless & Alloy Piping. Here are the various grades of stainless steel.

Reference Catalog

We designed a Reference Catalog to help identify our offering of stainless steel buttweld tees and other pipe fittings through drawings and additional information.

Theoretical Bursting Pressures

Here is a chart to review theoretical bursting pressures for various stainless steel pipe.

Additional Info

The most common pipe fitting is a stainless steel pipe tee or specifically a straight pipe tee. Tees have two outlets at 90 degrees from the main flow and are used to combine or split fluid or gas flow. Tees connect and combine pipe systems or they can connect various size pipes together with reducing tees. A reducing tee can connect various sizes of pipes together in one pipe system.

Frequently Asked Questions

What sizes of butt weld tees do you carry?

The product table on this page lists 304 and 316 stainless steel straight tees from 1/2" to 24" in Schedule 5S, 10S, 40S and 80S. For other sizes, schedules or alloys, call (800) 282-9694 or send us a message.

What is the center-to-end dimension of a butt weld tee?

It is the distance from the center of the tee to the face of each of its three ends, C in the charts on this page. A 2" tee measures 2-1/2" and a 4" tee measures 4-1/8".

What is the difference between a straight tee and a reducing tee?

A straight (equal) tee has three ends of the same size. A reducing tee has a smaller outlet (branch), so it connects pipes of different sizes. See our butt weld reducing tees.

How much does a butt weld tee weigh?

It depends on the size and schedule. The charts on this page list approximate weights: a 4" tee weighs about 7.63 lb in Schedule 10S and 11.63 lb in Schedule 40S.

Do you carry Schedule 160 and XX Strong tees?

They are not in our online product table, which lists Schedule 5S, 10S, 40S and 80S; call (800) 282-9694 or send us a message to ask about availability. The second chart on this page lists their dimensions from our data sheet.

What standards do your butt weld tees meet?

Our butt weld tees generally conform to ASTM A403, with dimensional tolerances in accordance with MSS SP-43 for Schedule 5S and 10S and with ANSI B16.9 for schedules heavier than 10S.

How do I get a price?

Prices are listed in the product table on this page. If an item shows Quote, or you need a size or schedule that is not listed, call (800) 282-9694 or send us a message.
