150 lb Stainless Steel Cast Tees
150 lb Stainless Steel Cast Tees
The product table below lists 304 and 316 stainless steel 150 lb cast tees, threaded (NPT) from 1/8" to 4" and socket weld from 1/4" to 4". Dimension charts follow the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.

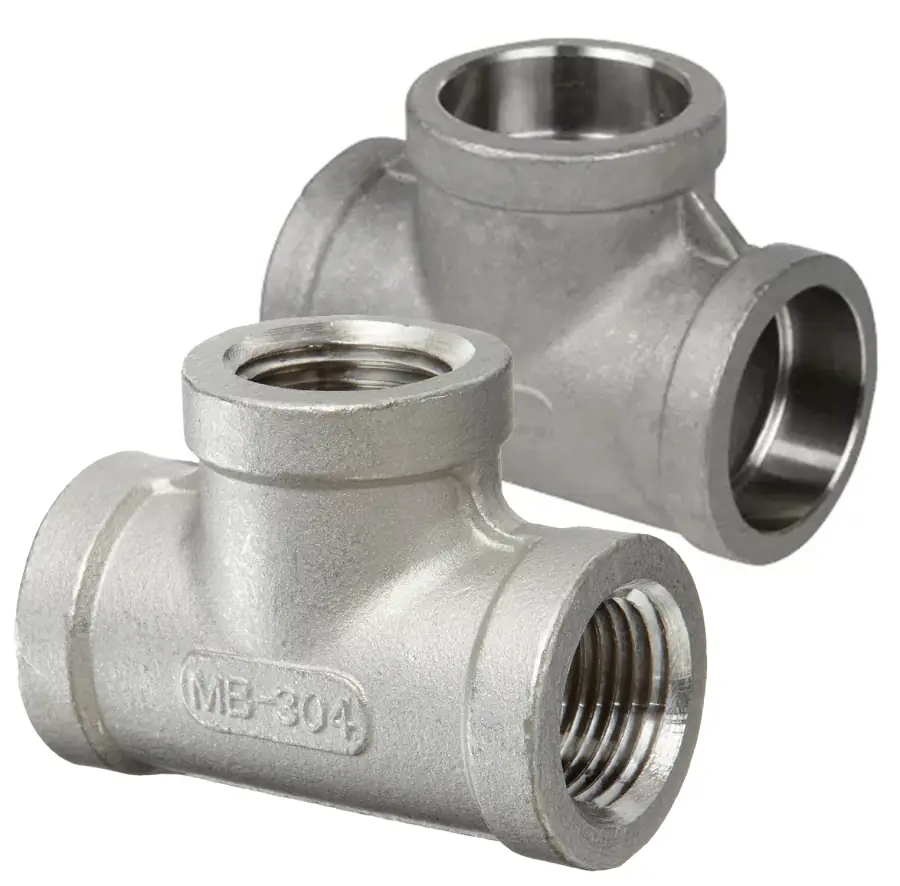

Our 150 lb stainless steel cast tees are high quality, corrosion-resistant and are available in many sizes to fit your stainless pipe fitting specifications.Pressure: Class 150
End Connections: Threaded - Socket Weld
Alloys: Aluminum - Carbon - Stainless
Filter Products
Size | Product Type | Reducing | Pressure | End Type | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1/8 | Tee | 150# | Threaded | 316 Stainless | $4.64 | | |||
| 1/8 | Tee | 150# | Threaded | 304 Stainless | $3.88 | | |||
| 1/4 | Tee | 150# | Socket Weld | 304 Stainless | $4.42 | | |||
| 1/4 | Tee | 150# | Threaded | 316 Stainless | $4.64 | | |||
| 1/4 | Tee | 150# | Socket Weld | 316 Stainless | $5.26 | | |||
| 1/4 | Tee | 150# | Threaded | 304 Stainless | $3.88 | | |||
| 3/8 | Tee | 150# | Socket Weld | 304 Stainless | $5.63 | | |||
| 3/8 | Tee | 150# | Threaded | 316 Stainless | $6.14 | | |||
| 3/8 | Tee | 150# | Socket Weld | 316 Stainless | $6.98 | | |||
| 3/8 | Tee | 150# | Threaded | 304 Stainless | $4.97 | | |||
| 1/2 | Tee | 150# | Threaded | 316 Stainless | $6.52 | | |||
| 1/2 | Tee | 150# | Socket Weld | 304 Stainless | $5.97 | | |||
| 1/2 | Tee | 150# | Threaded | 304 Stainless | $5.23 | | |||
| 1/2 | Tee | 150# | Socket Weld | 316 Stainless | $7.38 | | |||
| 3/4 | Tee | 150# | Threaded | 316 Stainless | $9.58 | | |||
| 3/4 | Tee | 150# | Threaded | 304 Stainless | $8.32 | | |||
| 3/4 | Tee | 150# | Socket Weld | 304 Stainless | $9.42 | | |||
| 3/4 | Tee | 150# | Socket Weld | 316 Stainless | $10.87 | | |||
| 1 | Tee | 150# | Threaded | 316 Stainless | $12.05 | | |||
| 1 | Tee | 150# | Socket Weld | 304 Stainless | $12.00 | | |||
| 1 | Tee | 150# | Socket Weld | 316 Stainless | $13.64 | | |||
| 1 | Tee | 150# | Threaded | 304 Stainless | $10.61 | | |||
| 1 1/4 | Tee | 150# | Socket Weld | 304 Stainless | $23.95 | | |||
| 1 1/4 | Tee | 150# | Threaded | 304 Stainless | $21.10 | | |||
| 1 1/4 | Tee | 150# | Socket Weld | 316 Stainless | $27.16 | |
Product Info
Our 150 lb stainless steel cast tees come in 304 and 316 stainless and offered in a variety of sizes for almost any piping need. We offer 150 lb threaded cast tees and 150 lb socket weld cast tees. View our stainless steel products line card.Dimensions

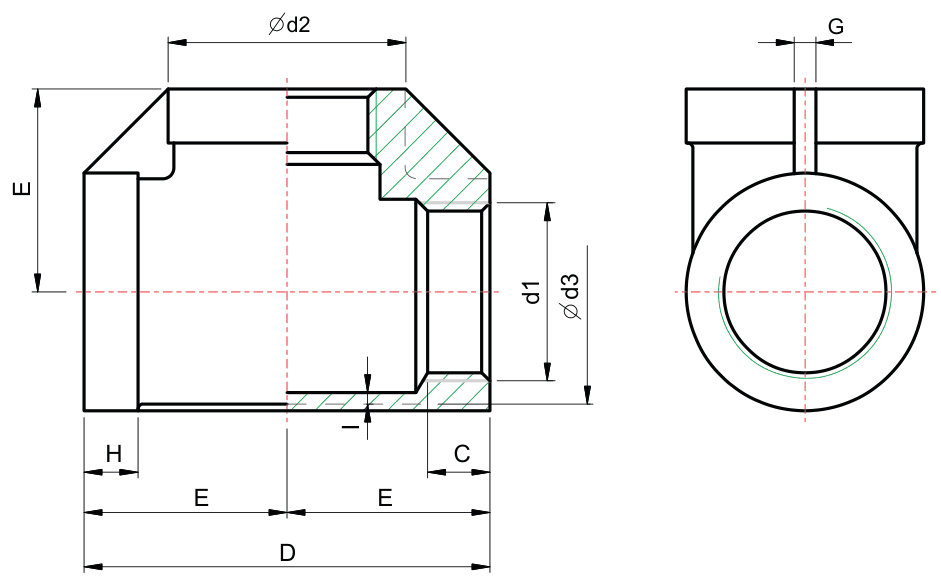

Dimensions in inches, from our data sheet. The column letters are the ones on the drawing.
Threaded (NPT) items
| Size | d1 | d2 | d3 | C | D | E | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| 1/8" | 1/8" | 0.63 | 0.53 | 0.24 | 1.42 | 0.71 | 0.12 | 0.24 | 0.10 |
| 1/4" | 1/4" | 0.75 | 0.61 | 0.37 | 1.54 | 0.77 | 0.12 | 0.24 | 0.08 |
| 3/8" | 3/8" | 0.89 | 0.77 | 0.38 | 1.85 | 0.93 | 0.12 | 0.26 | 0.10 |
| 1/2" | 1/2" | 1.10 | 1.02 | 0.39 | 2.28 | 1.14 | 0.12 | 0.30 | 0.08 |
| 3/4" | 3/4" | 1.34 | 1.24 | 0.39 | 2.56 | 1.28 | 0.12 | 0.33 | 0.08 |
| 1" | 1" | 1.69 | 1.57 | 0.51 | 2.91 | 1.46 | 0.16 | 0.37 | 0.08 |
| 1-1/4" | 1-1/4" | 2.01 | 1.89 | 0.65 | 3.50 | 1.75 | 0.20 | 0.41 | 0.08 |
| 1-1/2" | 1-1/2" | 2.32 | 2.22 | 0.63 | 3.82 | 1.91 | 0.20 | 0.45 | 0.10 |
| 2" | 2" | 2.83 | 2.68 | 0.71 | 4.45 | 2.22 | 0.24 | 0.47 | 0.10 |
| 2-1/2" | 2-1/2" | 3.54 | 3.39 | 0.91 | 5.35 | 2.68 | 0.35 | 0.57 | 0.16 |
| 3" | 3" | 4.17 | 4.00 | 0.96 | 6.18 | 3.09 | 0.39 | 0.59 | 0.16 |
| 4" | 4" | 5.20 | 5.00 | 1.02 | 7.68 | 3.84 | 0.35 | 0.61 | 0.16 |

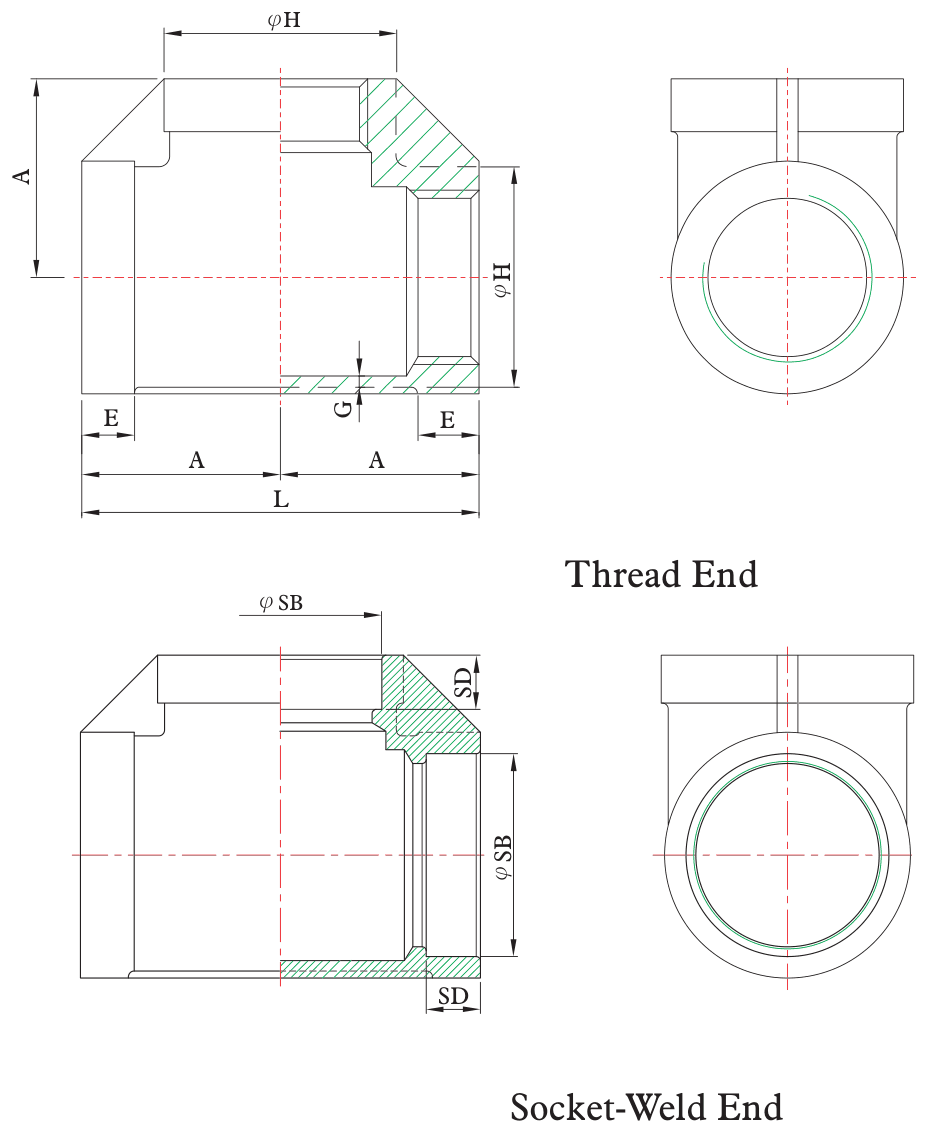

Socket weld items: dimensions from our heavy pattern (MSS SP-114) data sheet
Each socket weld item's product page links our heavy pattern (MSS SP-114) data sheet, so that sheet's chart is shown here. Socket weld items are sold from 1/4"; the sheet also lists 1/8". This chart uses its own drawing's letters, so a letter can stand for a different dimension than in the threaded chart. SB and SD are on the socket weld end drawing; the other letters are on the thread end drawing.
| Size | A | E | G | H | L | SB | SD |
|---|---|---|---|---|---|---|---|
| 1/8" | 0.81 | 0.20 | 0.09 | 0.75 | 1.62 | 0.43 | 0.39 |
| 1/4" | 0.81 | 0.20 | 0.09 | 0.84 | 1.62 | 0.56 | 0.39 |
| 3/8" | 0.93 | 0.21 | 0.10 | 1.01 | 1.86 | 0.69 | 0.39 |
| 1/2" | 1.12 | 0.25 | 0.10 | 1.20 | 2.24 | 0.85 | 0.39 |
| 3/4" | 1.31 | 0.27 | 0.12 | 1.46 | 2.62 | 1.07 | 0.51 |
| 1" | 1.50 | 0.30 | 0.13 | 1.77 | 3.00 | 1.33 | 0.51 |
| 1-1/4" | 1.75 | 0.34 | 0.14 | 2.15 | 3.50 | 1.68 | 0.51 |
| 1-1/2" | 1.93 | 0.37 | 0.15 | 2.43 | 3.86 | 1.92 | 0.51 |
| 2" | 2.25 | 0.42 | 0.17 | 2.96 | 4.50 | 2.41 | 0.63 |
| 2-1/2" | 2.68 | 0.48 | 0.21 | 3.31 | 5.36 | 2.91 | 0.63 |
| 3" | 3.06 | 0.55 | 0.23 | 4.00 | 6.12 | 3.54 | 0.63 |
| 4" | 3.81 | 0.66 | 0.26 | 5.06 | 7.62 | 4.55 | 0.75 |
Standard Specifications
Stainless steel tees generally conform to ASA B16.3 and pipe threads conform to ASA B2.1 standard for manufacturing. View the standard specifications chart.Stainless Steel Grades
Threaded or socket weld cast tees available in 304 and 316 from Shaw Stainless & Alloy. View the various grades of stainless steel.Reference Catalog
View thousands of stainless steel pipe and tubing products and various custom fabrication services Shaw Stainless offers. This Reference Catalog identifies stainless steel cast tees and other pipe fittings with specification charts and illustrations.Additional Info
A pipe tee is one of the most common pipe fittings. Pipe tees are used to combine or divide fluids or gases. Tees are used to also change directions in a piping system and connecting pipes of different sizes and diameters. When checking the size and purchasing tees the measurement is (x end, x end, x center).Frequently Asked Questions
What sizes of 150 lb cast tees do you carry?
The product table on this page lists 304 and 316 stainless steel 150 lb cast tees: threaded (NPT) from 1/8" to 4" and socket weld from 1/4" to 4". For other sizes or alloys, call (800) 282-9694 or send us a message.
What are the main dimensions of a threaded tee?
E is the distance from the center of the tee to the face of each end, and D is the overall length of the run. A 1" threaded tee measures 1.46" (E) and 2.91" (D).
What is a pipe tee used for?
Pipe tees are used to combine or divide fluids or gases, and to change direction in a piping system.
Why does this page have two charts?
Threaded and socket weld tees have different data sheets. Each threaded item's product page links our 150 lb threaded (NPT) data sheet, shown in the first chart; each socket weld item's product page links our heavy pattern (MSS SP-114) data sheet, shown in the second chart. Each chart uses the letters of its own drawing.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
