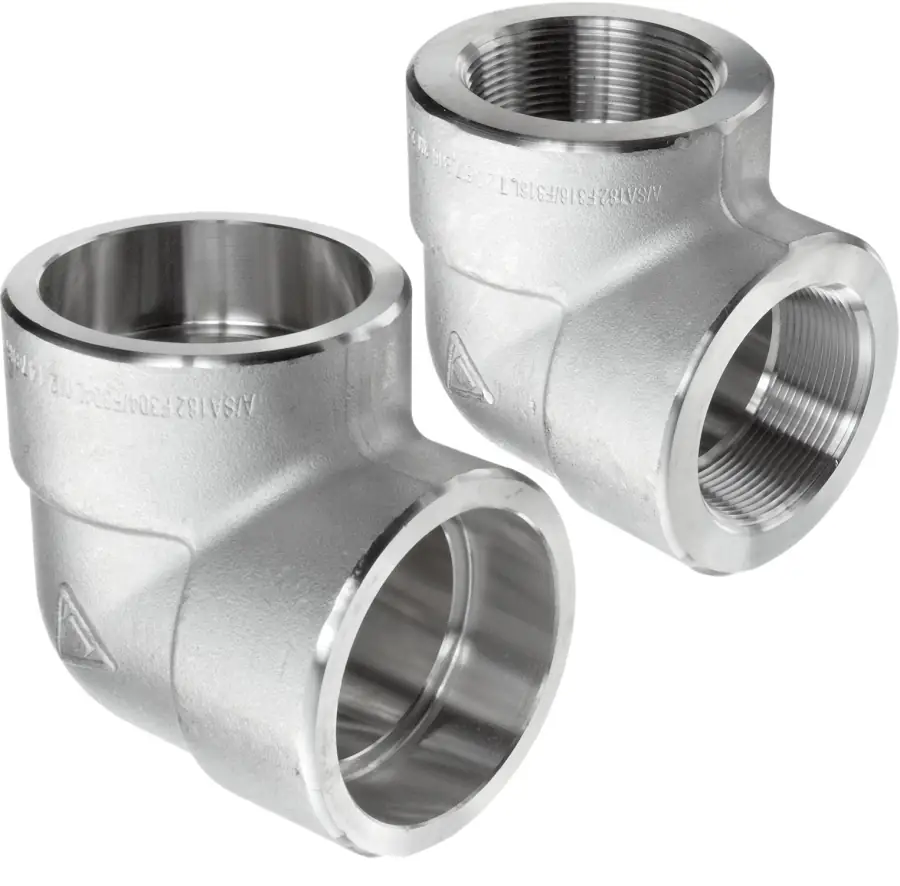

The product table below lists 304 and 316 stainless steel 3000 lb forged 90 degree elbows, threaded and socket weld, from 1/4" to 2". Dimension charts follow the table.
Get a price: the product table below lists prices; for a size, end connection or grade that is not listed, call (800) 282-9694 or send us a message.
Our 3000 lb stainless steel forged 90 degree elbows are available in many sizes to meet your required piping specifications. Allow us to facilitate your forged fitting needs quickly with high quality strength and resistance to corrosion.Pressure: Class 3000
End Connections: Threaded - Socket Weld
Grades: 304 - 316
Filter Products
Size | Product Type | Reducing | Pressure | End Type | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 90 Degree Elbow | 3000# | Socket Weld | 304 Stainless | $11.28 | | |||
| 1/4 | 90 Degree Elbow | 3000# | Socket Weld | 316 Stainless | $13.78 | | |||
| 1/4 | 90 Degree Elbow | 3000# | Threaded | 304 Stainless | $14.04 | | |||
| 1/4 | 90 Degree Elbow | 3000# | Threaded | 316 Stainless | $16.30 | | |||
| 3/8 | 90 Degree Elbow | 3000# | Socket Weld | 304 Stainless | $14.67 | | |||
| 3/8 | 90 Degree Elbow | 3000# | Socket Weld | 316 Stainless | $16.06 | | |||
| 3/8 | 90 Degree Elbow | 3000# | Threaded | 304 Stainless | $19.84 | | |||
| 3/8 | 90 Degree Elbow | 3000# | Threaded | 316 Stainless | $21.90 | | |||
| 1/2 | 90 Degree Elbow | 3000# | Socket Weld | 304 Stainless | $16.75 | | |||
| 1/2 | 90 Degree Elbow | 3000# | Socket Weld | 316 Stainless | $21.03 | | |||
| 1/2 | 90 Degree Elbow | 3000# | Threaded | 304 Stainless | $21.16 | | |||
| 1/2 | 90 Degree Elbow | 3000# | Threaded | 316 Stainless | $27.85 | | |||
| 3/4 | 90 Degree Elbow | 3000# | Socket Weld | 304 Stainless | $20.24 | | |||
| 3/4 | 90 Degree Elbow | 3000# | Socket Weld | 316 Stainless | $27.73 | | |||
| 3/4 | 90 Degree Elbow | 3000# | Threaded | 304 Stainless | $30.57 | | |||
| 3/4 | 90 Degree Elbow | 3000# | Threaded | 316 Stainless | $41.51 | | |||
| 1 | 90 Degree Elbow | 3000# | Socket Weld | 304 Stainless | $30.57 | | |||
| 1 | 90 Degree Elbow | 3000# | Socket Weld | 316 Stainless | $41.21 | | |||
| 1 | 90 Degree Elbow | 3000# | Threaded | 304 Stainless | $46.78 | | |||
| 1 | 90 Degree Elbow | 3000# | Threaded | 316 Stainless | $70.61 | | |||
| 1 1/4 | 90 Degree Elbow | 3000# | Socket Weld | 304 Stainless | $48.84 | | |||
| 1 1/4 | 90 Degree Elbow | 3000# | Socket Weld | 316 Stainless | $73.51 | | |||
| 1 1/4 | 90 Degree Elbow | 3000# | Threaded | 304 Stainless | $69.09 | | |||
| 1 1/4 | 90 Degree Elbow | 3000# | Threaded | 316 Stainless | $89.39 | | |||
| 1 1/2 | 90 Degree Elbow | 3000# | Socket Weld | 304 Stainless | $68.33 | |
Product Info
Our 3000 lb Stainless Forged 90 degree elbows come in a variety of sizes and angles to meet almost any stainless steel piping configuration. Our high quality SS 3000# elbows meet the highest standards. We inventory a variety of stainless steel threaded and socket weld forged elbows to meet your piping needs. View our stainless steel product offerings.Dimensions
We stock a wide variety of stainless steel forged elbows.
Dimensions in inches, from our forged fitting data sheets. The columns use the letters on our drawings; not every drawing marks every letter. The threaded and socket weld drawings use some of the same letters for different dimensions.
Our data sheets print Class 3000 and Class 6000 columns for some dimensions; the charts here show the Class 3000 columns.
Charts on this page: Threaded · Socket Weld
Threaded
| Size | A Center to End | H Band OD | G Wall, Min. | B Thread Length, Min. | L2 Thread Length, Min. |
|---|---|---|---|---|---|
| 1/8" | 0.827 | 0.866 | 0.125 | 0.252 | 0.264 |
| 1/4" | 0.984 | 0.984 | 0.130 | 0.319 | 0.402 |
| 3/8" | 1.102 | 1.299 | 0.138 | 0.358 | 0.409 |
| 1/2" | 1.299 | 1.496 | 0.161 | 0.429 | 0.535 |
| 3/4" | 1.496 | 1.811 | 0.170 | 0.500 | 0.547 |
| 1" | 1.732 | 2.205 | 0.196 | 0.579 | 0.681 |
| 1-1/4" | 2.008 | 2.441 | 0.208 | 0.669 | 0.709 |
| 1-1/2" | 2.362 | 2.953 | 0.219 | 0.701 | 0.724 |
| 2" | 2.520 | 3.307 | 0.281 | 0.748 | 0.756 |
| 2-1/2" | 3.268 | 4.016 | 0.301 | 0.929 | 1.138 |
| 3" | 3.740 | 4.764 | 0.348 | 1.020 | 1.201 |
| 4" | 4.488 | 5.984 | 0.440 | 1.091 | 1.299 |
Swipe the chart sideways to see every column.
The chart includes sizes on our data sheet that are not in the product table above. Call us for availability.
Socket Weld
| Size | B Socket Bore | D Bore | C Socket Wall, Ave. | C Socket Wall, Min. | G Body Wall, Min. | J Socket Depth, Min. | A Center to Bottom of Socket | ± A Tolerance |
|---|---|---|---|---|---|---|---|---|
| 1/8" | 0.441 0.425 | 0.299 0.240 | 0.125 | 0.125 | 0.095 | 0.374 | 0.433 | 0.039 |
| 1/4" | 0.575 0.559 | 0.394 0.335 | 0.149 | 0.130 | 0.119 | 0.374 | 0.433 | 0.039 |
| 3/8" | 0.709 0.693 | 0.524 0.465 | 0.158 | 0.138 | 0.126 | 0.374 | 0.531 | 0.059 |
| 1/2" | 0.874 0.858 | 0.654 0.591 | 0.184 | 0.161 | 0.147 | 0.374 | 0.610 | 0.059 |
| 3/4" | 1.087 1.071 | 0.854 0.795 | 0.193 | 0.168 | 0.154 | 0.492 | 0.748 | 0.059 |
| 1" | 1.350 1.335 | 1.079 1.020 | 0.224 | 0.196 | 0.179 | 0.492 | 0.886 | 0.079 |
| 1-1/4" | 1.697 1.681 | 1.409 1.350 | 0.239 | 0.208 | 0.191 | 0.492 | 1.063 | 0.079 |
| 1-1/2" | 1.937 1.921 | 1.638 1.579 | 0.250 | 0.218 | 0.200 | 0.492 | 1.260 | 0.079 |
| 2" | 2.429 2.409 | 2.098 2.035 | 0.273 | 0.238 | 0.218 | 0.630 | 1.496 | 0.079 |
| 2-1/2" | 2.929 2.909 | 2.528 2.409 | 0.345 | 0.302 | 0.276 | 0.630 | 1.614 | 0.098 |
| 3" | 3.555 3.535 | 3.126 3.008 | 0.375 | 0.327 | 0.300 | 0.630 | 2.244 | 0.098 |
| 4" | 4.555 4.535 | 4.087 3.965 | 0.421 | 0.368 | 0.337 | 0.748 | 2.618 | 0.098 |
Swipe the chart sideways to see every column.
This chart combines our two socket weld data sheets: B, D, C, G, J from the elbow, tee and cross sheet; A and its tolerance from the coupling and cap sheet.
The chart includes sizes on our data sheet that are not in the product table above. Call us for availability.
Where a cell shows two figures, both are printed on our data sheet, which does not label them separately.
Standard Specifications
3000# elbows generally conform to ASTM A182 for material and ANSI B16.11 for dimensional specifications.Stainless Steel Grades
View our grades of 3000 lb stainless steel forged 90 degree elbows. available from Shaw Stainless. Review the functionality and application of various grades of stainless steel.Reference Catalog
We designed a resourceful tool to help identify the many different products and services we offer. This Reference Catalog will identify stainless steel 3000# elbows and other pipe fittings through specification charts and illustrations. Some dimensions in the Reference Catalog differ from the charts on this page.Additional Info
A 3000 lb stainless steel forged elbow fitting attaches two pieces of pipe together to provide a change in direction in the piping system. 3000 lb elbows are offered in various degree of angles in both threaded and socket weld. The most common angles are 45 and 90 degree elbows. Stainless steel forged elbows are made from steel billets which are applied to a thermal or mechanical energy, shaping the product while still in a solid shape.Frequently Asked Questions
What sizes of 3000 lb forged 90 degree elbows do you carry?
The product table on this page lists 304 and 316 stainless steel 3000 lb forged 90 degree elbows, threaded and socket weld, from 1/4" to 2". For other sizes or grades, call (800) 282-9694 or send us a message.
What is the center-to-end dimension of a 1" 90 degree elbow?
On our data sheets, a 1" Class 3000 threaded 90° elbow measures 1.732" from center to end (A), and a 1" socket weld 90° elbow 0.886" from center to the bottom of the socket (A).
Why does this page have two charts?
Our data sheets have threaded and socket weld charts, each with its own drawing. The socket weld chart on this page combines our two socket weld sheets, because the drawings on each sheet use letters from the other. Each chart uses the letters on its own drawing.
What does Class 3000 mean on the charts?
Class 3000 is the pressure class of these fittings (3000# in the product table). Our data sheets give some dimensions for Class 3000 and Class 6000; the charts show the Class 3000 columns.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or grade that is not listed, call (800) 282-9694 or send us a message.
