Sanitary Weld Sweep 90 Elbows
Sanitary Weld Sweep 90 Elbows

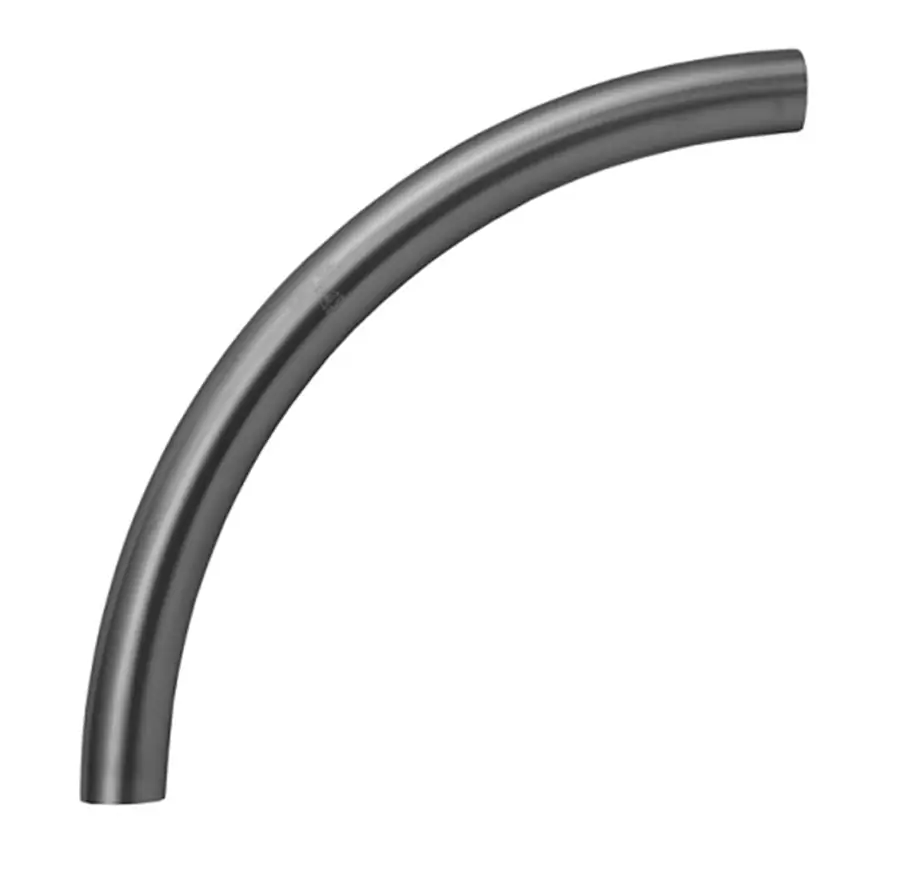

The product table below lists 316L stainless steel sanitary weld 90 degree long sweep elbows with 4" tangents, from 1-1/2" to 6" in centerline radii from 12" to 48". Dimension charts follow the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
Stainless steel sanitary weld 90 degree sweep elbows are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes. Sanitary weld fittings meet all 3A requirements.Sizes: 1" - 6"
Radiuses: 12", 18", 24", 36", 48"
Grades: 304 - 316L
Thicknesses: 1", 1 1/2", 2", 2 1/2", 3": .050" - .071", 4", 5": .066"- .091", 6”: .095" -.120"
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 1/2 | 90 Degree Sweep Elbow | Weld | 12″ CLR (Centerline Radius) | 316 Stainless Steel | $335.00 | | ||
| 1 1/2 | 90 Degree Sweep Elbow | Weld | 18″ CLR (Centerline Radius) | 316 Stainless Steel | $415.00 | | ||
| 1 1/2 | 90 Degree Sweep Elbow | Weld | 24″ CLR (Centerline Radius) | 316 Stainless Steel | $435.00 | | ||
| 1 1/2 | 90 Degree Sweep Elbow | Weld | 36″ CLR (Centerline Radius) | 316 Stainless Steel | $625.00 | | ||
| 2 | 90 Degree Sweep Elbow | Weld | 12″ CLR (Centerline Radius) | 316 Stainless Steel | $400.00 | | ||
| 2 | 90 Degree Sweep Elbow | Weld | 18″ CLR (Centerline Radius) | 316 Stainless Steel | $485.00 | | ||
| 2 | 90 Degree Sweep Elbow | Weld | 24″ CLR (Centerline Radius) | 316 Stainless Steel | $525.00 | | ||
| 2 | 90 Degree Sweep Elbow | Weld | 36″ CLR (Centerline Radius) | 316 Stainless Steel | $548.00 | | ||
| 2 1/2 | 90 Degree Sweep Elbow | Weld | 12″ CLR (Centerline Radius) | 316 Stainless Steel | $555.00 | | ||
| 2 1/2 | 90 Degree Sweep Elbow | Weld | 18″ CLR (Centerline Radius) | 316 Stainless Steel | $605.00 | | ||
| 2 1/2 | 90 Degree Sweep Elbow | Weld | 24″ CLR (Centerline Radius) | 316 Stainless Steel | $625.00 | | ||
| 2 1/2 | 90 Degree Sweep Elbow | Weld | 36″ CLR (Centerline Radius) | 316 Stainless Steel | $770.00 | | ||
| 3 | 90 Degree Sweep Elbow | Weld | 12″ CLR (Centerline Radius) | 316 Stainless Steel | $495.00 | | ||
| 3 | 90 Degree Sweep Elbow | Weld | 18″ CLR (Centerline Radius) | 316 Stainless Steel | $535.00 | | ||
| 3 | 90 Degree Sweep Elbow | Weld | 24″ CLR (Centerline Radius) | 316 Stainless Steel | $605.00 | | ||
| 3 | 90 Degree Sweep Elbow | Weld | 36″ CLR (Centerline Radius) | 316 Stainless Steel | $850.00 | | ||
| 4 | 90 Degree Sweep Elbow | Weld | 12″ CLR (Centerline Radius) | 316 Stainless Steel | $710.00 | | ||
| 4 | 90 Degree Sweep Elbow | Weld | 18″ CLR (Centerline Radius) | 316 Stainless Steel | $940.00 | | ||
| 4 | 90 Degree Sweep Elbow | Weld | 24″ CLR (Centerline Radius) | 316 Stainless Steel | $1,110.00 | | ||
| 4 | 90 Degree Sweep Elbow | Weld | 36″ CLR (Centerline Radius) | 316 Stainless Steel | $1,295.00 | | ||
| 4 | 90 Degree Sweep Elbow | Weld | 48″ CLR (Centerline Radius) | 316 Stainless Steel | $1,325.00 | | ||
| 6 | 90 Degree Sweep Elbow | Weld | 24″ CLR (Centerline Radius) | 316 Stainless Steel | $2,295.00 | | ||
| 6 | 90 Degree Sweep Elbow | Weld | 36″ CLR (Centerline Radius) | 316 Stainless Steel | $2,750.00 | | ||
| 6 | 90 Degree Sweep Elbow | Weld | 48″ CLR (Centerline Radius) | 316 Stainless Steel | $2,695.00 | |
Product Info
We have an extensive inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of sweep elbows with 4” tangents, stainless steel sanitary weld 90 degree sweep elbows to meet your specifications. View our full line of stainless steel products.Dimensions
| CLR | T | A | R |
|---|---|---|---|
| 12" | 4.00 (3.75–4.25) | 16.00 (15.75–16.25) | 12.00 (11.75–12.25) |
| 18" | 4.00 (3.75–4.25) | 22.00 (21.75–22.25) | 18.00 (17.75–18.25) |
| 24" | 4.00 (3.75–4.25) | 28.00 (27.75–28.25) | 24.00 (23.75–24.25) |
| 36" | 4.00 (3.75–4.25) | 40.00 (39.75–40.25) | 36.00 (35.75–36.25) |
| 48" | 4.00 (3.75–4.25) | 52.00 (51.75–52.25) | 48.00 (47.75–48.25) |
Swipe the chart sideways to see every column.

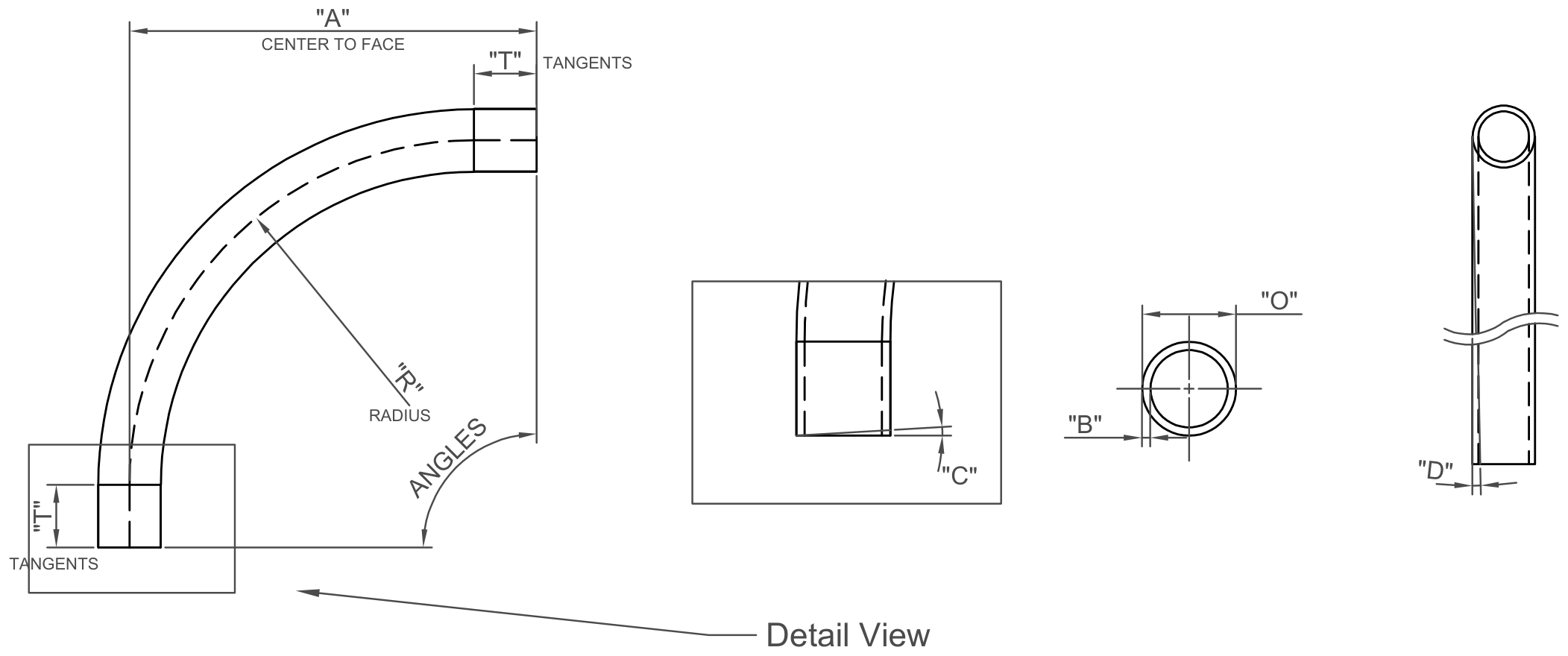

Dimensions in inches, from our sweep elbow data sheet (drawing W2SXL). The letters are the ones on the drawing; our sheet gives T, A and R by centerline radius, not by tube size, and the figures in parentheses are the range it gives.
The product table lists 12" and 18" CLR in 1-1/2", 2", 2-1/2", 3" and 4"; 24" and 36" CLR in 1-1/2", 2", 2-1/2", 3", 4" and 6"; 48" CLR in 4" and 6".
| Nominal Size | O: OD Roundness | B: Wall Thickness | C: End Squareness | D: Off Plane | Angles |
|---|---|---|---|---|---|
| 1" | 0.985–1.015 | 0.050–0.071 | 0.010 MAX | ± 1° | ± 1° |
| 1-1/2" | 1.485–1.515 | 0.050–0.071 | 0.015 MAX | ± 1° | ± 1° |
| 2" | 1.985–2.015 | 0.050–0.071 | 0.015 MAX | ± 1° | ± 1° |
| 2-1/2" | 2.480–2.520 | 0.050–0.071 | 0.020 MAX | ± 1° | ± 1° |
| 3" | 2.969–3.031 | 0.050–0.071 | 0.030 MAX | ± 1-1/2° | ± 1° |
| 4" | 3.960–4.040 | 0.066–0.091 | 0.030 MAX | ± 1-1/2° | ± 1° |
| 5" | 4.950–5.050 | 0.066–0.091 | 0.050 MAX | ± 1-1/2° | ± 1-1/2° |
| 6" | 5.950–6.050 | 0.095–0.120 | 0.050 MAX | ± 1-1/2° | ± 1-1/2° |
Swipe the chart sideways to see every column.
Our data sheet also lists 1" and 5", which are not in the product table.
Standard Specifications
We offer stainless steel sanitary weld 90 degree long sweep elbows in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary long sweep elbows. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. Our inventory of stainless steel sanitary weld long sweep elbows end types are weld. 90 degree long sweep elbows with 4” tangents.Frequently Asked Questions
Which centerline radius (CLR) sweep elbows do you carry?
The product table on this page lists 316L stainless steel sweep elbows with 12" and 18" CLR in 1-1/2", 2", 2-1/2", 3" and 4"; 24" and 36" CLR in 1-1/2", 2", 2-1/2", 3", 4" and 6"; 48" CLR in 4" and 6". For other sizes or alloys, call (800) 282-9694 or send us a message.
How long are the tangents?
Our data sheet gives a tangent (T) of 4.00" at each end for every centerline radius, with a range of 3.75" to 4.25"; the sheet gives T, A and R by centerline radius, not by tube size.
What is the A dimension?
A is the center-to-face dimension on our drawing: the centerline radius plus the tangent. For a 12" CLR sweep elbow it is 16.00"; for a 24" CLR, 28.00".
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
