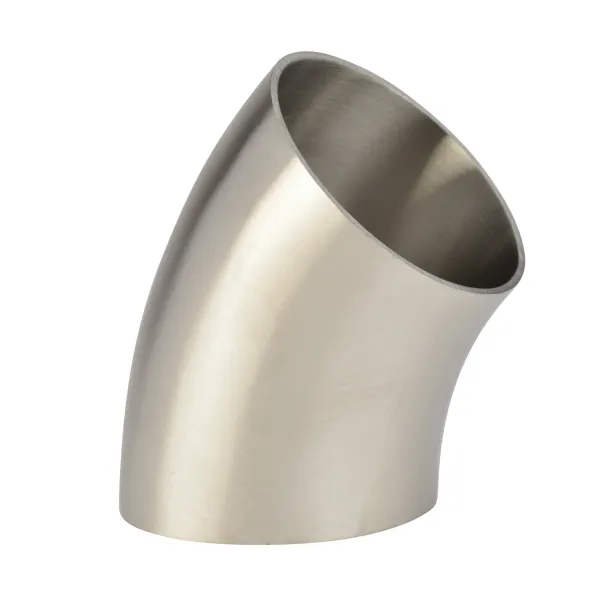

Sanitary Weld 45 Degree Short Elbows
Sanitary Weld 45 Degree Short Elbows
The product table below lists 304 and 316L stainless steel sanitary weld 45 degree short elbows, from 1/2" to 8". A dimension chart follows the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
Stainless steel sanitary weld 45 degree short elbows are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes.Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1/2 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $65.36 | | |||
| 3/4 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $65.36 | | |||
| 1 | 45 Degree Short Elbow | Weld | 304 Stainless Steel | $22.22 | | |||
| 1 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $34.44 | | |||
| 1 1/4 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $87.14 | | |||
| 1 1/2 | 45 Degree Short Elbow | Weld | 304 Stainless Steel | $22.22 | | |||
| 1 1/2 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $33.13 | | |||
| 2 | 45 Degree Short Elbow | Weld | 304 Stainless Steel | $25.28 | | |||
| 2 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $38.56 | | |||
| 2 1/2 | 45 Degree Short Elbow | Weld | 304 Stainless Steel | $36.84 | | |||
| 2 1/2 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $45.75 | | |||
| 3 | 45 Degree Short Elbow | Weld | 304 Stainless Steel | $41.29 | | |||
| 3 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $55.55 | | |||
| 4 | 45 Degree Short Elbow | Weld | 304 Stainless Steel | $71.89 | | |||
| 4 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $115.04 | | |||
| 6 | 45 Degree Short Elbow | Weld | 304 Stainless Steel | $337.69 | | |||
| 6 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $350.78 | | |||
| 8 | 45 Degree Short Elbow | Weld | 304 Stainless Steel | $512.27 | | |||
| 8 | 45 Degree Short Elbow | Weld | 316 Stainless Steel | $664.49 | |
Product Info
We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld 45 degree short elbows to meet your specifications. View our full line of stainless steel products.Dimensions

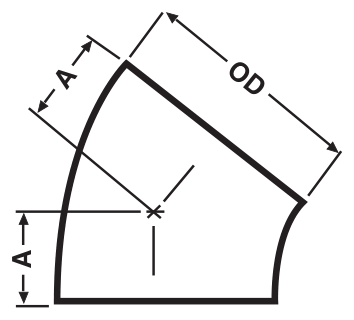

Dimensions in inches, from our sanitary weld data sheet. The column letters are the ones on the drawing.
| Tube OD | A | Nom. Wall |
|---|---|---|
| 1" | 0.625 | 0.065 |
| 1-1/4" | 0.781 | 0.065 |
| 1-1/2" | 0.937 | 0.065 |
| 2" | 1.250 | 0.065 |
| 2-1/2" | 1.562 | 0.065 |
| 3" | 1.875 | 0.065 |
| 4" | 2.500 | 0.083 |
| 6" | 3.750 | 0.109 |
| 8" | 5.000 | 0.109 |
The product table also lists 1/2" and 3/4" 45° short elbows, which are not on our data sheet; call us for their dimensions.
OD on the drawing is the tube size.
Standard Specifications
We offer stainless steel sanitary weld 45 degree short elbows in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld 45 degree short elbows. Specification charts and general dimensional illustrations aid in identifying products. Some dimensions in the Reference Catalog differ from the charts on this page, which follow our sanitary weld data sheet.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld 45° short elbows with weld ends.Frequently Asked Questions
What sizes of sanitary weld 45 degree short elbows do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary weld 45 degree short elbows, from 1/2" to 8". Some sizes come in 316L only (1/2", 3/4", 1-1/4"). For other sizes or alloys, call (800) 282-9694 or send us a message.
Do you have dimensions for the 1/2" and 3/4" 45° short elbows?
Those two sizes are in the product table but not on our data sheet; call (800) 282-9694 or send us a message for their dimensions.
How short is a 45° short elbow?
On our data sheet the A dimension of a 2" 45° short elbow is 1.250", against 2.312" for a 2" weld 45° elbow. See our sanitary weld 45 degree elbows.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
