Stainless Steel Raised Face Weld Neck Flanges
Stainless Steel Raised Face Weld Neck Flanges
The product table below lists 304 and 316 stainless steel raised face weld neck flanges from 1/2" to 24" in Class 150 and Class 300; ask us about other sizes and classes. Dimension and drilling charts follow the table.
Get a price: the product table below lists prices; if an item shows Quote, call (800) 282-9694 or send us a message.

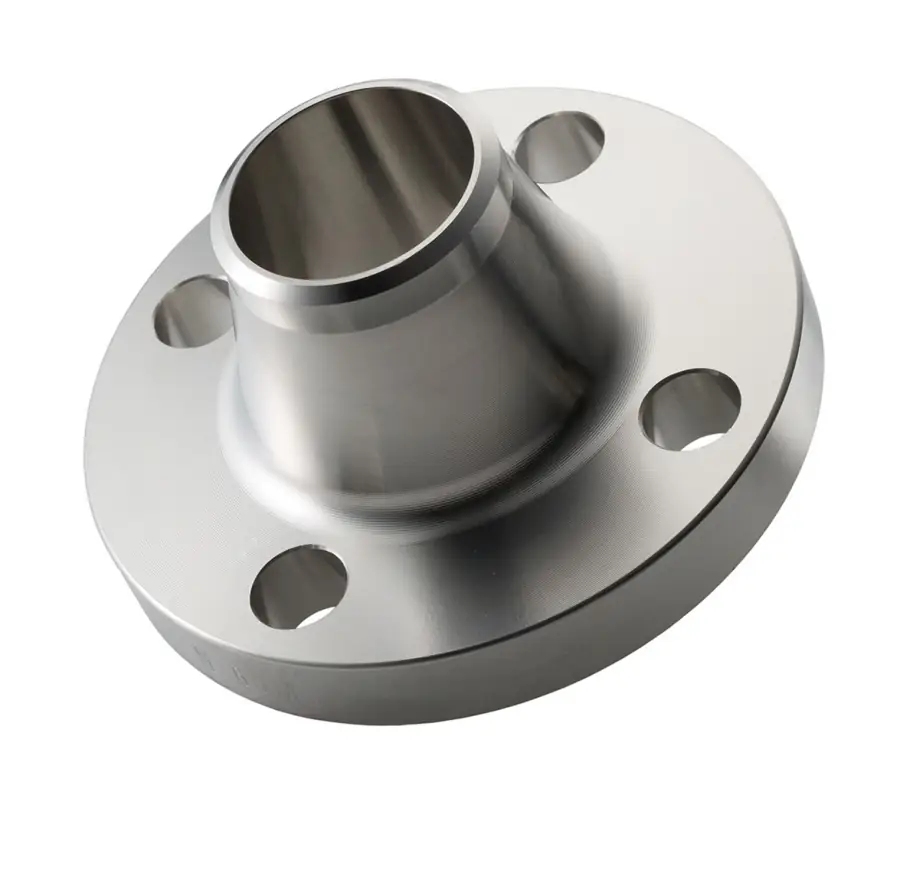

We carry a full line of stainless steel raised face weld neck flanges, which are welded to the pipe at the end of a tapered hub. Our flange experts can help identify which flange is right for your application.Sizes: 1/2" - 36" +
Bores: S/5s - XXH
Pressures: 150 - 300 - 600
Alloys: Stainless - Carbon - Aluminum
Filter Products
Size | Product Type | Pressure | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1/2 | Raised Face Weld Neck | 150# | 304 Stainless Steel | $52.99 | | ||
| 1/2 | Raised Face Weld Neck | 150# | 316 Stainless Steel | $80.01 | | ||
| 1/2 | Raised Face Weld Neck | 300# | 304 Stainless Steel | $89.46 | | ||
| 1/2 | Raised Face Weld Neck | 300# | 316 Stainless Steel | $124.81 | | ||
| 3/4 | Raised Face Weld Neck | 150# | 304 Stainless Steel | $58.87 | | ||
| 3/4 | Raised Face Weld Neck | 150# | 316 Stainless Steel | $85.99 | | ||
| 3/4 | Raised Face Weld Neck | 300# | 304 Stainless Steel | $89.46 | | ||
| 3/4 | Raised Face Weld Neck | 300# | 316 Stainless Steel | $124.81 | | ||
| 1 | Raised Face Weld Neck | 150# | 304 Stainless Steel | $68.24 | | ||
| 1 | Raised Face Weld Neck | 300# | 304 Stainless Steel | $89.46 | | ||
| 1 | Raised Face Weld Neck | 150# | 316 Stainless Steel | $98.91 | | ||
| 1 | Raised Face Weld Neck | 300# | 316 Stainless Steel | $124.81 | | ||
| 1 1/4 | Raised Face Weld Neck | 150# | 304 Stainless Steel | $97.72 | | ||
| 1 1/4 | Raised Face Weld Neck | 150# | 316 Stainless Steel | $137.73 | | ||
| 1 1/4 | Raised Face Weld Neck | 300# | 304 Stainless Steel | $138.81 | | ||
| 1 1/4 | Raised Face Weld Neck | 300# | 316 Stainless Steel | $187.16 | | ||
| 1 1/2 | Raised Face Weld Neck | 150# | 304 Stainless Steel | $97.72 | | ||
| 1 1/2 | Raised Face Weld Neck | 150# | 316 Stainless Steel | $137.73 | | ||
| 1 1/2 | Raised Face Weld Neck | 300# | 304 Stainless Steel | $138.81 | | ||
| 1 1/2 | Raised Face Weld Neck | 300# | 316 Stainless Steel | $187.16 | | ||
| 2 | Raised Face Weld Neck | 150# | 304 Stainless Steel | $108.33 | | ||
| 2 | Raised Face Weld Neck | 300# | 304 Stainless Steel | $143.61 | | ||
| 2 | Raised Face Weld Neck | 150# | 316 Stainless Steel | $149.53 | | ||
| 2 | Raised Face Weld Neck | 300# | 316 Stainless Steel | $202.47 | | ||
| 2 1/2 | Raised Face Weld Neck | 150# | 304 Stainless Steel | $163.65 | |
Product Info
We have an extensive inventory of stainless steel raised face Weld Neck flanges to compliment our pipe products. Most of our high quality, flanges and gasket kits are ready to ship upon request. Speak to one of our flange specialists to discuss which flange products are available to meet your specifications. View an overview of our stainless steel product offerings.Dimensions
Standard Specifications
ANSI flanges meet ASTM-ASME A182 material specification and ASA B16.5 dimensional specification. View the standard specifications.Stainless Steel Grades
Learn about our stainless steel inventory, functionality and application of our various grades of stainless steel.Reference Catalog
We engineered our product Reference Catalog for you to easily identify all of our products. The catalog includes specification charts and general dimensional illustrations to help you identify available and needed products.Additional Info
Stainless steel raised face weld neck flanges are welded to the pipe at the end of a tapered hub. The raised face is engineered to concentrate more pressure to a smaller area on the flange, which provides an increased containment capability at higher pressures. The weld neck flange is also engineered to match the inside diameter (ID) of the joining pipe. This flange is ideal for high pressure, high heat and sub zero temperature applications.Frequently Asked Questions
What sizes of raised face weld neck flanges do you carry?
The product table on this page lists 304 and 316 stainless steel raised face weld neck flanges from 1/2" to 24" in Class 150 and Class 300. For other sizes, classes or alloys, call (800) 282-9694 or send us a message.
What are the dimensions of a 4" Class 150 weld neck flange?
A 4" Class 150 raised face weld neck flange is 9.00" OD, 0.94" thick and 3.00" long through the hub (both including the 1/16" raised face), with eight 5/8" bolts on a 7.50" bolt circle in 0.75" holes. It weighs about 16.5 lb.
What bore do your weld neck flanges have?
The bore B1 in our charts is the standard bore, which matches the inside diameter of standard weight pipe: 4.03" for a 4" flange. Weld neck flanges are made to match the inside diameter of the pipe they are welded to, so ask us about other bores.
How do Class 150 and Class 300 weld neck flanges differ?
A Class 300 weld neck flange is larger and heavier. At 4", Class 150 is 9.00" OD, 0.94" thick, with eight 5/8" bolts on a 7.50" bolt circle, and weighs about 16.5 lb; Class 300 is 10.00" OD, 1.25" thick, with eight 3/4" bolts on a 7.88" bolt circle, and weighs about 25 lb.
What specifications do your weld neck flanges meet?
Our ANSI flanges meet the ASTM-ASME A182 material specification and the ASA B16.5 dimensional specification.
How do I get a price?
Prices are listed in the product table on this page. If an item shows Quote, or you need a size or class that is not listed, call (800) 282-9694 or send us a message.
