Sanitary Weld 180 Degree U Bends
Sanitary Weld 180 Degree U Bends
The product table below lists 304 and 316L stainless steel sanitary weld 180 degree U-bends, from 1" to 6". A dimension chart follows the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.

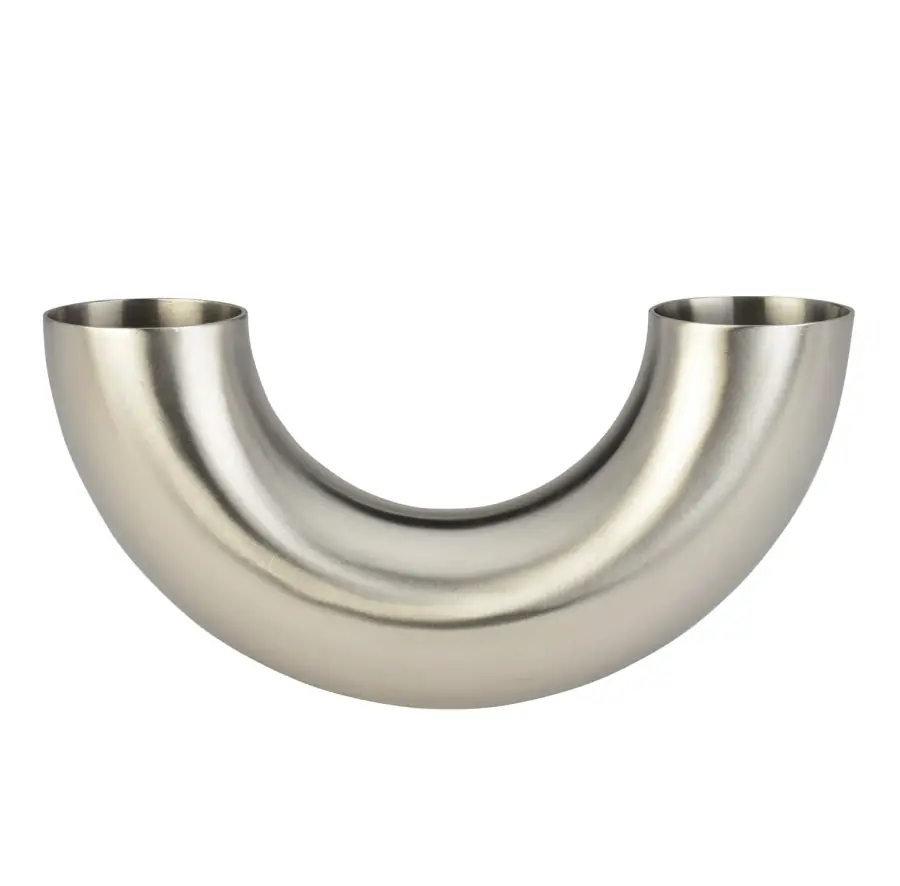

Stainless steel sanitary weld 180 degree u bends are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes. Sanitary weld fittings meet all 3A requirements.Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 180 Degree U-Bend | Weld | 304 Stainless Steel | $163.40 | | |||
| 1 | 180 Degree U-Bend | Weld | 316 Stainless Steel | $181.93 | | |||
| 1 1/2 | 180 Degree U-Bend | Weld | 304 Stainless Steel | $206.98 | | |||
| 1 1/2 | 180 Degree U-Bend | Weld | 316 Stainless Steel | $229.86 | | |||
| 2 | 180 Degree U-Bend | Weld | 304 Stainless Steel | $213.52 | | |||
| 2 | 180 Degree U-Bend | Weld | 316 Stainless Steel | $239.66 | | |||
| 2 1/2 | 180 Degree U-Bend | Weld | 304 Stainless Steel | $283.21 | | |||
| 2 1/2 | 180 Degree U-Bend | Weld | 316 Stainless Steel | $315.92 | | |||
| 3 | 180 Degree U-Bend | Weld | 304 Stainless Steel | $326.80 | | |||
| 3 | 180 Degree U-Bend | Weld | 316 Stainless Steel | $381.26 | | |||
| 4 | 180 Degree U-Bend | Weld | 304 Stainless Steel | $381.26 | | |||
| 4 | 180 Degree U-Bend | Weld | 316 Stainless Steel | $446.64 | | |||
| 6 | 180 Degree U-Bend | Weld | 304 Stainless Steel | $1,313.73 | | |||
| 6 | 180 Degree U-Bend | Weld | 316 Stainless Steel | $1,633.99 | |
Product Info
We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld 180 degree u bends to meet your specifications. View our full line of stainless steel products.Dimensions
Dimensions in inches, from our sanitary weld data sheet. The column letters are the ones on the drawing.
| Tube OD | A | B | C | R | Nom. Wall |
|---|---|---|---|---|---|
| 1/2" | 1.500 | 1.000 | 0.500 | 0.750 | 0.065 |
| 3/4" | 2.250 | 1.500 | 0.750 | 1.125 | 0.065 |
| 1" | 3.000 | 2.000 | 1.000 | 1.500 | 0.065 |
| 1-1/4" | 3.750 | 2.500 | 1.250 | 1.875 | 0.065 |
| 1-1/2" | 4.500 | 3.000 | 1.500 | 2.250 | 0.065 |
| 2" | 6.000 | 4.000 | 2.000 | 3.000 | 0.065 |
| 2-1/2" | 7.500 | 5.000 | 2.500 | 3.750 | 0.065 |
| 3" | 9.000 | 6.000 | 3.000 | 4.500 | 0.065 |
| 4" | 12.000 | 8.000 | 4.000 | 6.000 | 0.083 |
| 6" | 18.000 | 12.000 | 6.000 | 9.000 | 0.109 |
Swipe the chart sideways to see every column.
Our data sheet also lists 1/2", 3/4" and 1-1/4" 180° U-bends, which are not in the product table; call us for availability.
C is not marked on the drawing; on every row it equals the tube size.
Standard Specifications
We offer stainless steel sanitary weld 180 degree u bends in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld 180 degree u bends. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld 180° U-bends with weld ends.Frequently Asked Questions
What sizes of sanitary weld 180 degree U-bends do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary weld 180 degree U-bends, from 1" to 6". For other sizes or alloys, call (800) 282-9694 or send us a message.
What is the center-to-center distance of a U-bend?
It is A in the chart, twice the centerline radius R: a 2" U-bend measures A 6.000" with R 3.000".
What is the wall thickness?
Our data sheet gives a nominal wall (the wall column in the chart) of 0.065" from 1" to 3", 0.083" at 4" and 0.109" at 6".
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
