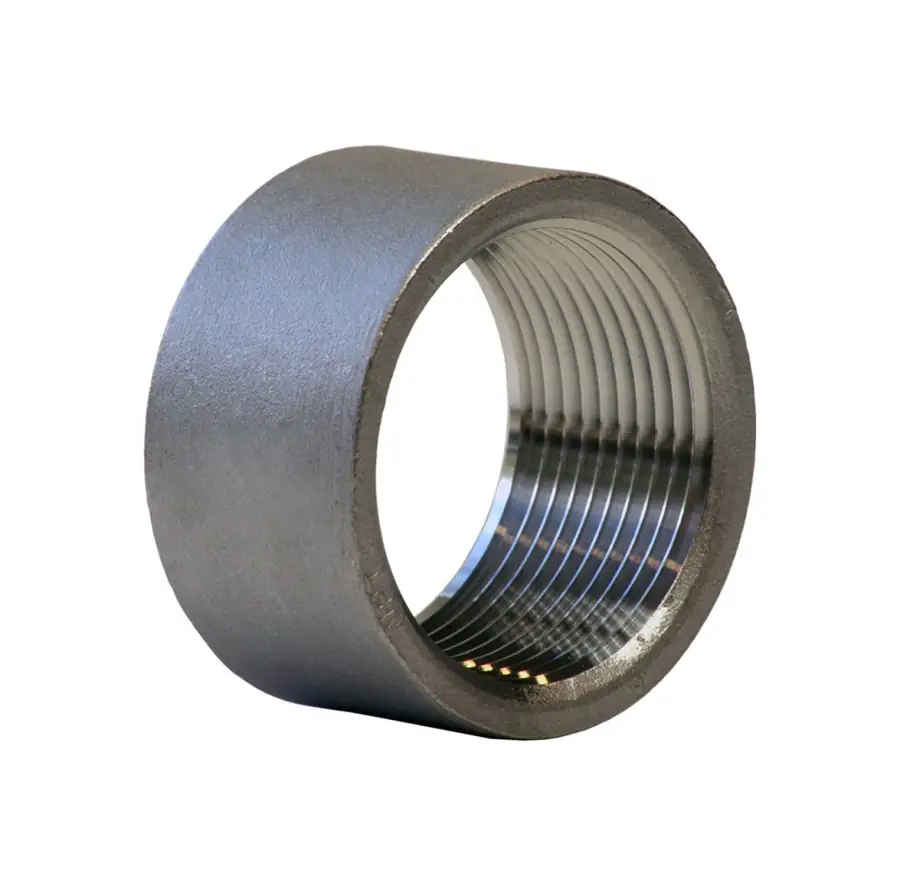

150 lb Stainless Steel Cast Half Couplings
150 lb Stainless Steel Cast Half Couplings
The product table below lists 304 and 316 stainless steel 150 lb half couplings, threaded (NPT) from 1/8" to 4". A dimension chart follows the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
Our high quality 150 lb stainless steel cast half couplings are corrosion resistant and are available in multiple sizes to fit your stainless pipe needs.Pressure: Class 150
End Connections: Threaded - Socket Weld
Alloys: Aluminum - Carbon - Stainless
Filter Products
Size | Product Type | Reducing | Pressure | End Type | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1/8 | Half Coupling | 150# | Threaded | 304 Stainless | $1.62 | | |||
| 1/8 | Half Coupling | 150# | Threaded | 316 Stainless | $1.84 | | |||
| 1/4 | Half Coupling | 150# | Threaded | 304 Stainless | $1.80 | | |||
| 1/4 | Half Coupling | 150# | Threaded | 316 Stainless | $1.84 | | |||
| 3/8 | Half Coupling | 150# | Threaded | 316 Stainless | $2.13 | | |||
| 3/8 | Half Coupling | 150# | Threaded | 304 Stainless | $1.95 | | |||
| 1/2 | Half Coupling | 150# | Threaded | 316 Stainless | $3.11 | | |||
| 1/2 | Half Coupling | 150# | Threaded | 304 Stainless | $2.72 | | |||
| 3/4 | Half Coupling | 150# | Threaded | 304 Stainless | $3.59 | | |||
| 3/4 | Half Coupling | 150# | Threaded | 316 Stainless | $3.97 | | |||
| 1 | Half Coupling | 150# | Threaded | 304 Stainless | $4.62 | | |||
| 1 | Half Coupling | 150# | Threaded | 316 Stainless | $6.00 | | |||
| 1 1/4 | Half Coupling | 150# | Threaded | 304 Stainless | $7.54 | | |||
| 1 1/4 | Half Coupling | 150# | Threaded | 316 Stainless | $9.07 | | |||
| 1 1/2 | Half Coupling | 150# | Threaded | 304 Stainless | $9.68 | | |||
| 1 1/2 | Half Coupling | 150# | Threaded | 316 Stainless | $12.10 | | |||
| 2 | Half Coupling | 150# | Threaded | 304 Stainless | $13.24 | | |||
| 2 | Half Coupling | 150# | Threaded | 316 Stainless | $15.84 | | |||
| 2 1/2 | Half Coupling | 150# | Threaded | 304 Stainless | $32.13 | | |||
| 2 1/2 | Half Coupling | 150# | Threaded | 316 Stainless | $37.82 | | |||
| 3 | Half Coupling | 150# | Threaded | 304 Stainless | $44.17 | | |||
| 3 | Half Coupling | 150# | Threaded | 316 Stainless | $51.51 | | |||
| 4 | Half Coupling | 150# | Threaded | 304 Stainless | $74.01 | | |||
| 4 | Half Coupling | 150# | Threaded | 316 Stainless | $84.78 | |
Product Info
Our 304 and 316 150 lb stainless steel cast couplings are available in a variety of sizes to fit any piping configuration. We supply 150 lb half cast couplings and 150 lb full cast couplings. Our inventory includes: threaded full couplings, threaded half couplings, threaded reducing couplings, socket weld full couplings, socket weld half couplings and socket weld reducing couplings. We can accommodate any need with our wide-ranging and hard to find sizes. Good corrosion resistance for many applications for many industries. View our stainless steel products line card.Dimensions

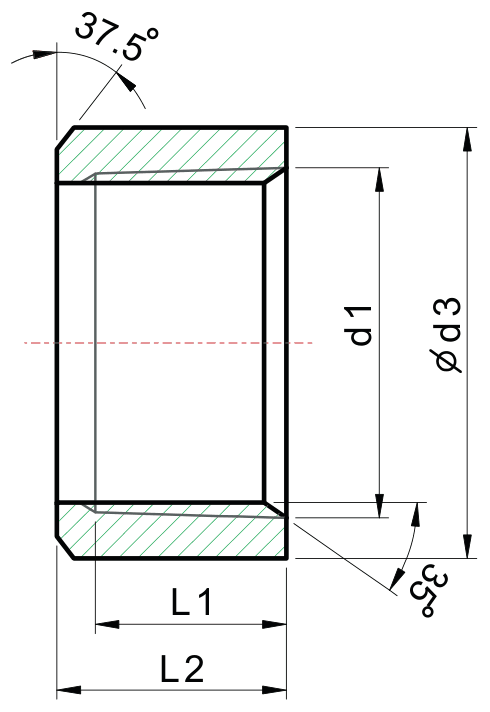

Dimensions in inches, from our data sheet. The column letters are the ones on the drawing.
L1, shown on the drawing, is not listed on our data sheet; call us for it.
| Size | d1 | d3 | L2 |
|---|---|---|---|
| 1/8" | 1/8" | 0.56 | 0.43 |
| 1/4" | 1/4" | 0.73 | 0.51 |
| 3/8" | 3/8" | 0.85 | 0.55 |
| 1/2" | 1/2" | 1.04 | 0.71 |
| 3/4" | 3/4" | 1.26 | 0.79 |
| 1" | 1" | 1.56 | 0.83 |
| 1-1/4" | 1-1/4" | 1.91 | 0.94 |
| 1-1/2" | 1-1/2" | 2.15 | 0.94 |
| 2" | 2" | 2.62 | 1.10 |
| 2-1/2" | 2-1/2" | 3.31 | 1.30 |
| 3" | 3" | 3.94 | 1.42 |
| 4" | 4" | 5.08 | 1.65 |
Standard Specifications
Couplings generally conform to ASA B16.3 and pipe threads conform to ASA B2.1 standard for manufacturing. View the standard specifications chart.Stainless Steel Grades
SS couplings available from Shaw Stainless. View the various grades of stainless steel.Reference Catalog
View thousands of stainless steel pipe and tubing products and various services Shaw offers. This Reference Catalog identifies stainless steel pipe couplings and other pipe fittings through specification charts and illustrations.Additional Info
A coupling connects two pieces of pipe together. 150 lb cast couplings can come threaded or socket weld. If the two pipes being connected are not the same size, one would use a cast reducing coupling. Couplings are one of the most common pipe fittings and available in a variety of different alloys.Frequently Asked Questions
What sizes of 150 lb half couplings do you carry?
The product table on this page lists 304 and 316 stainless steel 150 lb half couplings: threaded (NPT) from 1/8" to 4". For other sizes or alloys, call (800) 282-9694 or send us a message.
How long is a threaded half coupling?
Column L2 in the chart is the overall length. A 1" half coupling measures 0.83" and a 2" one measures 1.10".
What do d1 and d3 mean in the half coupling chart?
Column d1 is the NPT thread size and column d3 the outside diameter. A 1" half coupling has a 1.56" outside diameter. See also our full couplings.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
