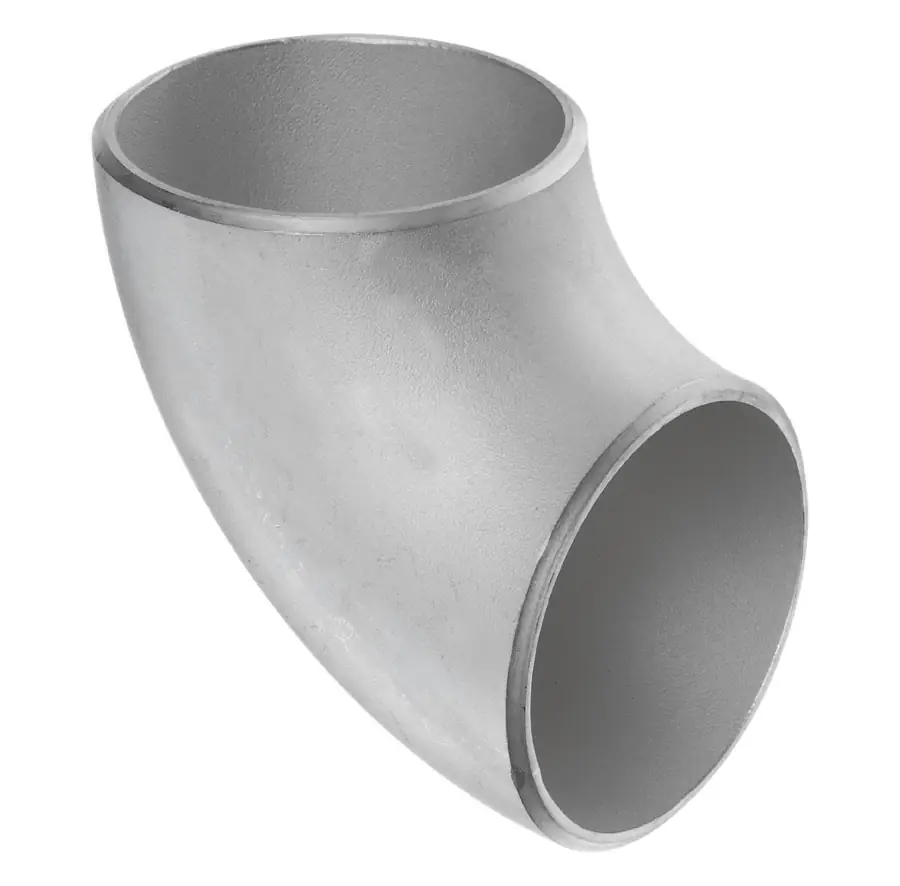

Stainless Steel Butt Weld Short Radius 90 Elbows
Stainless Steel Butt Weld Short Radius 90 Elbows
The product table below lists 304 and 316 stainless steel short radius 90 degree butt weld elbows from 1" to 24" in Schedule 5S, 10S, 40S and 80S; ask us about other sizes and schedules. Dimension and weight charts follow the table.
Get a price: the product table below lists prices; if an item shows Quote, call (800) 282-9694 or send us a message.
From butt weld 45 degree stainless steel elbows and butt weld 90 degree elbows to short radius 90 degree elbows, we will facilitate your needs and get the product to you quickly. Our stainless steel pipe elbows are of high quality and offer a great resistance to corrosion.Schedules: S/5s - XXH
Alloys: Aluminum - Carbon - Nickel Alloys - Stainless
Filter Products
Size | Product Type | Reducing | Pressure | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 | Short Radius 90 | Sch 10s | 304 Stainless | $50.15 | | |||
| 1 | Short Radius 90 | Sch 10s | 316 Stainless | $68.36 | | |||
| 1 | Short Radius 90 | Sch 40s | 304 Stainless | $40.85 | | |||
| 1 | Short Radius 90 | Sch 40s | 316 Stainless | $57.26 | | |||
| 1 | Short Radius 90 | Sch 5s | 304 Stainless | | ||||
| 1 | Short Radius 90 | Sch 5s | 316 Stainless | | ||||
| 1 | Short Radius 90 | Sch 80s | 304 Stainless | | ||||
| 1 | Short Radius 90 | Sch 80s | 316 Stainless | | ||||
| 1 1/4 | Short Radius 90 | Sch 10s | 304 Stainless | $52.39 | | |||
| 1 1/4 | Short Radius 90 | Sch 10s | 316 Stainless | $68.82 | | |||
| 1 1/4 | Short Radius 90 | Sch 40s | 304 Stainless | $68.36 | | |||
| 1 1/4 | Short Radius 90 | Sch 40s | 316 Stainless | $92.79 | | |||
| 1 1/4 | Short Radius 90 | Sch 5s | 304 Stainless | | ||||
| 1 1/4 | Short Radius 90 | Sch 5s | 316 Stainless | | ||||
| 1 1/4 | Short Radius 90 | Sch 80s | 304 Stainless | | ||||
| 1 1/4 | Short Radius 90 | Sch 80s | 316 Stainless | | ||||
| 1 1/2 | Short Radius 90 | Sch 10s | 304 Stainless | $53.72 | | |||
| 1 1/2 | Short Radius 90 | Sch 10s | 316 Stainless | $71.04 | | |||
| 1 1/2 | Short Radius 90 | Sch 40s | 304 Stainless | $47.07 | | |||
| 1 1/2 | Short Radius 90 | Sch 40s | 316 Stainless | $64.35 | | |||
| 1 1/2 | Short Radius 90 | Sch 5s | 304 Stainless | | ||||
| 1 1/2 | Short Radius 90 | Sch 5s | 316 Stainless | | ||||
| 1 1/2 | Short Radius 90 | Sch 80s | 304 Stainless | | ||||
| 1 1/2 | Short Radius 90 | Sch 80s | 316 Stainless | | ||||
| 2 | Short Radius 90 | Sch 10s | 304 Stainless | $47.07 | |
Product Info
Our stainless steel short radius 90 degree butt weld elbows come in a variety of options to meet almost any stainless steel piping configuration. Our high quality short radius 90 degree SS butt welding elbows conform to ASTM A403 manufacturing specifications. We inventory a variety of seamless butt weld elbows and welded butt weld elbows. View an overview of our stainless steel product offerings.Dimensions
Pipe Sizes & Weights
There are many butt weld elbow sizes and schedules to choose from. Our pipe sizes and weights chart will help you search our inventory on available in-stock product specifications.Standard Specifications
Stainless steel short radius 90 Degree butt weld elbows generally conform to ASTM A403 with dimensional tolerances in accordance with MSS SP-43 for schedules 5s and 10s, and with ANSI B16.9 for schedules heavier than 10s. View the standard specifications chart.Stainless Steel Grades
View stainless steel grades of short radius 90 degree butt weld elbows available from Shaw Stainless & Alloy. Review the functionality and application of various grades of stainless steel.Reference Catalog
We designed a resourceful tool to help identify the many different products and services we offer. This Reference Catalog will identify stainless steel butt weld elbows and other pipe fittings through specification charts and illustrations.Theoretical Bursting Pressures
Here is a chart to review theoretical bursting pressures for various stainless steel pipe.Additional Info
The stainless steel short radius 90 degree butt weld elbow is a pipe fitting that is attached to two pieces of pipe to allow a change in direction. Stainless steel butt weld elbows can come in various degrees of angles and schedules. The most common angles available are 45 degree elbows and 90 degree elbows. 90 degree elbows are available in long radius and short radius. The schedule corresponds to the wall thickness of the pipe. The function of a pipe is to carry gasses or fluids under pressure. Therefore, the ID, or internal diameter of the butt weld elbow is a major dimension of the pipe. A pipe's outside diameter (OD) remains comparatively constant for all pipe sizes. It is the inside diameter's (ID) bore size that is reduced as the schedule or wall thickness increases.Frequently Asked Questions
What sizes of short radius 90 degree elbows do you carry?
The product table on this page lists 304 and 316 stainless steel short radius 90° elbows from 1" to 24" in Schedule 5S, 10S, 40S and 80S. For other sizes, schedules or alloys, call (800) 282-9694 or send us a message.
What is the center-to-face dimension of a short radius elbow?
It is the distance from the center of the elbow to the face of each welding end, D in the charts on this page. For a short radius elbow it equals the nominal size: a 4" elbow measures 4" and a 6" measures 6".
When is a short radius elbow used instead of a long radius elbow?
When space is tight. A short radius 90° elbow measures the same as its nominal size from center to face; a long radius elbow measures 1.5 times its nominal size (from 1" up). A 4" short radius elbow measures 4" center to face; a 4" long radius elbow measures 6". See our 90 degree long radius elbows.
How much does a short radius 90 degree elbow weigh?
It depends on the size and schedule. The charts on this page list approximate weights: a 4" short radius elbow weighs about 3.79 lb in Schedule 10S and 6.88 lb in Schedule 40S.
Do you carry Schedule 160 and XX Strong short radius elbows?
They are not in our online product table, which lists Schedule 5S, 10S, 40S and 80S; call (800) 282-9694 or send us a message to ask about availability. The second chart on this page lists their dimensions from our data sheet.
What standards do your butt weld elbows meet?
Our butt weld elbows generally conform to ASTM A403, with dimensional tolerances in accordance with MSS SP-43 for Schedule 5S and 10S and with ANSI B16.9 for schedules heavier than 10S.
How do I get a price?
Prices are listed in the product table on this page. If an item shows Quote, or you need a size or schedule that is not listed, call (800) 282-9694 or send us a message.
