Stainless Steel Raised Face Threaded Flanges
Stainless Steel Raised Face Threaded Flanges
The product table below lists 304 and 316 stainless steel raised face threaded flanges from 1/2" to 4" in Class 150 and Class 300; ask us about other sizes and classes. Dimension and drilling charts follow the table.
Get a price: the product table below lists prices; if an item shows Quote, call (800) 282-9694 or send us a message.

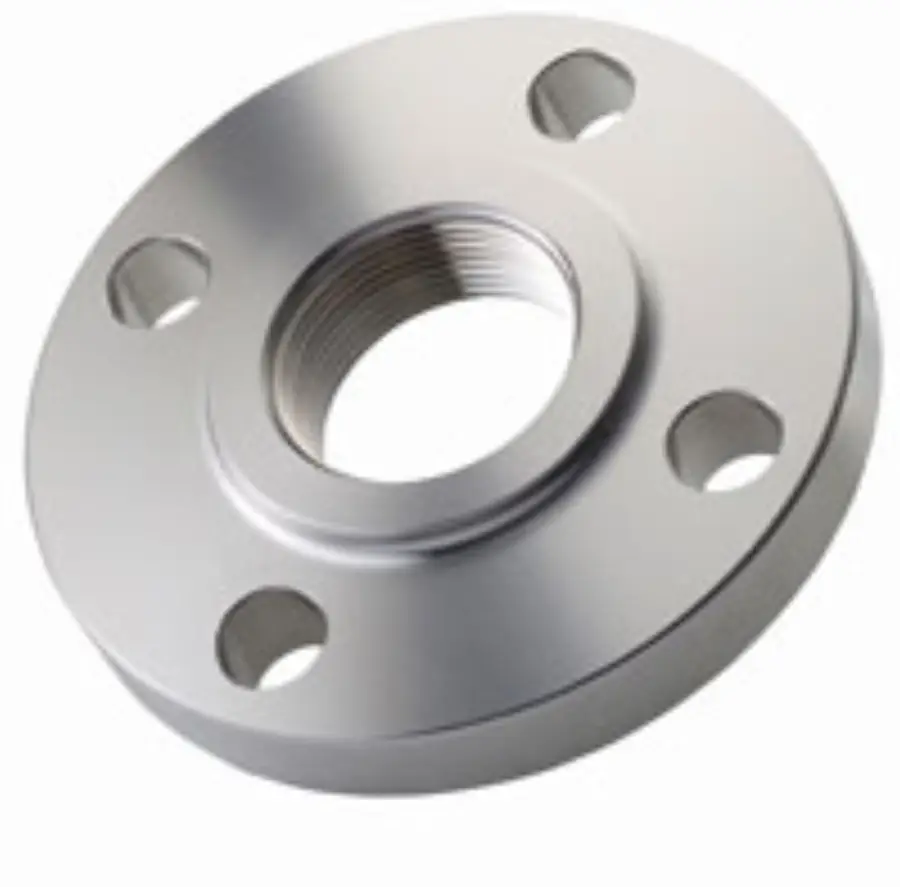

Included in our inventory is a full line of stainless steel raised face threaded flanges, which screw onto threaded pipe, so they can be added and removed without welding.Sizes: 1/2" - 36" +
Bores: S/5s - XXH
Pressures: 150 - 300 - 600
Alloys: Stainless - Carbon - Aluminum
Filter Products
Size | Product Type | Pressure | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|
| 1/2 | Raised Face Threaded | 150# | 304 Stainless Steel | $52.99 | | ||
| 1/2 | Raised Face Threaded | 150# | 316 Stainless Steel | $74.15 | | ||
| 1/2 | Raised Face Threaded | 300# | 304 Stainless Steel | $83.60 | | ||
| 1/2 | Raised Face Threaded | 300# | 316 Stainless Steel | $114.16 | | ||
| 3/4 | Raised Face Threaded | 150# | 304 Stainless Steel | $58.87 | | ||
| 3/4 | Raised Face Threaded | 300# | 304 Stainless Steel | $83.60 | | ||
| 3/4 | Raised Face Threaded | 150# | 316 Stainless Steel | $85.99 | | ||
| 3/4 | Raised Face Threaded | 300# | 316 Stainless Steel | $114.16 | | ||
| 1 | Raised Face Threaded | 150# | 304 Stainless Steel | $65.95 | | ||
| 1 | Raised Face Threaded | 300# | 304 Stainless Steel | $83.60 | | ||
| 1 | Raised Face Threaded | 150# | 316 Stainless Steel | $91.78 | | ||
| 1 | Raised Face Threaded | 300# | 316 Stainless Steel | $114.16 | | ||
| 1 1/4 | Raised Face Threaded | 150# | 304 Stainless Steel | $83.60 | | ||
| 1 1/4 | Raised Face Threaded | 150# | 316 Stainless Steel | $122.38 | | ||
| 1 1/4 | Raised Face Threaded | 300# | 304 Stainless Steel | $128.28 | | ||
| 1 1/4 | Raised Face Threaded | 300# | 316 Stainless Steel | $187.16 | | ||
| 1 1/2 | Raised Face Threaded | 150# | 304 Stainless Steel | $83.60 | | ||
| 1 1/2 | Raised Face Threaded | 150# | 316 Stainless Steel | $122.38 | | ||
| 1 1/2 | Raised Face Threaded | 300# | 304 Stainless Steel | $128.28 | | ||
| 1 1/2 | Raised Face Threaded | 300# | 316 Stainless Steel | $187.16 | | ||
| 2 | Raised Face Threaded | 150# | 304 Stainless Steel | $109.52 | | ||
| 2 | Raised Face Threaded | 150# | 316 Stainless Steel | $151.85 | | ||
| 2 | Raised Face Threaded | 300# | 304 Stainless Steel | $155.41 | | ||
| 2 | Raised Face Threaded | 300# | 316 Stainless Steel | $207.15 | | ||
| 2 1/2 | Raised Face Threaded | 150# | 304 Stainless Steel | $153.01 | |
Product Info
We have an extensive inventory of stainless steel raised face threaded flanges to compliment our pipe products. Most of our high quality, flanges and gasket kits are ready to ship upon request. Speak to one of our flange specialists to discuss which flange products are available to meet your specifications. View an overview of our stainless steel product offerings.Dimensions
Standard Specifications
ANSI flanges meet ASTM-ASME A182 material specification and ASA B16.5 dimensional specification. View the standard specifications.Stainless Steel Grades
Learn about our stainless steel inventory, functionality and application of our various grades of stainless steel.Reference Catalog
We engineered our product Reference Catalog for you to easily identify all of our products. The catalog includes specification charts and general dimensional illustrations to help you identify available and needed products.Additional Info
Stainless steel raised face threaded flanges screw onto threaded pipe. One of the main advantages of using a threaded flange is that it can be installed and removed without welding. Threaded flanges aren't used with pipes with a thin wall thickness because of the threads needed to connect the pieces.Frequently Asked Questions
What sizes of raised face threaded flanges do you carry?
The product table on this page lists 304 and 316 stainless steel raised face threaded flanges from 1/2" to 4" in Class 150 and Class 300. For other sizes, classes or alloys, call (800) 282-9694 or send us a message.
What are the dimensions of a 2" Class 150 threaded flange?
A 2" Class 150 raised face threaded flange is 6.00" OD, 0.75" thick and 1.00" long through the hub (both including the 1/16" raised face), with a minimum thread length of 1.00" and four 5/8" bolts on a 4.75" bolt circle. It weighs about 5.25 lb.
Do threaded flanges have a counterbore?
Class 150 threaded flanges need no counterbore. Class 300 threaded flanges have one; the chart lists its minimum diameter C, for example 2.50" on a 2" flange.
Are threaded flanges used on thin-wall pipe?
Threaded flanges aren't used with pipes with a thin wall thickness, because of the threads needed to connect them.
What specifications do your threaded flanges meet?
Our ANSI flanges meet the ASTM-ASME A182 material specification and the ASA B16.5 dimensional specification.
How do I get a price?
Prices are listed in the product table on this page. If an item shows Quote, or you need a size or class that is not listed, call (800) 282-9694 or send us a message.
