Sanitary Clamp Reducing Adapters
Sanitary Clamp Reducing Adapters

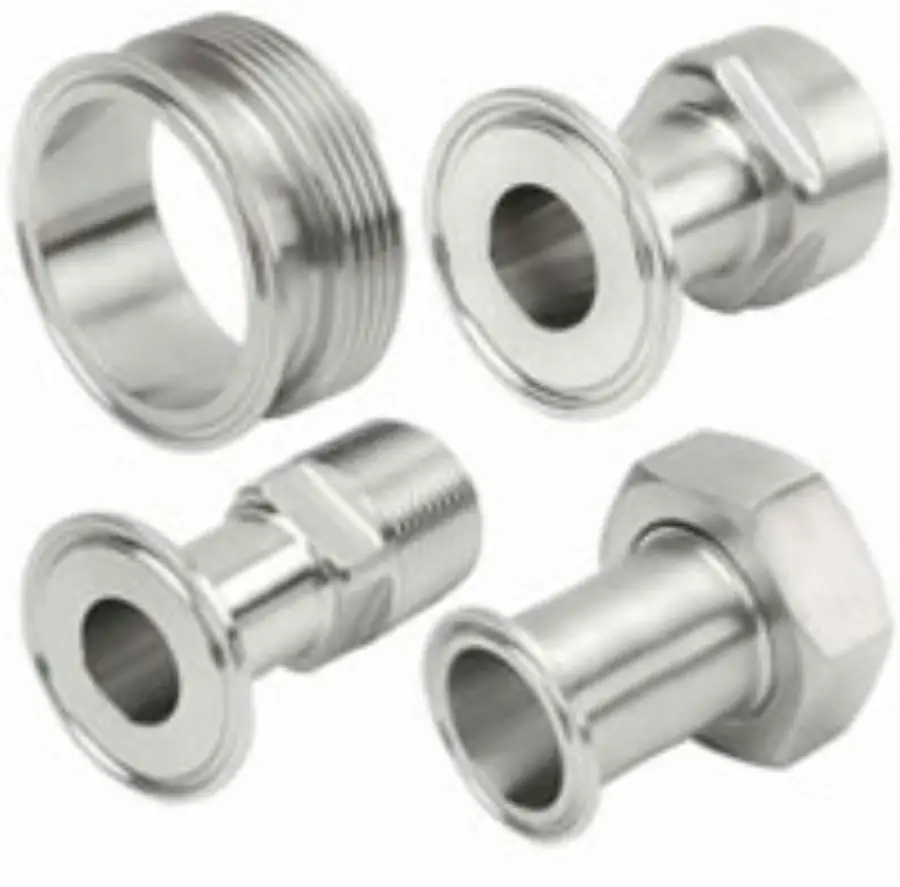

The product table below lists 316L stainless steel sanitary clamp reducing adapters with clamp × male NPT and clamp × female NPT ends, in 18 size combinations, from 3/4" × 1/2" to 6" × 4". Dimension charts follow the table.
Get a price: the product table below lists prices; for a size or grade that is not listed, call (800) 282-9694 or send us a message.
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for clamp fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Sanitary clamp fittings meet all 3A requirements.End Connections: Clamp x Male NPT - Clamp x Female NPT
Grades: 316L
Filter Products
Tube OD | Product Type | End Type | Alt Size | Material | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 3/4 | Reducing Adapter | Clamp x Female NPT | 1/2 | 316 Stainless Steel | $79.54 | | ||
| 3/4 | Reducing Adapter | Clamp x Male NPT | 1/2 | 316 Stainless Steel | $108.94 | | ||
| 1 | Reducing Adapter | Clamp x Female NPT | 1/2 | 316 Stainless Steel | $107.39 | | ||
| 1 | Reducing Adapter | Clamp x Male NPT | 1/2 | 316 Stainless Steel | $95.48 | | ||
| 1 | Reducing Adapter | Clamp x Female NPT | 3/4 | 316 Stainless Steel | $110.98 | | ||
| 1 | Reducing Adapter | Clamp x Male NPT | 3/4 | 316 Stainless Steel | $99.06 | | ||
| 1 1/2 | Reducing Adapter | Clamp x Female NPT | 1 1/4 | 316 Stainless Steel | $158.73 | | ||
| 1 1/2 | Reducing Adapter | Clamp x Male NPT | 1 1/4 | 316 Stainless Steel | $95.07 | | ||
| 1 1/2 | Reducing Adapter | Clamp x Female NPT | 1/2 | 316 Stainless Steel | $107.39 | | ||
| 1 1/2 | Reducing Adapter | Clamp x Male NPT | 1/2 | 316 Stainless Steel | $95.48 | | ||
| 1 1/2 | Reducing Adapter | Clamp x Female NPT | 3/4 | 316 Stainless Steel | $110.99 | | ||
| 1 1/2 | Reducing Adapter | Clamp x Male NPT | 3/4 | 316 Stainless Steel | $99.06 | | ||
| 2 | Reducing Adapter | Clamp x Female NPT | 1 1/2 | 316 Stainless Steel | $146.08 | | ||
| 2 | Reducing Adapter | Clamp x Male NPT | 1 1/2 | 316 Stainless Steel | $88.24 | | ||
| 2 | Reducing Adapter | Clamp x Female NPT | 1 1/4 | 316 Stainless Steel | $193.91 | | ||
| 2 | Reducing Adapter | Clamp x Male NPT | 1 1/4 | 316 Stainless Steel | $156.00 | | ||
| 2 | Reducing Adapter | Clamp x Female NPT | 1 | 316 Stainless Steel | $159.09 | | ||
| 2 | Reducing Adapter | Clamp x Male NPT | 1 | 316 Stainless Steel | $98.69 | | ||
| 2 1/2 | Reducing Adapter | Clamp x Female NPT | 1 1/2 | 316 Stainless Steel | $171.04 | | ||
| 2 1/2 | Reducing Adapter | Clamp x Male NPT | 1 1/2 | 316 Stainless Steel | $130.72 | | ||
| 2 1/2 | Reducing Adapter | Clamp x Female NPT | 2 | 316 Stainless Steel | $184.11 | | ||
| 2 1/2 | Reducing Adapter | Clamp x Male NPT | 2 | 316 Stainless Steel | $177.45 | | ||
| 3 | Reducing Adapter | Clamp x Female NPT | 1 1/2 | 316 Stainless Steel | $223.32 | | ||
| 3 | Reducing Adapter | Clamp x Male NPT | 1 1/2 | 316 Stainless Steel | $163.40 | | ||
| 3 | Reducing Adapter | Clamp x Female NPT | 2 1/2 | 316 Stainless Steel | $234.20 | |
Product Info
We house a huge inventory of sanitary clamp fittings in 304 and 316L stainless steel. From adapters and elbows to clamps and ferrules, we have a complete inventory of stainless steel sanitary clamp reducing adapters to meet your specified needs. View our full line of stainless steel products.Dimensions
Dimensions in inches, from our sanitary clamp fitting data sheet. The columns use the letters on the drawing. Each chart uses its own drawing's letters.
Charts on this page: Clamp × Male NPT · Clamp × Female NPT
Clamp × Male NPT
| Tube OD | A |
|---|---|
| 3/4" × 1/2" | Call us for dimensions |
| 1" × 1/2" | 2.125 |
| 1" × 3/4" | 2.125 |
| 1-1/2" × 1/2" | 2.125 |
| 1-1/2" × 3/4" | 2.125 |
| 1-1/2" × 1-1/4" | 2.250 |
| 2" × 1" | 2.250 |
| 2" × 1-1/4" | 2.250 |
| 2" × 1-1/2" | 2.250 |
| 2-1/2" × 1-1/2" | 2.250 |
| 2-1/2" × 2" | 2.312 |
| 3" × 1-1/2" | 2.250 |
| 3" × 2" | 2.312 |
| 3" × 2-1/2" | 2.812 |
| 4" × 2" | 2.312 |
| 4" × 2-1/2" | 2.812 |
| 4" × 3" | 3.000 |
| 6" × 4" | 3.062 |
Sanitary Clamp end dimension listed first.
Clamp × Female NPT
| Tube OD | A |
|---|---|
| 3/4" × 1/2" | Call us for dimensions |
| 1" × 1/2" | 1.625 |
| 1" × 3/4" | 1.625 |
| 1-1/2" × 1/2" | 1.625 |
| 1-1/2" × 3/4" | 1.625 |
| 1-1/2" × 1-1/4" | 2.560 |
| 2" × 1" | 1.625 |
| 2" × 1-1/4" | 1.927 |
| 2" × 1-1/2" | 1.937 |
| 2-1/2" × 1-1/2" | 1.937 |
| 2-1/2" × 2" | 1.937 |
| 3" × 1-1/2" | 1.937 |
| 3" × 2" | 1.937 |
| 3" × 2-1/2" | 2.125 |
| 4" × 2" | 2.062 |
| 4" × 2-1/2" | 2.250 |
| 4" × 3" | 2.437 |
Sanitary Clamp end dimension listed first.
Standard Specifications
We offer stainless steel sanitary clamp reducing adapters in a variety of sizes and specifications.Stainless Steel Grades
Check out our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our SS products including our stainless steel sanitary clamp reducing adapters. Specification charts and general dimensional illustrations aid in identifying products. Some dimensions in the Reference Catalog differ from the charts on this page.Additional Info
Clamp Style Fittings are very popular because of the ease of assembly and breakdown of process lines and equipment. Shaw Stainless offers Clamp Fittings in 304 and 316 stainless steel. Gaskets for Clamp Fittings are available in several different materials, Buna-N, EPDM, Teflon®, Viton® and silicone. Lightweight and heavy-duty clamps complete the unions. Clamp Fittings meet all 3A requirements.Frequently Asked Questions
What sizes of sanitary clamp reducing adapters do you carry?
The product table on this page lists 316L stainless steel sanitary clamp reducing adapters with clamp × male NPT and clamp × female NPT ends, in 18 size combinations, from 3/4" × 1/2" to 6" × 4". For other sizes or grades, call (800) 282-9694 or send us a message.
Why does this page have two charts?
Our data sheet has a separate chart, with its own drawing, for each end connection of these reducing adapters. Each chart uses the letters on its own drawing.
Which end is listed first in the size?
The clamp end. Our data sheet says "Sanitary Clamp end dimension listed first": a 1-1/2" × 3/4" reducing adapter has a 1-1/2" clamp end and a 3/4" NPT end.
Do you have dimensions for the 3/4" × 1/2" reducing adapters?
Our data sheet does not give them; call (800) 282-9694 or send us a message for their dimensions.
How do I get a price?
Prices are listed in the product table on this page. For a size or grade that is not listed, call (800) 282-9694 or send us a message.
