Sanitary Weld 90 Degree Elbows
Sanitary Weld 90 Degree Elbows
The product table below lists 304 and 316L stainless steel sanitary weld 90 degree elbows with weld, weld × clamp, weld × bevel hex nut and weld × thread ends, from 1" to 4" (weld × clamp to 6"). Dimension charts follow the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
Stainless steel sanitary weld 90 degree elbows are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Shaw Stainless offers weld fittings in 304 and 316L stainless in a variety of sizes. Sanitary weld fittings meet all 3A requirements.Sizes: 1/2" - 8"
Grades: 304 - 316L
Thicknesses: 1/2" - 3": .065 - 4": .083 - 6" - 8": .109
Filter Products
Tube OD | Product Type | End Type | Alt Size | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 90 Degree Elbow | Weld | 316 Stainless Steel | $19.18 | | |||
| 1 | 90 Degree Elbow | Weld x Bevel | 304 Stainless Steel | $75.81 | | |||
| 1 | 90 Degree Elbow | Weld x Bevel | 304 Stainless Steel | $110.12 | | |||
| 1 | 90 Degree Elbow | Weld x Clamp | 304 Stainless Steel | $33.26 | | |||
| 1 | 90 Degree Elbow | Weld x Clamp | 316 Stainless Steel | $45.20 | | |||
| 1 | 90 Degree Elbow | Weld x Thread | 304 Stainless Steel | $69.73 | | |||
| 1 | 90 Degree Elbow | Weld x Thread | 316 Stainless Steel | $77.45 | | |||
| 1 | 90 Degree Elbow | Weld | 304 Stainless Steel | $14.94 | | |||
| 1 1/2 | 90 Degree Elbow | Weld x Bevel | 304 Stainless Steel | $74.51 | | |||
| 1 1/2 | 90 Degree Elbow | Weld x Bevel | 316 Stainless Steel | $114.19 | | |||
| 1 1/2 | 90 Degree Elbow | Weld x Clamp | 304 Stainless Steel | $33.26 | | |||
| 1 1/2 | 90 Degree Elbow | Weld x Clamp | 316 Stainless Steel | $45.29 | | |||
| 1 1/2 | 90 Degree Elbow | Weld x Thread | 304 Stainless Steel | $66.25 | | |||
| 1 1/2 | 90 Degree Elbow | Weld x Thread | 316 Stainless Steel | $73.53 | | |||
| 1 1/2 | 90 Degree Elbow | Weld | 304 Stainless Steel | $15.68 | | |||
| 1 1/2 | 90 Degree Elbow | Weld | 316 Stainless Steel | $19.18 | | |||
| 2 | 90 Degree Elbow | Weld x Bevel | 304 Stainless Steel | $86.51 | | |||
| 2 | 90 Degree Elbow | Weld x Bevel | 316 Stainless Steel | $139.33 | | |||
| 2 | 90 Degree Elbow | Weld x Clamp | 304 Stainless Steel | $40.36 | | |||
| 2 | 90 Degree Elbow | Weld x Clamp | 316 Stainless Steel | $57.45 | | |||
| 2 | 90 Degree Elbow | Weld x Thread | 304 Stainless Steel | $74.19 | | |||
| 2 | 90 Degree Elbow | Weld x Thread | 316 Stainless Steel | $82.47 | | |||
| 2 | 90 Degree Elbow | Weld | 304 Stainless Steel | $17.26 | | |||
| 2 | 90 Degree Elbow | Weld | 316 Stainless Steel | $25.55 | | |||
| 2 1/2 | 90 Degree Elbow | Weld x Bevel | 304 Stainless Steel | $130.72 | |
Product Info

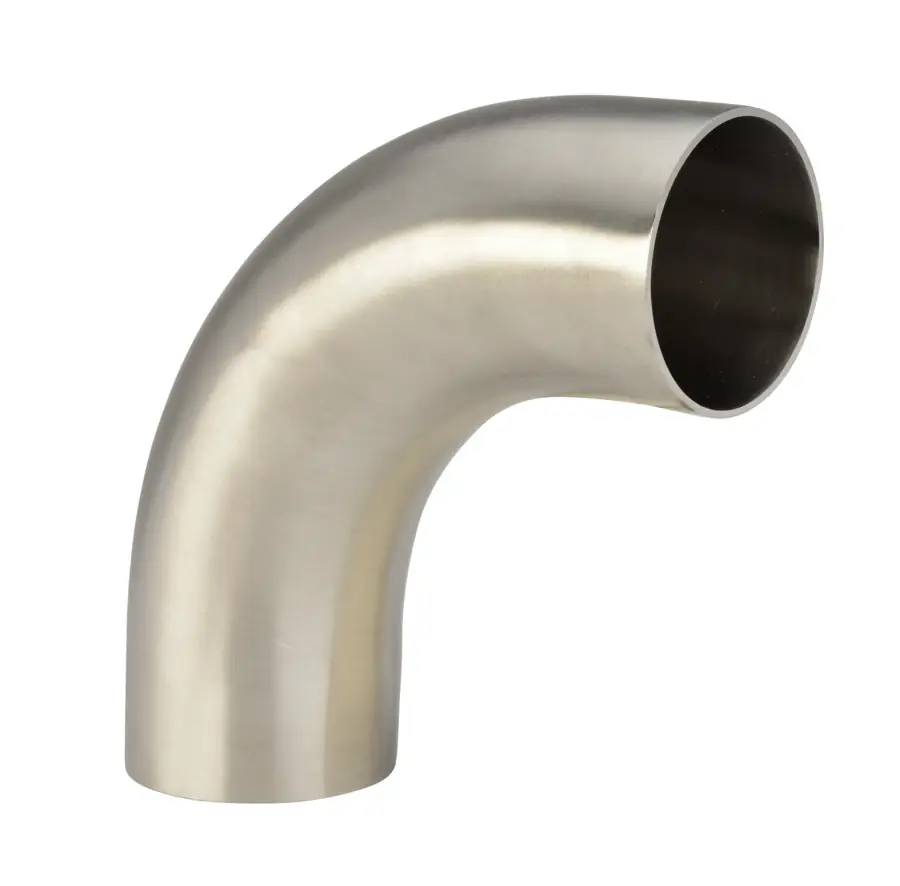

We house a huge inventory of sanitary weld fittings in 304 and 316L stainless steel. From caps and elbows to reducers and U bends, we have a complete inventory of stainless steel sanitary weld 90 degree elbows to meet your specifications. View our full line of stainless steel products.Dimensions
Dimensions in inches, from our sanitary weld data sheet. The column letters are the ones on the drawing.
Each chart uses its own drawing's letters: A is the weld end; on the weld × clamp, weld × bevel hex nut and weld × thread elbows, B is the other end.
Charts on this page: Weld · Weld × Clamp · Weld × Bevel Hex Nut · Weld × Thread
Weld
| Tube OD | A | D | Nom. Wall |
|---|---|---|---|
| 1" | 2.062 | 1.000 | 0.065 |
| 1-1/2" | 2.937 | 1.500 | 0.065 |
| 2" | 4.062 | 2.000 | 0.065 |
| 2-1/2" | 5.187 | 2.500 | 0.065 |
| 3" | 6.312 | 3.000 | 0.065 |
| 4" | 8.312 | 4.000 | 0.083 |
Weld × Clamp
| Tube OD | A | B | D | Nom. Wall |
|---|---|---|---|---|
| 1" | 2.062 | 2.562 | 1.000 | 0.065 |
| 1-1/2" | 2.935 | 3.437 | 1.500 | 0.065 |
| 2" | 4.062 | 4.562 | 2.000 | 0.065 |
| 2-1/2" | 5.187 | 5.687 | 2.500 | 0.065 |
| 3" | 6.312 | 6.812 | 3.000 | 0.065 |
| 4" | 8.312 | 8.937 | 4.000 | 0.083 |
| 6" | 9.000 | 9.875 | 6.000 | 0.109 |
Weld × Bevel Hex Nut
| Tube OD | A | B | D | Nom. Wall |
|---|---|---|---|---|
| 1" | 2.062 | 2.750 | 1.000 | 0.065 |
| 1-1/2" | 2.937 | 3.656 | 1.500 | 0.065 |
| 2" | 4.062 | 4.781 | 2.000 | 0.065 |
| 2-1/2" | 5.187 | 6.031 | 2.500 | 0.065 |
| 3" | 6.937 | 7.218 | 3.000 | 0.065 |
| 4" | 8.937 | 9.531 | 4.000 | 0.083 |
Weld × Thread
| Tube OD | A | B | D | Nom. Wall |
|---|---|---|---|---|
| 1" | 2.062 | 2.750 | 1.000 | 0.065 |
| 1-1/2" | 2.937 | 3.656 | 1.500 | 0.065 |
| 2" | 4.062 | 4.781 | 2.000 | 0.065 |
| 2-1/2" | 5.187 | 6.031 | 2.500 | 0.065 |
| 3" | 6.937 | 7.218 | 3.000 | 0.065 |
| 4" | 8.937 | 9.531 | 4.000 | 0.083 |
Standard Specifications
We offer stainless steel sanitary weld 90 degree elbows in a variety of sizes and specifications.Stainless Steel Grades
Review our stainless steel resource grade chart. It lists multiple functionality and applications of different grades of stainless steel.Reference Catalog
Our Reference Catalog is designed to identify our stainless sanitary products including our stainless steel sanitary weld 90 degree elbows. Specification charts and general dimensional illustrations aid in identifying products.Additional Info
Stainless sanitary weld fittings are applied on permanent installations where various process piping and equipment can be cleaned in place (CIP). Removal from the system is not required. The product table on this page lists sanitary weld 90° elbows with weld, weld × clamp, weld × bevel hex nut and weld × thread ends.Frequently Asked Questions
What sizes of sanitary weld 90 degree elbows do you carry?
The product table on this page lists 304 and 316L stainless steel sanitary weld 90 degree elbows with weld, weld × clamp, weld × bevel hex nut and weld × thread ends, from 1" to 4" (weld × clamp to 6"). For other sizes or alloys, call (800) 282-9694 or send us a message.
What is the difference between a 90° elbow and a 90° short elbow?
The short elbow is more compact: on our data sheet the A dimension of a 2" weld 90° elbow is 4.062", and of a 2" 90° short elbow 3.000". See our sanitary weld 90 degree short elbows.
Why does this page have four charts?
Our data sheet has a separate chart, with its own drawing, for each end connection of these 90° elbows. Each chart uses the letters on its own drawing.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
