150 lb Stainless Steel Cast Full Couplings
150 lb Stainless Steel Cast Full Couplings
The product table below lists 304 and 316 stainless steel 150 lb full couplings, threaded (NPT) from 1/8" to 4" and socket weld from 1/4" to 4". Dimension charts follow the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
Our high quality 150 lb stainless steel cast full couplings are corrosion resistant and are available in multiple sizes to fit your stainless pipe needs.Pressure: Class 150
End Connections: Threaded - Socket Weld
Alloys: Aluminum - Carbon - Stainless
Filter Products
Size | Product Type | Reducing | Pressure | End Type | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 1/4 | Full Coupling | 150# | Threaded | 316 Stainless | $16.87 | | |||
| 1 1/2 | Full Coupling | 150# | Socket Weld | 304 Stainless | $20.70 | | |||
| 1 1/2 | Full Coupling | 150# | Threaded | 304 Stainless | $18.24 | | |||
| 1 1/2 | Full Coupling | 150# | Socket Weld | 316 Stainless | $22.70 | | |||
| 1 1/2 | Full Coupling | 150# | Threaded | 316 Stainless | $20.01 | | |||
| 2 | Full Coupling | 150# | Threaded | 316 Stainless | $28.18 | | |||
| 2 | Full Coupling | 150# | Socket Weld | 304 Stainless | $29.17 | | |||
| 2 | Full Coupling | 150# | Socket Weld | 316 Stainless | $31.99 | | |||
| 2 | Full Coupling | 150# | Threaded | 304 Stainless | $25.76 | | |||
| 2 1/2 | Full Coupling | 150# | Socket Weld | 316 Stainless | $75.16 | | |||
| 2 1/2 | Full Coupling | 150# | Threaded | 304 Stainless | $56.44 | | |||
| 2 1/2 | Full Coupling | 150# | Threaded | 316 Stainless | $66.23 | | |||
| 2 1/2 | Full Coupling | 150# | Socket Weld | 304 Stainless | $64.04 | | |||
| 3 | Full Coupling | 150# | Threaded | 316 Stainless | $85.59 | | |||
| 3 | Full Coupling | 150# | Socket Weld | 304 Stainless | $82.79 | | |||
| 3 | Full Coupling | 150# | Socket Weld | 316 Stainless | $97.08 | | |||
| 3 | Full Coupling | 150# | Threaded | 304 Stainless | $72.99 | | |||
| 4 | Full Coupling | 150# | Socket Weld | 316 Stainless | $149.88 | | |||
| 4 | Full Coupling | 150# | Threaded | 304 Stainless | $113.46 | | |||
| 4 | Full Coupling | 150# | Socket Weld | 304 Stainless | $128.68 | | |||
| 4 | Full Coupling | 150# | Threaded | 316 Stainless | $132.16 | |
Product Info
Our 304 and 316 150 lb stainless steel cast couplings are available in a variety of sizes to fit any piping configuration. We supply 150 lb half cast couplings and 150 lb full cast couplings. Our inventory includes: threaded full couplings, threaded half couplings, threaded reducing couplings, socket weld full couplings, socket weld half couplings and socket weld reducing couplings. We can accommodate any need with our wide-ranging and hard to find sizes. Good corrosion resistance for many applications for many industries. View our stainless steel products line card.Dimensions

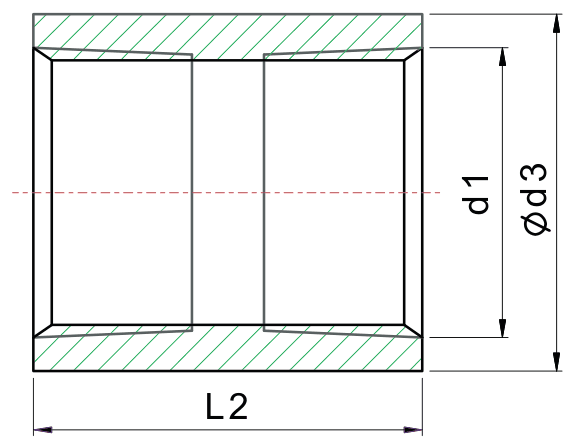

Dimensions in inches, from our data sheet. The column letters are the ones on the drawing.
The chart lists every size on our data sheet; 5" and 6" are not in the product table. Call us for availability.
Threaded (NPT) items
| Size | d1 | d3 | L2 |
|---|---|---|---|
| 1/8" | 1/8" | 0.55 | 0.79 |
| 1/4" | 1/4" | 0.73 | 1.06 |
| 3/8" | 3/8" | 0.85 | 1.10 |
| 1/2" | 1/2" | 1.04 | 1.42 |
| 3/4" | 3/4" | 1.26 | 1.54 |
| 1" | 1" | 1.56 | 1.69 |
| 1-1/4" | 1-1/4" | 1.91 | 1.89 |
| 1-1/2" | 1-1/2" | 2.15 | 1.89 |
| 2" | 2" | 2.62 | 2.20 |
| 2-1/2" | 2-1/2" | 3.31 | 2.56 |
| 3" | 3" | 3.94 | 2.80 |
| 4" | 4" | 5.08 | 3.27 |
| 5" | 5" | 6.36 | 3.54 |
| 6" | 6" | 7.28 | 3.96 |

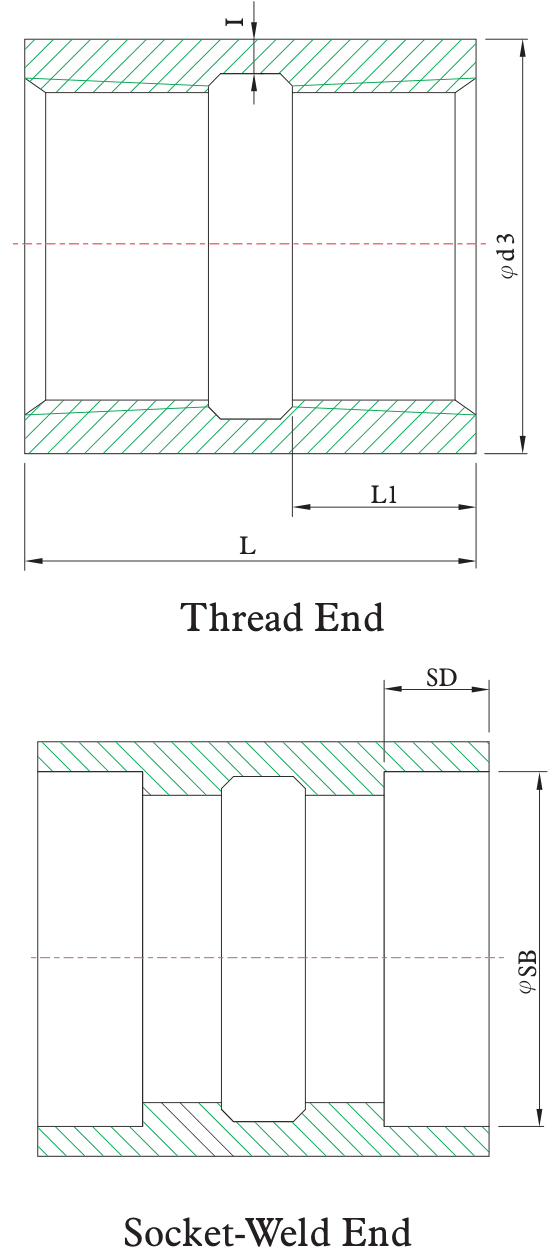

Socket weld items: dimensions from our heavy pattern (MSS SP-114) data sheet
Each socket weld item's product page links our heavy pattern (MSS SP-114) data sheet, so that sheet's chart is shown here. Socket weld items are sold from 1/4"; the sheet also lists 1/8". This chart uses its own drawing's letters, so a letter can stand for a different dimension than in the threaded chart. SB and SD are on the socket weld end drawing; the other letters are on the thread end drawing.
| Size | d3 | I | L | L1 | SB | SD |
|---|---|---|---|---|---|---|
| 1/8" | 0.75 | 0.09 | 1.00 | 0.25 | 0.43 | 0.39 |
| 1/4" | 0.84 | 0.09 | 1.00 | 0.32 | 0.56 | 0.39 |
| 3/8" | 1.01 | 0.10 | 1.12 | 0.36 | 0.69 | 0.39 |
| 1/2" | 1.20 | 0.10 | 1.38 | 0.43 | 0.85 | 0.39 |
| 3/4" | 1.46 | 0.12 | 1.50 | 0.50 | 1.07 | 0.51 |
| 1" | 1.77 | 0.13 | 1.62 | 0.58 | 1.33 | 0.51 |
| 1-1/4" | 2.15 | 0.14 | 2.00 | 0.67 | 1.68 | 0.51 |
| 1-1/2" | 2.43 | 0.15 | 2.12 | 0.70 | 1.92 | 0.51 |
| 2" | 2.96 | 0.17 | 2.50 | 0.75 | 2.41 | 0.63 |
| 2-1/2" | 3.31 | 0.21 | 2.87 | 0.92 | 2.91 | 0.63 |
| 3" | 4.00 | 0.23 | 3.22 | 0.98 | 3.54 | 0.63 |
| 4" | 5.06 | 0.26 | 3.66 | 1.08 | 4.55 | 0.75 |
Standard Specifications
Couplings generally conform to ASA B16.3 and pipe threads conform to ASA B2.1 standard for manufacturing. View the standard specifications chart.Stainless Steel Grades
SS couplings available from Shaw Stainless. View the various grades of stainless steel.Reference Catalog
View thousands of stainless steel pipe and tubing products and various services Shaw offers. This Reference Catalog identifies stainless steel pipe couplings and other pipe fittings through specification charts and illustrations.Additional Info
A coupling connects two pieces of pipe together. 150 lb cast couplings can come threaded or socket weld. If the two pipes being connected are not the same size, one would use a cast reducing coupling. Couplings are one of the most common pipe fittings and available in a variety of different alloys.Frequently Asked Questions
What sizes of 150 lb full couplings do you carry?
The product table on this page lists 304 and 316 stainless steel 150 lb full couplings: threaded (NPT) from 1/8" to 4" and socket weld from 1/4" to 4". For other sizes or alloys, call (800) 282-9694 or send us a message.
How long is a threaded full coupling?
Column L2 in the threaded chart is the overall length. A 1" threaded full coupling measures 1.69" and a 2" one measures 2.20".
What is the difference between a full coupling and a reducing coupling?
A full coupling connects two pipes of the same size. If the two pipes are not the same size, a reducing coupling is used. See our reducing couplings and half couplings.
Why does this page have two charts?
Threaded and socket weld full couplings have different data sheets. Each threaded item's product page links our 150 lb threaded (NPT) data sheet, shown in the first chart; each socket weld item's product page links our heavy pattern (MSS SP-114) data sheet, shown in the second chart. Each chart uses the letters of its own drawing.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
