150 lb Stainless Steel Cast 45 Degree Elbows
150 lb Stainless Steel Cast 45 Degree Elbows
The product table below lists 304 and 316 stainless steel 150 lb cast 45 degree elbows, threaded (NPT) from 1/8" to 4" and socket weld from 1/4" to 4". Dimension charts follow the table.
Get a price: the product table below lists prices; for a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
We house a very large inventory of 150 lb stainless steel cast 45 degree elbows. Our stainless steel cast pipe elbows are of high quality and offer great resistance to corrosion.Pressure: Class 150
End Connections: Threaded - Socket Weld
Alloys: Aluminum - Carbon - Stainless
Filter Products
Size | Product Type | Reducing | Pressure | End Type | Grade | Price | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 1/4 | 45 Degree Elbow | 150# | Threaded | 316 Stainless | $15.46 | | |||
| 1 1/2 | 45 Degree Elbow | 150# | Socket Weld | 304 Stainless | $21.65 | | |||
| 1 1/2 | 45 Degree Elbow | 150# | Threaded | 304 Stainless | $16.67 | | |||
| 1 1/2 | 45 Degree Elbow | 150# | Socket Weld | 316 Stainless | $24.61 | | |||
| 1 1/2 | 45 Degree Elbow | 150# | Threaded | 316 Stainless | $18.37 | | |||
| 2 | 45 Degree Elbow | 150# | Threaded | 316 Stainless | $25.71 | | |||
| 2 | 45 Degree Elbow | 150# | Socket Weld | 304 Stainless | $30.50 | | |||
| 2 | 45 Degree Elbow | 150# | Socket Weld | 316 Stainless | $34.43 | | |||
| 2 | 45 Degree Elbow | 150# | Threaded | 304 Stainless | $23.44 | | |||
| 2 1/2 | 45 Degree Elbow | 150# | Socket Weld | 316 Stainless | $90.19 | | |||
| 2 1/2 | 45 Degree Elbow | 150# | Threaded | 304 Stainless | $64.44 | | |||
| 2 1/2 | 45 Degree Elbow | 150# | Threaded | 316 Stainless | $67.33 | | |||
| 2 1/2 | 45 Degree Elbow | 150# | Socket Weld | 304 Stainless | $83.87 | | |||
| 3 | 45 Degree Elbow | 150# | Threaded | 316 Stainless | $97.13 | | |||
| 3 | 45 Degree Elbow | 150# | Socket Weld | 304 Stainless | $115.59 | | |||
| 3 | 45 Degree Elbow | 150# | Socket Weld | 316 Stainless | $130.23 | | |||
| 3 | 45 Degree Elbow | 150# | Threaded | 304 Stainless | $88.79 | | |||
| 4 | 45 Degree Elbow | 150# | Socket Weld | 316 Stainless | $245.19 | | |||
| 4 | 45 Degree Elbow | 150# | Threaded | 304 Stainless | $158.06 | | |||
| 4 | 45 Degree Elbow | 150# | Socket Weld | 304 Stainless | $205.66 | | |||
| 4 | 45 Degree Elbow | 150# | Threaded | 316 Stainless | $182.97 | |
Product Info
Our 150 lb stainless steel cast 45 degree elbows come in a variety of sizes to meet almost any stainless steel piping configuration. Our high quality SS 150 lb cast elbows meet the highest standards. We inventory a variety of stainless steel cast elbows. View our stainless products line card.Dimensions

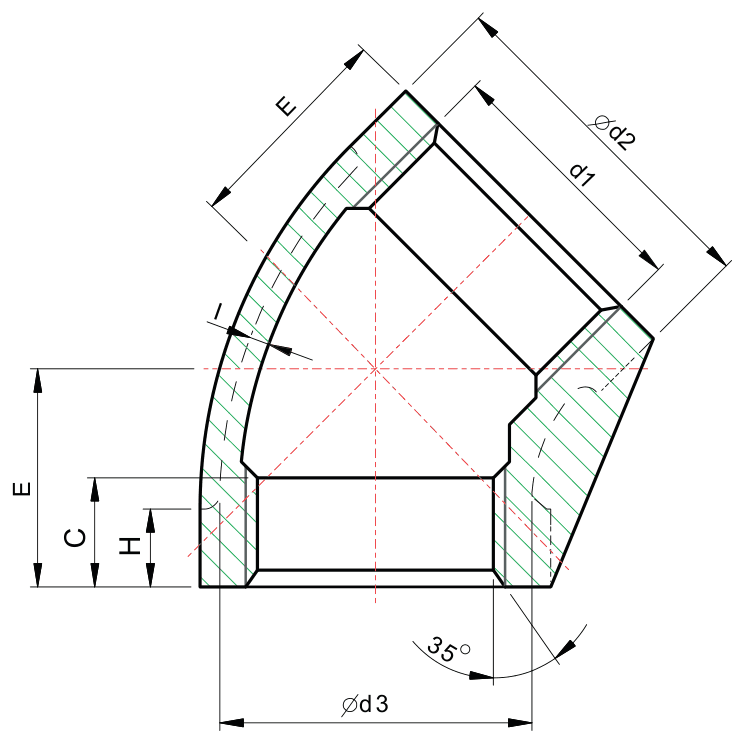

Dimensions in inches, from our data sheet. The column letters are the ones on the drawing.
† We are confirming this value; call us for it.
Threaded (NPT) items
| Size | d1 | d2 | d3 | C | E | H | I |
|---|---|---|---|---|---|---|---|
| 1/8" | 1/8" | 0.63 | 0.53 | 0.28 | 0.63 | 0.24 | 0.08 |
| 1/4" | 1/4" | 0.75 | 0.61 | 0.37 | 0.67 | 0.26 | 0.08 |
| 3/8" | 3/8" | 0.89 | 0.77 | 0.38 | 0.75 | 0.24 | 0.08 |
| 1/2" | 1/2" | 1.18 | 1.10 | 0.39 | 0.83 | 0.31 | 0.10 |
| 3/4" | 3/4" | 1.42 | 1.34 | 0.43 | 0.94 | 0.39 | 0.10 |
| 1" | 1" | 1.77 | 1.57 | 0.55 | 1.10 | 0.39 | 0.10 |
| 1-1/4" | 1-1/4" | 2.22 | 1.91 | 0.61 | 1.30 | 0.43 | 0.10 |
| 1-1/2" | 1-1/2" | 2.30 | 2.20 | 0.61 | 1.42 | 0.49 | 0.10 |
| 2" | 2" | 2.83 | 2.68 | 0.65 | 1.65 | 0.51 | 0.10 |
| 2-1/2" | 2-1/2" | 3.54 | 3.43 | 0.87 | 1.93 | 0.55 | 0.16 |
| 3" | 3" | 4.17 | 4.00 | 0.98 | 2.13 | 0.59 | 0.16 |
| 4" | 4" | 6.24 | † | 0.98 | 2.56 | 0.59 | 0.16 |
Socket weld items: dimensions from our heavy pattern (MSS SP-114) data sheet

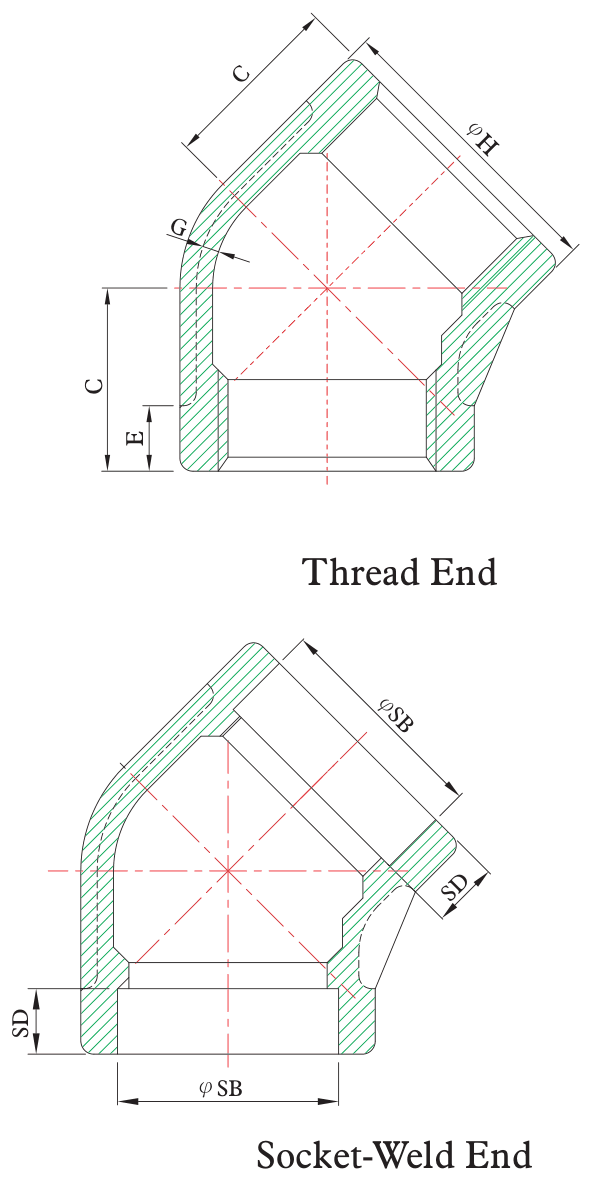

Each socket weld item's product page links our heavy pattern (MSS SP-114) data sheet, so that sheet's chart is shown here. Socket weld items are sold from 1/4"; the sheet also lists 1/8". This chart uses its own drawing's letters, so a letter can stand for a different dimension than in the threaded chart. SB and SD are on the socket weld end drawing; the other letters are on the thread end drawing.
| Size | C | E | G | H | SB | SD |
|---|---|---|---|---|---|---|
| 1/8" | 0.69 | 0.20 | 0.09 | 0.75 | 0.43 | 0.39 |
| 1/4" | 0.69 | 0.20 | 0.09 | 0.84 | 0.56 | 0.39 |
| 3/8" | 0.81 | 0.21 | 0.10 | 1.01 | 0.69 | 0.39 |
| 1/2" | 0.87 | 0.25 | 0.10 | 1.20 | 0.85 | 0.39 |
| 3/4" | 1.00 | 0.27 | 0.12 | 1.46 | 1.07 | 0.51 |
| 1" | 1.12 | 0.30 | 0.13 | 1.77 | 1.33 | 0.51 |
| 1-1/4" | 1.31 | 0.34 | 0.14 | 2.15 | 1.68 | 0.51 |
| 1-1/2" | 1.43 | 0.37 | 0.15 | 2.43 | 1.92 | 0.51 |
| 2" | 1.68 | 0.42 | 0.17 | 2.96 | 2.41 | 0.63 |
| 2-1/2" | 1.93 | 0.48 | 0.21 | 3.31 | 2.91 | 0.63 |
| 3" | 2.18 | 0.55 | 0.23 | 4.00 | 3.54 | 0.63 |
| 4" | 2.62 | 0.66 | 0.26 | 5.06 | 4.55 | 0.75 |
Standard Specifications
150lb cast elbows generally conform to ASA B16.3 and pipe threads conform to ASA B2.1 standard for manufacturing. View the standard specifications chart.Stainless Steel Grades
View stainless steel grades of 150lb cast elbows available from Shaw Stainless. Review the functionality and application of various grades of stainless steel.Reference Catalog
We designed a resourceful tool to help identify the many different products and services we offer. This Reference Catalog will identify stainless steel 150lb cast elbows and other pipe fittings through specification charts and illustrations.Additional Info
A 150 lb stainless steel cast elbow is a fitting that attaches two pieces of pipe or tube to allow a change in direction of the piping system. 150lb cast elbows are offered in various degrees of angles. The most common angles are 45 and 90 degree elbows. Stainless steel cast elbows are manufactured by heating stainless steel to a molten/liquid state and pouring the metal into a form that creates the desired shape.Frequently Asked Questions
What sizes of 150 lb cast 45 degree elbows do you carry?
The product table on this page lists 304 and 316 stainless steel 150 lb cast 45° elbows: threaded (NPT) from 1/8" to 4" and socket weld from 1/4" to 4". For other sizes or alloys, call (800) 282-9694 or send us a message.
What is the center-to-end dimension of a 45 degree elbow?
It is E in the threaded chart: the distance from the center of the elbow to the face of each end. A 1" threaded 45° elbow measures 1.10" and a 2" 45° elbow measures 1.65".
Why does this page have two charts?
Threaded and socket weld 45° elbows have different data sheets. Each threaded item's product page links our 150 lb threaded (NPT) data sheet, shown in the first chart; each socket weld item's product page links our heavy pattern (MSS SP-114) data sheet, shown in the second chart. Each chart uses the letters of its own drawing.
How do I get a price?
Prices are listed in the product table on this page. For a size, end connection or alloy that is not listed, call (800) 282-9694 or send us a message.
